2.7 Straight Compressoin Plate Type II
- High-quality 2.7 Straight Compression Plate Type II
- Available in multiple configurations (6 to 12 holes)
- Made from durable medical-grade materials
- Designed for optimal support in orthopedic applications
- Precise thickness, width, and length specifications (2.5mm thickness)
- Ideal for stabilizing bone fractures and surgical procedures
- Easy to install with pre-drilled holes for screws
- Enhanced compatibility with various surgical instruments
- Lightweight design for minimal impact on healing
- CE certified for safety and efficacy in medical use
- SKU
- AF0172706
- Brand
- Orthoprovet
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

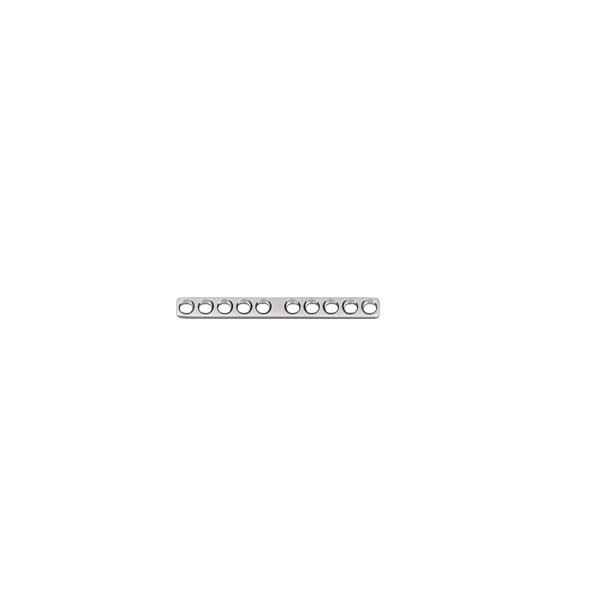

2.7 Straight Compression Plate Type II
High-quality medical-grade compression plate designed for optimal bone fracture stabilization and surgical support. Available in multiple configurations from 6 to 12 holes with precise dimensional specifications. CE certified and engineered for enhanced compatibility with standard surgical instruments.
Clinical overview
The 2.7 Straight Compression Plate Type II is a precision-engineered orthopedic fixation device designed to provide reliable stabilization of bone fractures across a range of surgical applications. The plate's straight design and multiple hole configurations (6 to 12 holes) enable surgeons to select the optimal length for each patient's anatomical requirements, ensuring secure fixation with minimal soft tissue disruption.
Manufactured from durable medical-grade stainless steel with a consistent 2.5 mm thickness and 8 mm width, this plate delivers superior load-bearing capacity while maintaining a lightweight profile that minimizes impact on the healing process. Pre-drilled screw holes ensure precise alignment and rapid surgical placement, reducing operative time and enhancing patient outcomes.
Key features & surgeon benefits
Multiple configurations for precise fit
- Six distinct hole counts (6–12 holes) accommodate varying fracture lengths
- Precise dimensional specifications ensure optimal plate-to-bone contact
- Easy selection of appropriate length for individual patient anatomy
Streamlined placement and fixation
- Pre-drilled screw holes eliminate intraoperative drilling and reduce operative time
- Enhanced compatibility with standard orthopedic surgical instruments
- Intuitive design facilitates rapid positioning and secure fixation
Durability and biocompatibility
- Medical-grade stainless steel resists corrosion and maintains structural integrity
- Lightweight design minimizes load on healing bone while providing robust support
- CE certified for safety and efficacy in clinical use
Tailored solutions available
- OEM configurations and custom specifications upon request
- Flexible ordering options to match institutional protocols
- Technical support team available for bespoke surgical requirements
Technical specifications
| Indications | Bone fracture stabilization, orthopedic fixation, surgical support |
|---|---|
| Sizes / range | 6, 7, 8, 9, 10, and 12 hole configurations |
| Material | Medical-grade stainless steel |
| Plate thickness | 2.5 mm |
| Plate width | 8 mm |
| Sterilisation | As applicable |
| Certification | CE certified |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| REF No. | Configuration | Thickness / Width / Length (mm) |
|---|---|---|
| AF0172706 | 6 holes | 2.5 / 8 / 53 |
| AF0172707 | 7 holes | 2.5 / 8 / 61 |
| AF0172708 | 8 holes | 2.5 / 8 / 69 |
| AF0172709 | 9 holes | 2.5 / 8 / 77 |
| AF0172710 | 10 holes | 2.5 / 8 / 85 |
| AF0172712 | 12 holes | 2.5 / 8 / 101 |
Get in touch for pricing & availability
Contact our sales and technical team to discuss your orthopedic fixation requirements, request pricing, or explore custom configurations tailored to your surgical protocols.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
