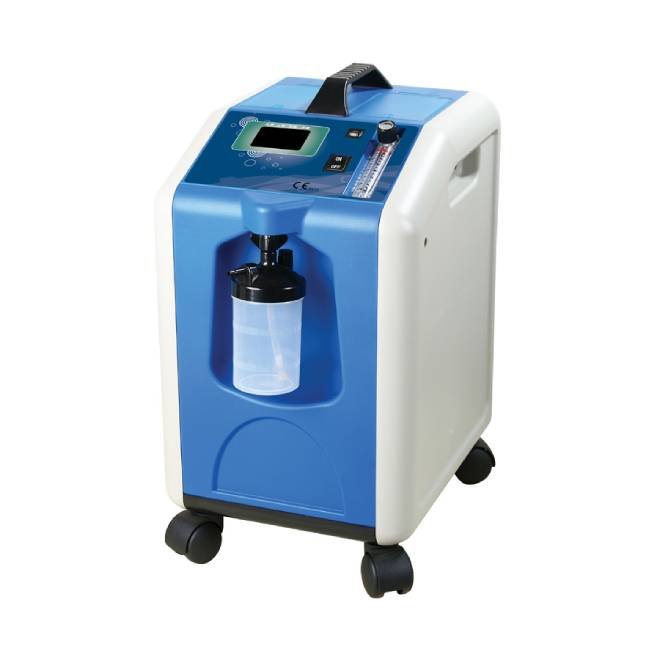

3L 5L 8L 10L Medical Oxygen Concentrator Machine NEUJY16
$1,990.00$2,290.00 (-13%)
– Available in 3L, 5L, 8L, and 10L models
– Oxygen purity of 93% ±3%
– Compact machine dimensions: 400*300*510mm
– Lightweight design: NW ranges from 14.8kg to 20.5kg
– Low noise operation: <45dBA to <48dBA
– Adjustable pressure settings: 40~60kPa or 60~85kPa
– Power consumption: ranges from 300W to 650W
– Voltage: Standard 220V/50HZ
– Includes protective carton dimension: 480*380*620mm
– Durable and reliable for home or medical use
3L 5L 8L 10L Medical Oxygen Concentrator Machine NEUJY16
Reliable, compact oxygen concentrator available in four flow rates for home and clinical use. Delivers 93% oxygen purity with adjustable pressure settings, low noise operation, and energy-efficient performance across all models.
Clinical overview
The NEUJY16 oxygen concentrator is a stationary, electrically powered device designed to deliver therapeutic oxygen to patients with chronic respiratory conditions, hypoxemia, or acute oxygen supplementation needs. The machine concentrates ambient air to produce oxygen at 93% ±3% purity, meeting clinical standards for home and facility-based oxygen therapy. Available in four flow-rate models (3L, 5L, 8L, 10L per minute), the NEUJY16 accommodates diverse patient acuity levels and clinical settings.
The compact footprint (400×300×510 mm) and lightweight construction (14.8–20.5 kg) enable flexible placement in bedrooms, living areas, or clinical spaces. Adjustable pressure settings (40–60 kPa or 60–85 kPa depending on model) allow clinicians to tailor oxygen delivery to individual patient requirements. Low noise operation (<45–48 dBA) minimises disruption during continuous or nocturnal use, while energy-efficient power consumption (300–650 W) reduces operational costs over extended therapy periods.
Key features & clinician benefits
Consistent High-Purity Output
- 93% ±3% oxygen purity across all models
- Adjustable pressure: 40–60 kPa or 60–85 kPa
- Reliable performance for continuous or intermittent therapy
Compact & Quiet Operation
- Minimal footprint: 400×300×510 mm
- Low noise: <45–48 dBA for patient comfort
- Easy placement in home or clinical environments
Energy Efficient & Cost-Effective
- Power consumption: 300–650 W (model dependent)
- Lightweight: 14.8–20.5 kg net weight
- Durable design reduces long-term maintenance costs
Multi-Capacity Configuration
- Four flow-rate options: 3L, 5L, 8L, 10L per minute
- Standard 220V/50Hz operation
- Customisation available for specific clinical protocols
Technical specifications
| Indications | Chronic respiratory conditions, hypoxemia, oxygen supplementation therapy, home and clinical oxygen delivery |
|---|---|
| Oxygen purity | 93% ±3% |
| Flow rates available | 3L, 5L, 8L, 10L per minute |
| Machine dimensions | 400×300×510 mm (all models) |
| Carton dimensions | 480×380×620 mm |
| Net weight (NW) | 14.8 kg (3L), 19.5 kg (5L/8L), 20.5 kg (10L) |
| Gross weight (GW) | 17 kg (3L), 23 kg (5L/8L), 23.5 kg (10L) |
| Voltage | 220V / 50Hz |
| Noise level | <45 dBA (3L), <48 dBA (5L/8L/10L) |
| Pressure settings | 40–60 kPa (3L) or 60–85 kPa (5L/8L/10L) |
| Power consumption | 300 W (3L), 480 W (5L/8L), 650 W (10L) average |
| Material | Medical-grade plastic and metal |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Oxygen Concentrator Unit | NEUJY16 main device with integrated compressor and oxygen separation module | 1 |
| Power cord | 220V/50Hz mains cable with plug | 1 |
| Oxygen outlet tubing | Standard medical-grade delivery tubing | 1 |
| Humidifier bottle | Optional water bottle for oxygen humidification | 1 |
| User manual | Operating and maintenance instructions | 1 |
| Protective carton | Shipping and storage packaging (480×380×620 mm) | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss flow-rate selection, clinical requirements, and delivery timelines. We offer volume pricing and customisation options for healthcare facilities and distributors.
