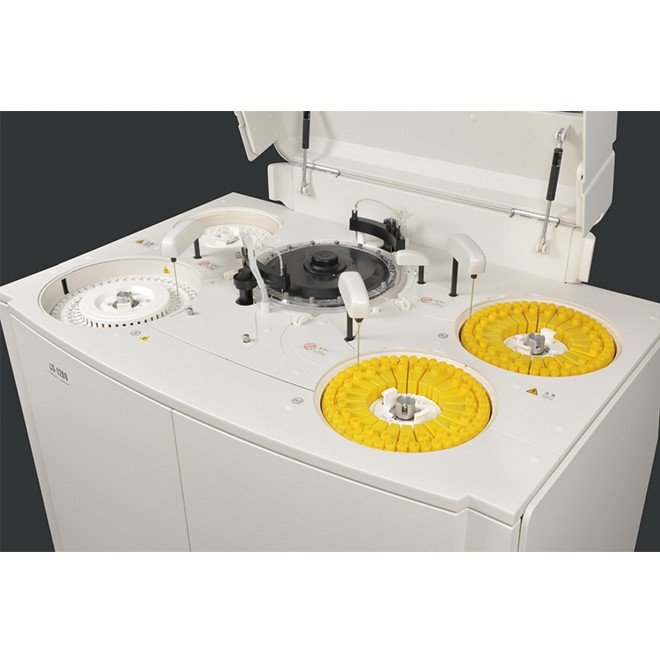

Auto-Chemistry Analyzers CS-1200
$87,000.00
– Advanced post position semi-conductor for efficient heat management
– Automatic liquid level detection for optimal probe depth
– 8 stops and 12 stops rinsing with warm water for thorough cleaning
– Long-life halogen light source with minimal signal attenuation
– Random access, fully automatic, discrete system design
– High throughput rates: 800 tests/hour for colorimetric, 400 tests/hour for ISE
– Multiple analysis methods: end-point, kinetics, and fixed-time
– Dual independent mixers for sufficient reaction mixing
– Comprehensive temperature control with precise incubation at 37°C
– Up to 140 sample positions and support for multiple sample tubes and cups
Specifications
Features of Auto-Chemistry Analyzer CS-1200:
1.Advanced post position semi-conductor helps direct heat releasing, disks water cooling to ensure stable temperature and easy maintenance.
2.Automatic liquid level detection ensures the probes enter the liquid at a perfect depth, reduces liquid suspension.
3.8 stops 12 stops rinsing by warm water ensures complete cleaning.
4.Light source with best position design, no signal attenuation, strong anti-interference.
Specification of Auto-Chemistry Analyzer CS-1200:
System type: Random access, fully automatic, discrete, STAT priority
Throughput: Constant speed 800T/H for colorimetric test, 400T/H for ISE
Light source: long life halogen lamp
Wavelength: 340-800nm, 12 wavelengths
Analysis Method End-point, kinetics, fixed-time, etc.
Calibration Method 1-point method. 2-point method, multiple point linear method, non-linear method
Probe: independent sample probes, reagent probes, automatic liquid level detection, probe liquid level tracing and clot detection function
Rinsing mechanism: probe inner wall high pressure rinsing
Mixing mechanism: 2 independent mixers ensure sufficient reaction
Reaction Cuvette 160 new type reaction cuvette
Temperature control: The temperature of reaction disk incubation bath is 37 C+0.1C
Sample Tube 140 sample positions, supporting multiple tubes and sample cups
Reagent position 2 compartments, 132 reagent positions and 2 detergent positions in total, with continuous refrigeration; supporting at most 4 kinds of reagents test function
Sample volume: 5ul-35ul. 0. 1ul increment
Reagent Volume 15ul-350ul. 1ul increment
Reaction volume: minimum reaction volume 120 ul
