Automatic Uncap Centrifuge NEUHC38
- Model: Automatic Uncap Centrifuge NEUHC38
- Max Speed: 4000 RPM for efficient sample processing
- Three swing rotors: Accommodates 96, 124, and 148 tubes (5/7 ml)
- RCF: 3840×g for enhanced separation
- Microprocessor-controlled AC frequency motor for precision
- Timer range: 0 to 99 minutes for flexible operation
- Noise level: ≤65 dB(A) ensuring a quiet working environment
- Power Supply: AC220V & 110V, 50-60Hz, 5A compatibility
- Dimensions: 800×600×820 mm (L×W×H)
- Weight: 120 kg (standard), 150 kg (refrigerated function)
- SKU
- NEUHC38
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

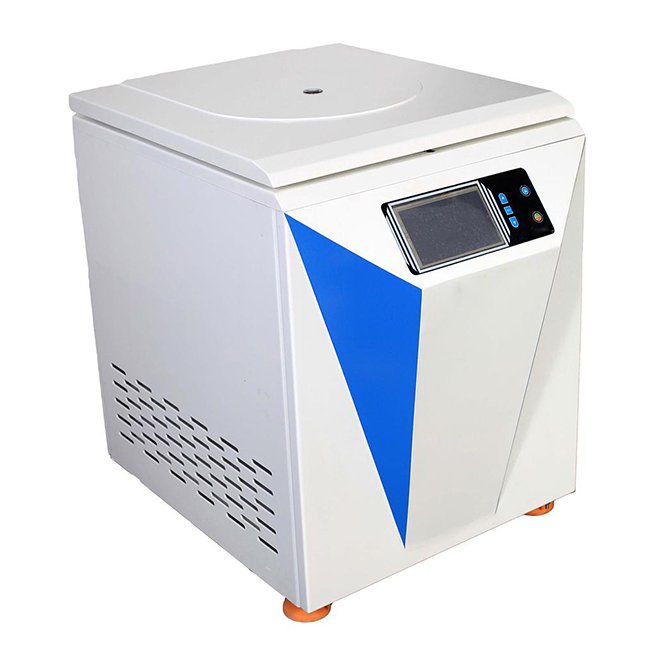

Automatic Uncap Centrifuge NEUHC38
High-speed, microprocessor-controlled centrifuge designed for efficient sample separation in clinical and diagnostic laboratories. Accommodates multiple rotor configurations with automatic uncapping capability for streamlined workflow and enhanced safety.
Clinical overview
The NEUHC38 is a precision laboratory centrifuge engineered for high-throughput sample processing in clinical, diagnostic, and research environments. With a maximum speed of 4000 RPM and relative centrifugal force (RCF) of 3840×g, it delivers reliable and rapid separation of serum, plasma, and other biological specimens. The microprocessor-controlled AC frequency motor ensures consistent performance and precise timing control (0–99 minutes), while the automatic uncapping feature enhances operator safety and reduces cross-contamination risk.
Three interchangeable swing rotors accommodate 96, 124, or 148 tubes (5/7 ml capacity), allowing flexible configuration for varying laboratory workloads. Quiet operation (≤65 dB(A)) and compact dimensions (800×600×820 mm) make it suitable for space-constrained laboratory settings. Available in standard and refrigerated variants to meet diverse clinical requirements.
Key features & surgeon benefits

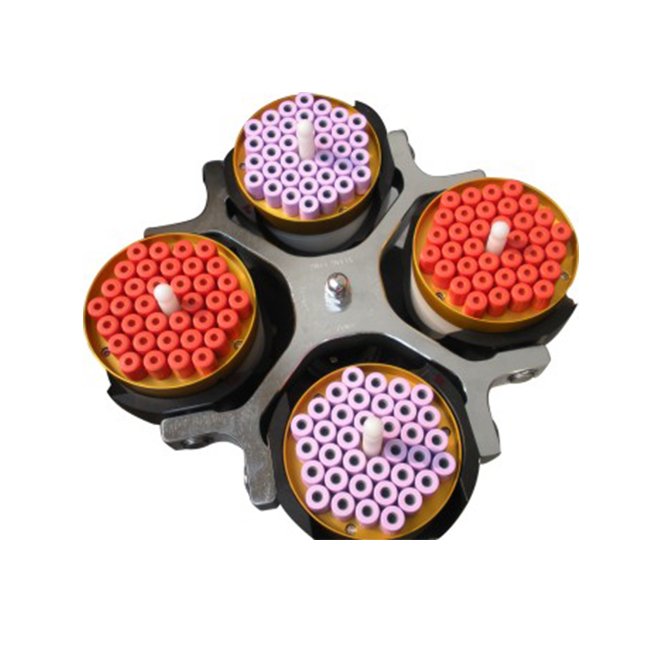

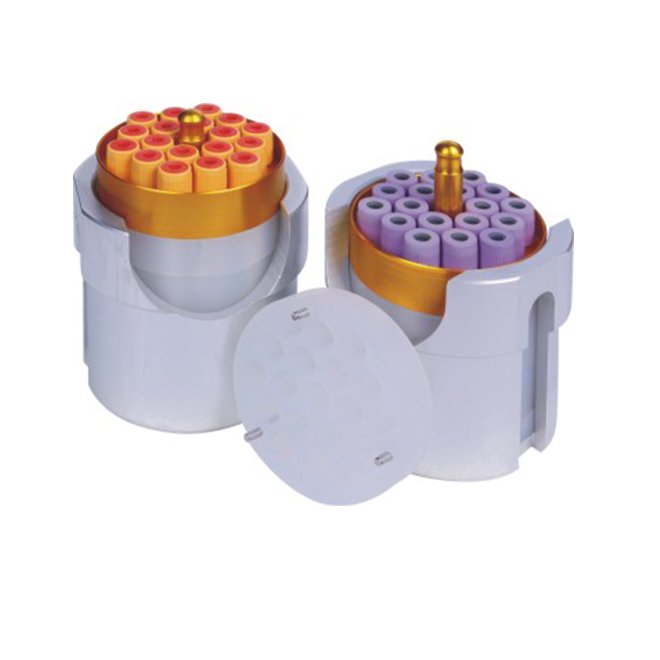

Multi-Rotor Configuration
- Three swing rotors: 96, 124, and 148 tube capacity
- 5/7 ml tube compatibility for standard clinical samples
- Quick-change rotor design for flexible workflow
High-Speed Separation
- 4000 RPM maximum speed for efficient processing
- 3840×g RCF for optimal sample separation
- Microprocessor control ensures precision and repeatability
Automatic Uncap Technology
- Automatic tube uncapping reduces manual handling
- Minimizes aerosol generation and contamination risk
- Improves operator safety and laboratory efficiency
User-Friendly Control
- Flexible timer range: 0–99 minutes
- Quiet operation at ≤65 dB(A)
- Dual voltage supply: AC 220V & 110V, 50–60 Hz
Technical specifications
| Model | NEUHC38 |
|---|---|
| Maximum Speed | 4000 RPM |
| Relative Centrifugal Force (RCF) | 3840×g |
| Rotor Options | Swing Rotor No. 1: 96×5/7 ml | Swing Rotor No. 2: 124×5/7 ml | Swing Rotor No. 3: 148×5/7 ml |
| Motor Type | Microprocessor-controlled AC frequency motor |
| Timer Range | 0–99 minutes |
| Noise Level | ≤65 dB(A) |
| Power Supply | AC 220V & 110V, 50–60 Hz, 5A |
| Dimensions | 800×600×820 mm (L×W×H) |
| Weight | 120 kg (standard) | 150 kg (refrigerated function) |
| Sterilisation | As applicable |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Automatic Uncap Centrifuge NEUHC38 with microprocessor control | 1 |
| Swing Rotor No. 1 | 96-tube rotor (5/7 ml capacity) | 1 |
| Swing Rotor No. 2 | 124-tube rotor (5/7 ml capacity) | 1 |
| Swing Rotor No. 3 | 148-tube rotor (5/7 ml capacity) | 1 |
| Power Cord | AC power supply cable (dual voltage compatible) | 1 |
| User Manual | Operation and maintenance documentation | 1 |
