BC-6800 Auto Hematology Analyzer with SF Cube Technology for Advanced Blood Cell Analysis
Neuvar

BC-6800 Auto Hematology Analyzer with SF Cube Technology for Advanced Blood Cell Analysis

- Auto Hematology Analyzer: BC-6800 offers reliable CBC plus 5-part differential WBC testing with high processing speed. - Advanced SF Cube Technology: Employs 3D analysis for precise blood cell identification and differentiation. - Expanded Clinical Applications: Supports additional parameters like immature granulocytes and high fluorescent cell counts for enhanced diagnostics. - Minimized Interference: Innovative methods ensure accuracy by correcting WBC counts in the presence of NRBCs and other interferences. - High Automation: Achieves throughput of 125 tests/hour with capacity for 100 sample tubes, reducing lab workload significantly. - Customizable Features: Allows labs to define re-exam criteria tailored to their specific practices.
SKU
84D05822CF80
Brand
Neuvar
Availability
In stock
  • ✓ Warranty included
  • ✓ Worldwide shipping
Tags
Share

Compare with similar items

Clinical overview

Product overview

Auto Hematology Analyzer

BC-6800

Exclusive Technology, Inclusive Approach
Today, laboratories not only need more reliable routine CBC plus 5-part diff WBC testing by way of high processing speed, but are also looking for options that extend the analyzer's output in form of Reticulocytes, Nucleated RBCs, Fluorescent Platelet counts etc. for wider clinical application and research. On the other hand, they are restricted by limited budgets. BC-6800 can help to meet all these needs just perfectly and even exceed the expectations.
  • SF Cube Technology
    SF Cube is a pathbreaking technology for reliable blood cell analysis, including WBC differential, Reticulocytes and NRBC with efficient flagging. After reaction with proprietory reagents, the targeted blood cells undergo 3D analysis using information from scatter of laser light at two angles and fluorescence signals. The 3D scattergram builds the power to better identify and differentiate blood cell populations, especially to reveal abnormal cell population undetected by other techniques.
  • Additional parameters for further clinical applications
    • IMG(#,%) parameters provide information about immature granulocyte, including promyelocytes, myelocytes and metamyelocytes.
    • HFC*(#,%) parameters represent high fluorescent cell population, such as blasts and atypical lymphocytes.
    • RET(#,%) extend valuable help in the differential diagnosis and/or therapeutic monitoring of anemias.
    • IRF is parameter concerning immature reticulocytes, which can assist in early diagnosis of anemia and monitoring the bone marrow response to therapy.

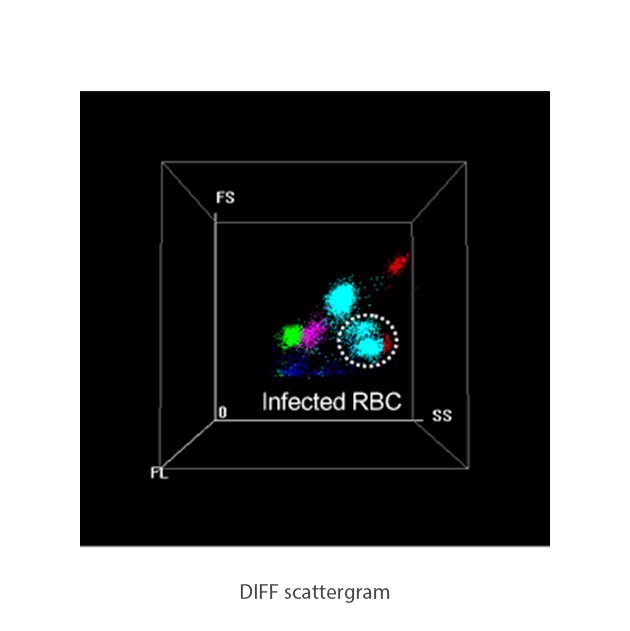

    • InR*(#,‰) are parameters regarding infected red blood cell. The red blood cells may infected by plasmodium, which can cause malaria.
    * means research parameters
  • Minimizing interference to ensure more accurate results
    • NRBCs are counted in a dedicated channel by SF cube method, which automatically corrects total WBC count and 5-part Diff results when NRBCs are detected.

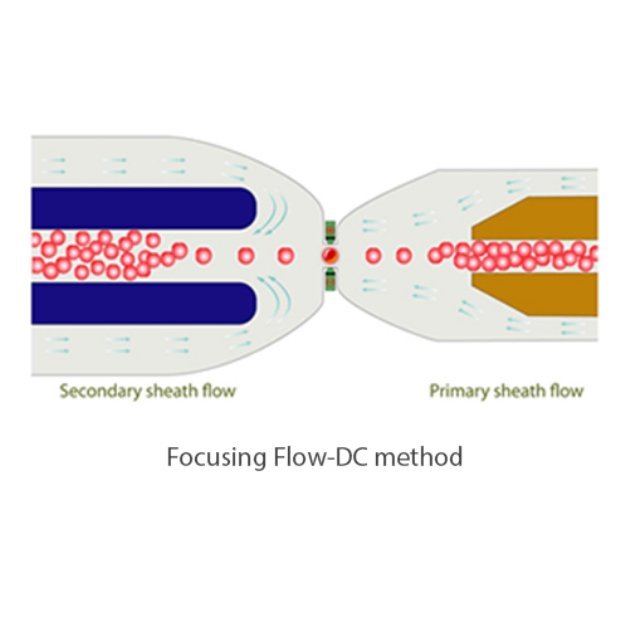

    • The Focusing Flow-DC method minimizes the interference traditionally encountered in DC technology to produce near gaussian histograms.
    • PLT-O result avoids the interference from microcytic and fragmented RBCs, large platelets and/or platelet clumps by fluorescent stain, and enhances the results accuracy and sensitivity.

High automation to minimize the workload

  • Throughput for 125 tests/hour, autoloader for 100 sample tubes capacity
  • Bi-directional LIS with HL7 or ASTM communication protocol
  • Customizable re-exam rules allow users to define their re-exam criterion according to lab’s practice
