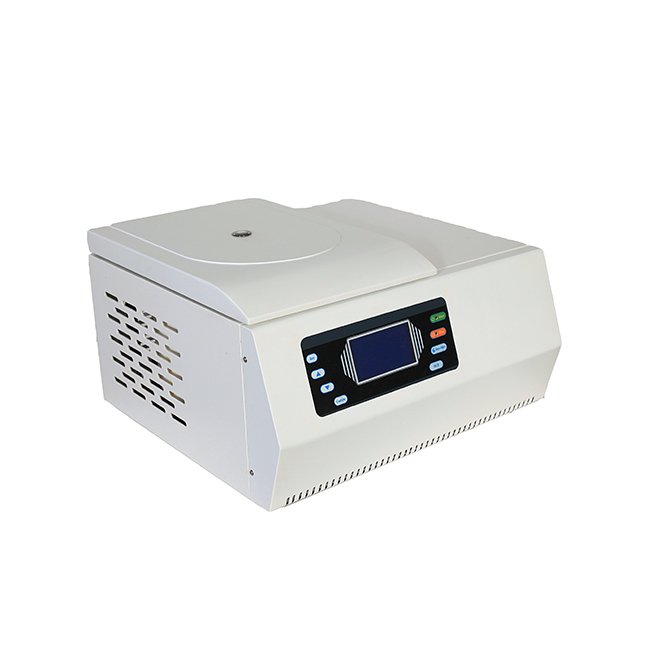

Benchtop High-speed Refrigerated Centrifuge NEUHC14
- High-speed refrigerated centrifuge with max speeds up to 24,000 r/min
- CFC-free compressor with dual-cycle refrigeration for eco-friendly operation
- Precise temperature control ranging from -20°C to +40°C
- Equipped with digital screen and microprocessor control for enhanced usability
- Features a brush-less AC frequency conversion motor to reduce carbon dust pollution
- Eight programmable settings with automatic information storage function
- Maximum capacity of 4 x 100ml for efficient sample processing
- Speed accuracy of ±20r/min and temperature accuracy of ±1°C
- Low noise operation at ≤60 dB(A) for a quieter laboratory environment
- Compact dimensions: 610x622x360mm, weighing 65kg for easy placement
- SKU
- NEUHC14
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Benchtop High-Speed Refrigerated Centrifuge NEUHC14
Professional-grade refrigerated centrifuge delivering speeds up to 24,000 r/min with precise temperature control from −20°C to +40°C. Engineered for clinical laboratories, research facilities, and diagnostic centers requiring reliable sample separation with minimal thermal drift and low operational noise.
Clinical overview
The NEUHC14 is a benchtop high-speed refrigerated centrifuge designed for demanding laboratory environments where precise sample separation and temperature stability are critical. Equipped with an imported CFC-free compressor and dual-cycle refrigeration system, it maintains exceptional temperature accuracy (±1°C) across a wide range from −20°C to +40°C, enabling reliable processing of temperature-sensitive samples including serum, plasma, cerebrospinal fluid, and cellular suspensions.
The microprocessor-controlled brushless AC frequency conversion motor eliminates carbon dust pollution while delivering consistent speed accuracy of ±20 r/min. With eight programmable settings and automatic data storage, the centrifuge streamlines workflow in high-throughput environments. Its compact footprint (610 × 622 × 360 mm, 65 kg) and quiet operation (≤60 dB(A)) make it ideal for clinical laboratories, blood banks, research institutions, and diagnostic centers where space and noise constraints are considerations.
Key features & surgeon benefits
High-Speed Separation
- Five configurable speed models up to 24,000 r/min
- Maximum RCF up to 47,800 × g for efficient pelleting
- Speed accuracy of ±20 r/min ensures reproducible results
Precision Refrigeration
- CFC-free dual-cycle refrigeration system
- Temperature range −20°C to +40°C with ±1°C accuracy
- Pre-cooling capability in stopped state for sample preparation
User-Friendly Operation
- Digital screen with microprocessor control interface
- Eight programmable settings with automatic data storage
- Timer range 0–99 minutes for flexible protocol design
Eco-Friendly Design
- Brushless motor eliminates carbon dust pollution
- Low noise operation at ≤60 dB(A)
- Compact benchtop footprint for space-efficient labs
Technical specifications
| Model Options | MSLHC14A (24,000 r/min) | MSLHC14B (22,000 r/min) | MSLHC14C (20,000 r/min) | MSLHC14D (18,000 r/min) | MSLHC14E (16,000 r/min) |
|---|---|
| Maximum Speed | 24,000 r/min (Model A); 22,000 r/min (Model B); 20,000 r/min (Model C); 18,000 r/min (Model D); 16,000 r/min (Model E) |
| Maximum RCF | 47,800 × g (Model A); 34,700 × g (Model B); 27,800 × g (Model C); 23,500 × g (Model D); 17,800 × g (Model E) |
| Maximum Capacity | 4 × 100 ml |
| Speed Accuracy | ±20 r/min |
| Temperature Range | −20°C to +40°C |
| Temperature Accuracy | ±1°C |
| Timer Range | 0–99 minutes |
| Motor | Microprocessor-controlled brushless AC frequency conversion motor |
| Noise Level | ≤60 dB(A) |
| Power Supply | AC 220V or 110V, 50–60 Hz, 18A |
| Dimensions | 610 × 622 × 360 mm (L × W × H) |
| Weight | 65 kg |
| Programmable Settings | Eight different programs with automatic information storage |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Centrifuge Unit | Benchtop high-speed refrigerated centrifuge with digital control panel | 1 |

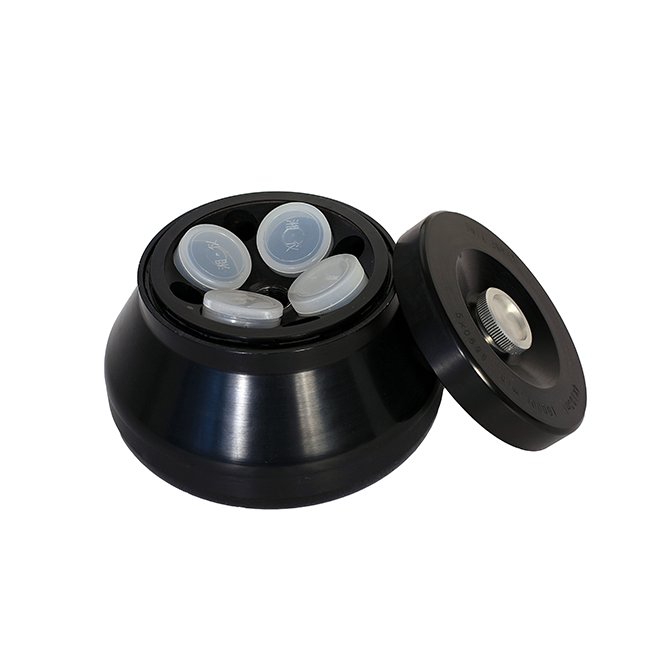

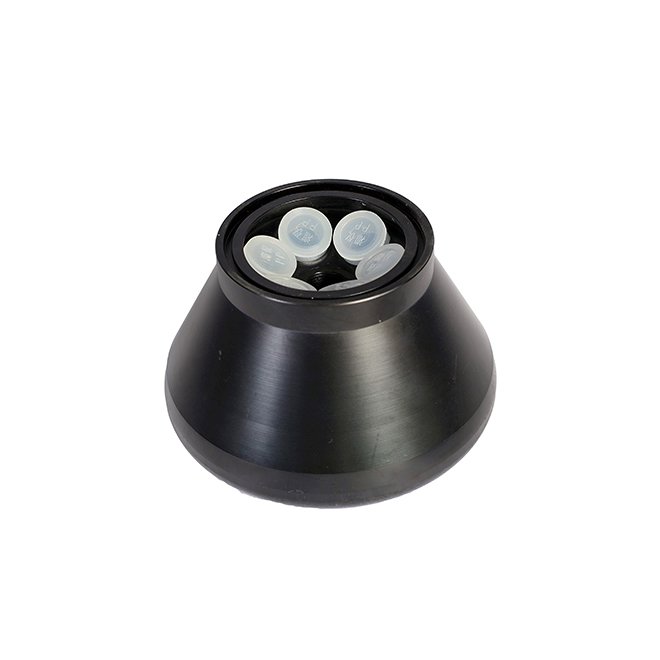

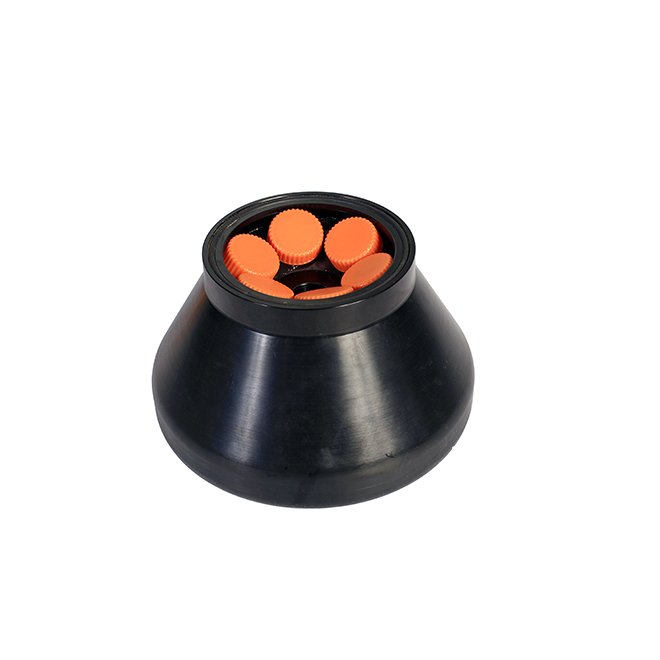

| Rotor Assembly | Stainless steel rotor rated for 4 × 100 ml tubes | 1 |

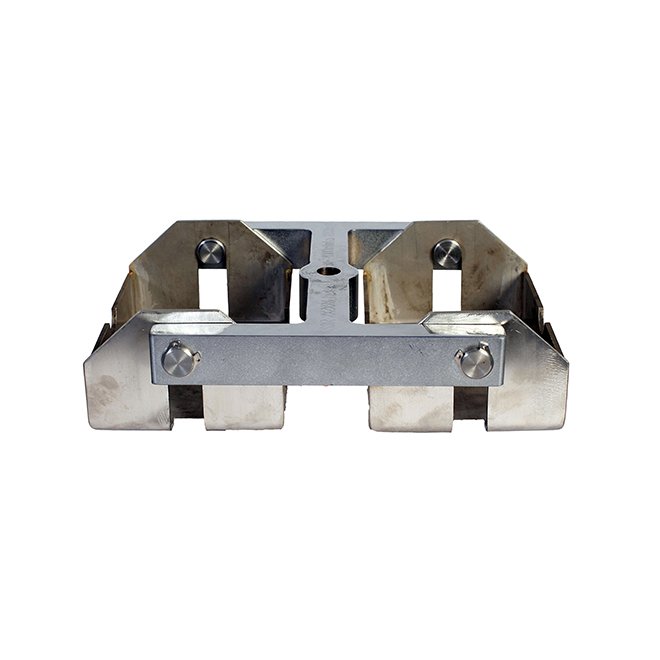

| Buckets / Carriers | Tube carriers for 100 ml sample tubes | 4 |
| Power Cord | AC power supply cable (110V or 220V as specified) | 1 |
| User Manual | Operating instructions and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss model selection, voltage requirements, and delivery timelines. We offer flexible payment terms and comprehensive technical support for laboratory equipment integration.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
