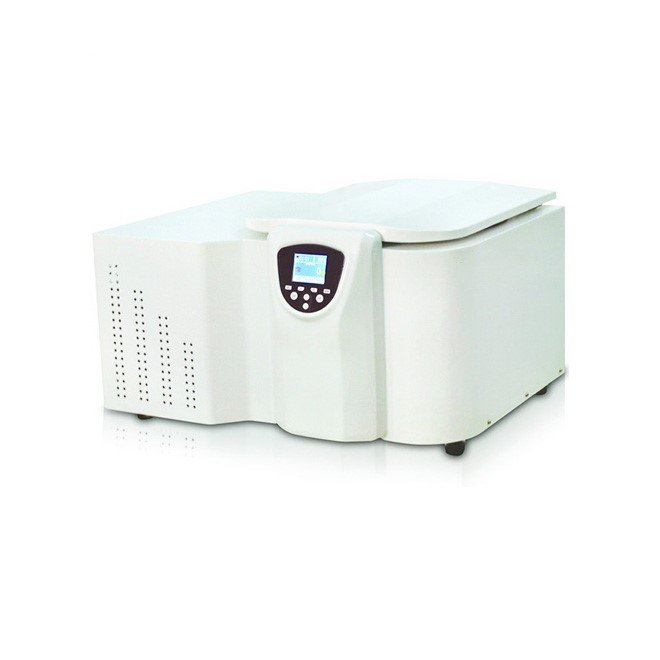

Benchtop Large-Capacity High-Speed Centrifuge NEUHC03
- Model: MSLHC03 - Benchtop Large-Capacity High-Speed Centrifuge
- Maximum capacity: Swing bucket rotor 4×300ml
- Maximum rotation speed: 20,600 r/min
- Maximum centrifugal force: 29,400 ×g
- Standard rotor: 12×1.5/2.0ml
- Temperature control range: -20℃ to +40℃
- User-friendly operation with 20 programmable settings
- Automatic rotor identification for enhanced safety
- Total power consumption: 1.8 kW
- Noise level: ≤65 dB during operation
- SKU
- NEUHC03
- Brand
- MedGroup
- Availability
- Out of stock
- ✓ Warranty included
- ✓ Worldwide shipping
Benchtop Large-Capacity High-Speed Centrifuge NEUHC03
The NEUHC03 delivers high-speed centrifugation with large-capacity swing bucket rotor capability, reaching 20,600 r/min and 29,400 ×g. Engineered for clinical laboratories, research facilities, and diagnostic centers requiring reliable, temperature-controlled separation of biological samples with minimal operational noise and maximum safety.
Clinical overview
The NEUHC03 benchtop centrifuge is designed for high-volume clinical and diagnostic laboratories requiring reliable, rapid sample separation. With a maximum centrifugal force of 29,400 ×g and rotation speeds up to 20,600 r/min, this instrument efficiently processes serum, plasma, and cellular samples while maintaining precise temperature control between −20°C and +40°C. The swing bucket rotor accommodates up to 4×300ml tubes, making it ideal for batch processing in busy clinical environments.
Featuring automatic rotor identification, 20 programmable settings, and microcomputer control, the NEUHC03 minimises operator error and ensures reproducible results. The fluoride-free refrigeration system (R404a) and low noise operation (≤65 dB) make it suitable for shared laboratory spaces. With a compact footprint (630×760×400mm) and modest power consumption (1.8 kW), the NEUHC03 integrates seamlessly into existing laboratory workflows.
Key features & surgeon benefits
High-Speed Separation
- 20,600 r/min maximum rotation speed
- 29,400 ×g centrifugal force
- Swing bucket rotor 4×300ml capacity
User-Centric Operation
- 20 programmable settings for protocol flexibility
- Automatic rotor identification for safety
- Timer range 0–99h59min for extended runs
Precision Refrigeration
- Range −20°C to +40°C with ±1°C precision
- Fluoride-free R404a compressor system
- Maintains sample integrity during processing
Efficient Laboratory Asset
- 1.8 kW power consumption
- Quiet operation ≤65 dB
- Compact benchtop design (630×760×400mm)
Technical specifications
| Model | MSLHC03 |
|---|---|
| Maximum Capacity | Swing bucket rotor 4×300ml |
| Maximum Rotation Speed | 20,600 r/min |
| Maximum Centrifugal Force | 29,400 ×g |
| Standard Rotor | 12×1.5/2.0ml |
| Speed Precision | ±50 r/min |
| Temperature Range | −20°C to +40°C |
| Temperature Precision | ±1°C |
| Programmable Settings | 20 |
| Timer Range | 0–99h59min |
| Control System | Microcomputer control with AV variable frequency motor, direct drive |
| Refrigeration | Fluoride-free R404a compressor |
| Power Consumption | 1.8 kW |
| Noise Level | ≤65 dB |
| Rotor Identification | Automatic rotor identification function |
| Net Weight | 110 kg |
| Dimensions (L×W×H) | 630×760×400 mm |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Centrifuge Unit | Benchtop high-speed centrifuge with microcomputer control | 1 |
| Swing Bucket Rotor | 4×300ml capacity rotor | 1 |
| Standard Rotor | 12×1.5/2.0ml rotor | 1 |
| Power Cable | Mains connection cable | 1 |
| User Manual | Operation and maintenance documentation | 1 |
