Benchtop Low Speed Blood Serum Centrifuge NEUHC34
- Economical with the option to use 3 types of rotors on a single instrument
- Versatile rotor options: Angle rotor, swing rotor for red blood cell washing, and micro-column gel test
- Simple operation with 11 built-in programs and 30 customizable settings
- Standard programs designed for blood group serology tests
- Quick speed acceleration with automatic braking for accuracy
- Wide application for blood tests, red blood cell washing, and gel testing
- Six joint tubes for easy operation and shortened centrifugal time
- Max speed of 4000r/min and max RCF of 3840xg
- Low noise operation at ≤42dB
- Compact dimensions of 480mm x 360mm x 280mm and lightweight at 18kg
- SKU
- NEUHC34
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Benchtop Low Speed Blood Serum Centrifuge NEUHC34
Economical, versatile benchtop centrifuge designed for blood group serology, red blood cell washing, and micro-column gel testing. Features three interchangeable rotor options on a single instrument with 11 built-in programs and 30 customizable settings for standardized clinical workflows.
Clinical overview
The NEUHC34 is a benchtop low-speed centrifuge engineered for routine blood group serology, red blood cell washing, and micro-column gel testing in clinical laboratories. Its economical design accommodates three types of rotors—angle rotor, swing rotor for RBC washing, and swing rotor for micro-column gel tests—on a single instrument, eliminating the need for multiple devices and reducing capital expenditure.
With 11 pre-programmed protocols specialized for blood group serology and the flexibility to create 30 additional custom programs, the NEUHC34 supports standardization of clinical workflows and research protocols. Quick acceleration, prompt speed reaching, and automatic braking ensure accurate RCF delivery, while low noise operation (≤42 dB) and compact dimensions (480 × 360 × 280 mm) make it ideal for space-constrained laboratory environments.
Key features & surgeon benefits
Multi-Rotor Capability
- Three interchangeable rotor types on single instrument
- Angle rotor, swing rotor for RBC washing, and micro-column gel rotor
- Eliminates need for multiple centrifuges
Simplified Operation
- 11 built-in programs for blood group serology
- 30 customizable program settings for protocol flexibility
- Six joint tubes for easy operation and reduced centrifugal time
Cost-Effective Solution
- Single instrument replaces multiple centrifuges
- Compact footprint (18 kg, 480 × 360 × 280 mm)
- Low power consumption (57 W)
Precision & Reliability
- Max speed 4000 r/min with ±30 rpm accuracy
- Max RCF 3840×g for consistent results
- Automatic braking for safe, accurate operation
Technical specifications
| Indications | Blood group serology testing, red blood cell washing, micro-column gel testing |
|---|---|
| Max Speed | 4000 r/min |
| Speed Accuracy | ±30 rpm |
| Max RCF | 3840×g |
| Timer Range | 0–99 minutes |
| Noise Level | ≤42 dB |
| Voltage | 110 V / 220 V ±22 V |
| Power Consumption | 57 W |
| Frequency | 50 Hz |
| Dimensions (L × W × H) | 480 mm × 360 mm × 280 mm |
| Weight | 18 kg |
| Rotor Options | Angle rotor, swing rotor (RBC washing), swing rotor (micro-column gel) |
| Built-in Programs | 11 standard programs; 30 customizable settings |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Benchtop centrifuge with motor and control panel | 1 |

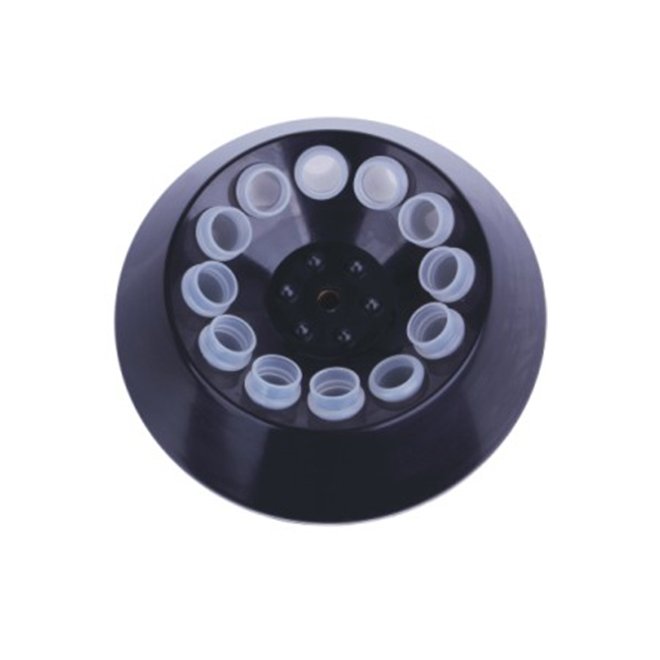

| Angle Rotor | For standard serology and general centrifugation | 1 |
| Swing Rotor (RBC) | Optimized for red blood cell washing applications | 1 |
| Swing Rotor (Gel) | Designed for micro-column gel testing | 1 |
| Tube Carriers | Six joint tubes for sample accommodation | 6 |
| Power Cord | Dual voltage compatible (110 V / 220 V) | 1 |
| User Manual | Operating instructions and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the NEUHC34 benchtop centrifuge, request a detailed quote, or schedule a product demonstration for your laboratory.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
