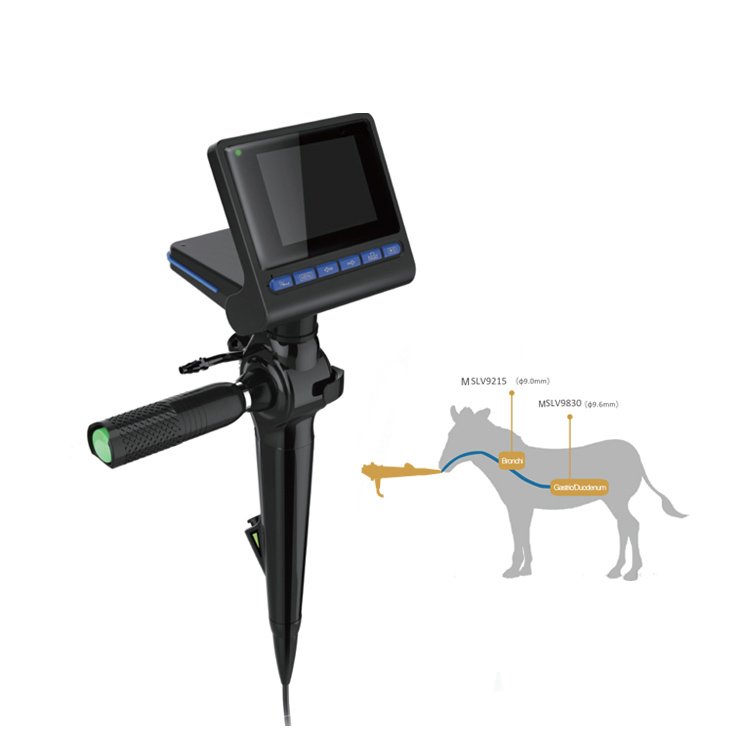

Flexible Portable Cat, Dog, Horse Endoscopy NEUV5010

$12,790.00$13,990.00 (-9%)

In stock

The MSV5010 & 6010 are the self-contained ambulatory endoscopy systems. With integral screen,battery and recording capabilities, the MSLV5010 & 6010 are extremely cost-effective.
The complete ambulatory system has a broad range of applications including ear, nose, throat,urinary tract and bladder amongst others. With two-way angulation of 180 [up] and 160″ [down]the tip deflection also allows visualisation behind the plate.
The ambulatory video bronchoscope is the perfect solution for in surgery or ambulatory diagnosis.

SKU: NEUV5010 Category:

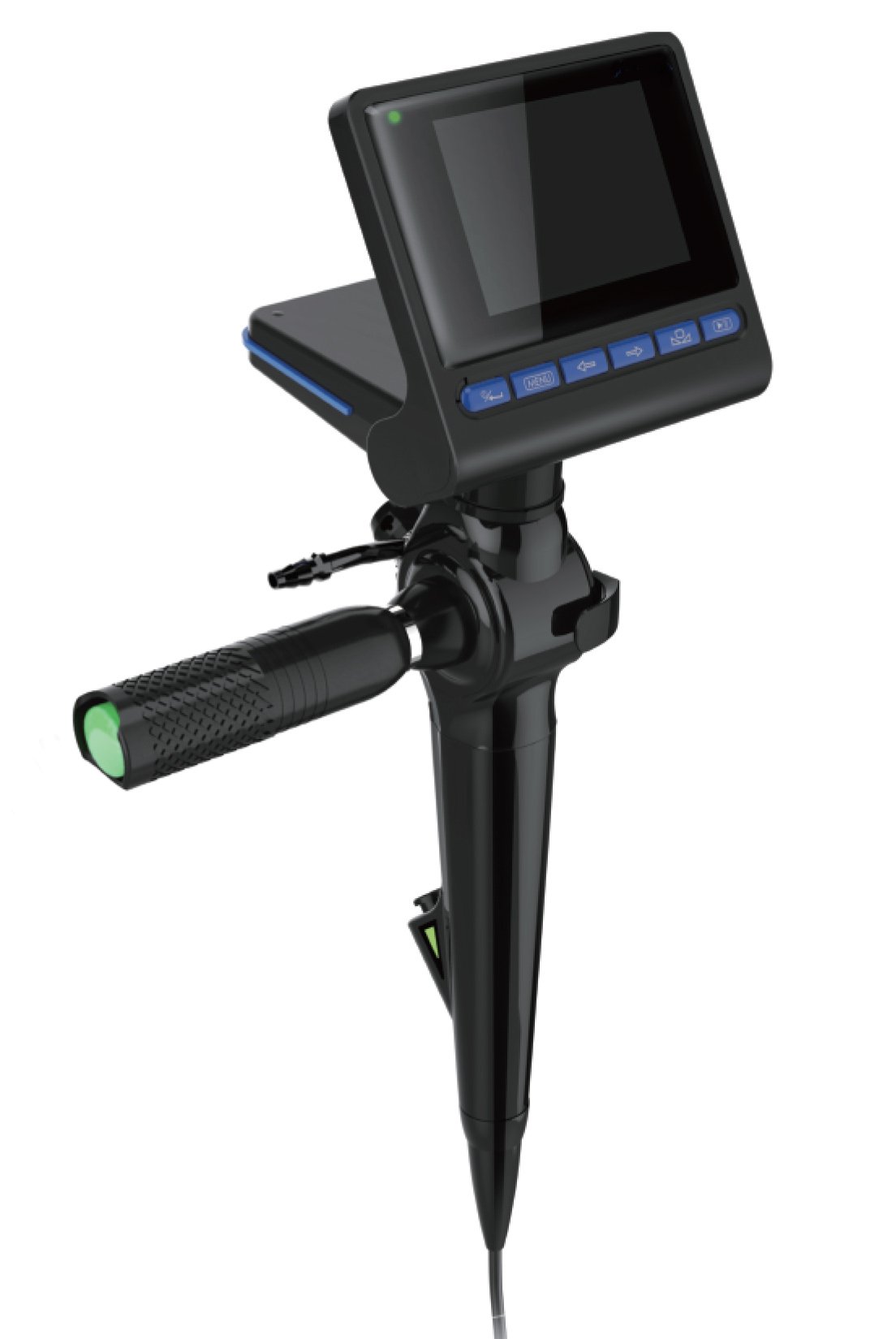

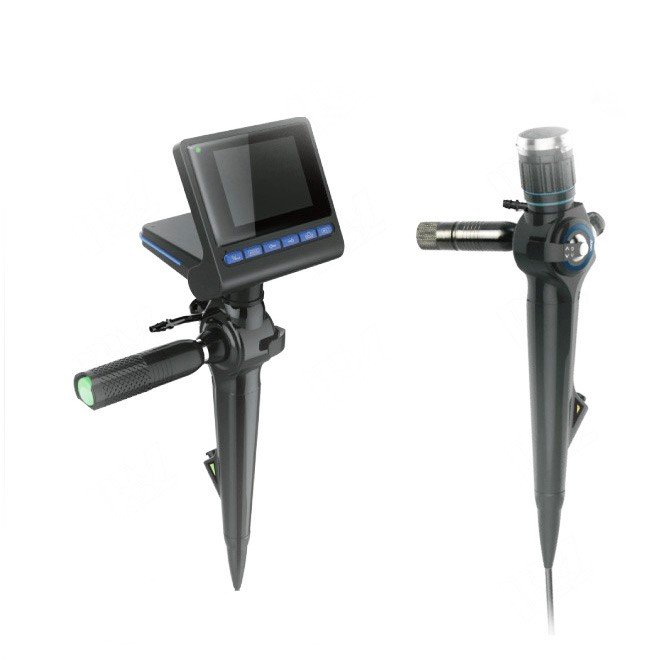

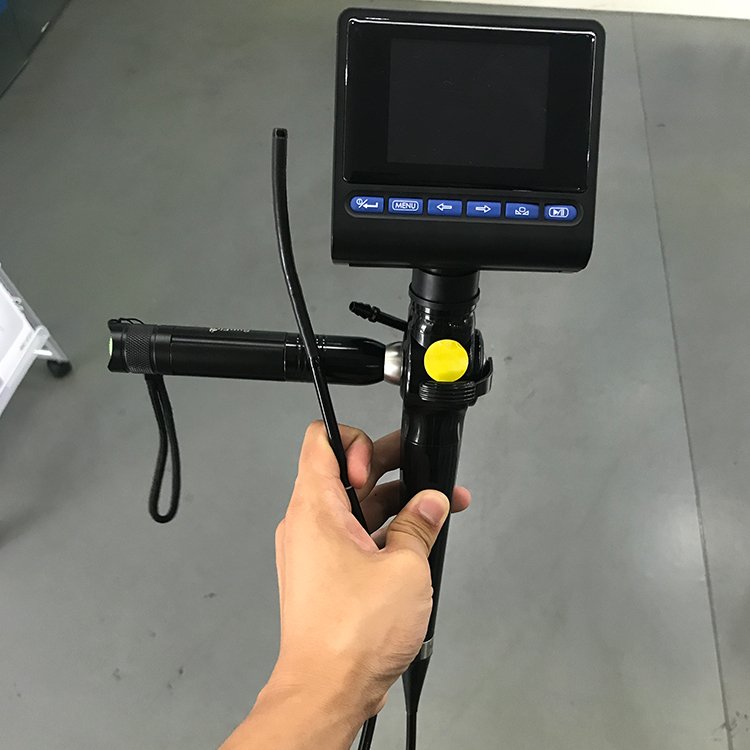

Portable Video Endoscope

The MSV5010 & 6010 are the self-contained ambulatory endoscopy systems. With integral screen,battery and recording capabilities, the MSLV5010 & 6010 are extremely cost-effective. The complete ambulatory system has a broad range of applications including ear, nose, throat,urinary tract and bladder amongst others. With two-way angulation of 180 [up] and 160″ [down]the tip deflection also allows visualisation behind the palate. The ambulatory video bronchoscope is the perfect solution for in surgery or ambulatory diagnosis.
Endoscope supplied with: Leak tester , biopsy forceps, battery pack, video recording head for moving image and stills, cleaning brush,  aspiration catheter, operation manual, channel irrigator, protective case fortransport

BBF Protable Fiber Endoscope

Portable design provides the most convenient and quick endoscopy. Equiped with portable LED light source, which can provide bright and high quality lightingunder any circumstances. Waterproof design for the insertion tube, convenient for cleaning and disinfection.


Working length
1500mm, 1000mm
Diameter of distal end
φ5.2mm,  φ5.8mm
Diameter of Instrument channel
2.2 mm,  2.6mm
Range of bending
160°U / 130°D
camera
High resoluton CMOS camera
Field of view
≧100° (forward viewing)
Depth of field
3-50mm
Full air-tightness

Detailed Images



Specifications

Description
High resolution CMOS camera
Field of view: ≧100° (forward viewing)
Depth of field: 3-50mm
Range of tip bending: 160°U / 130°D
Diameter of distal end: φ5.2mm
Diameter of insertion tube: φ5.0mm
Instrument channel: 1.5mm
Working length: 1000mm
Full air-tightness
