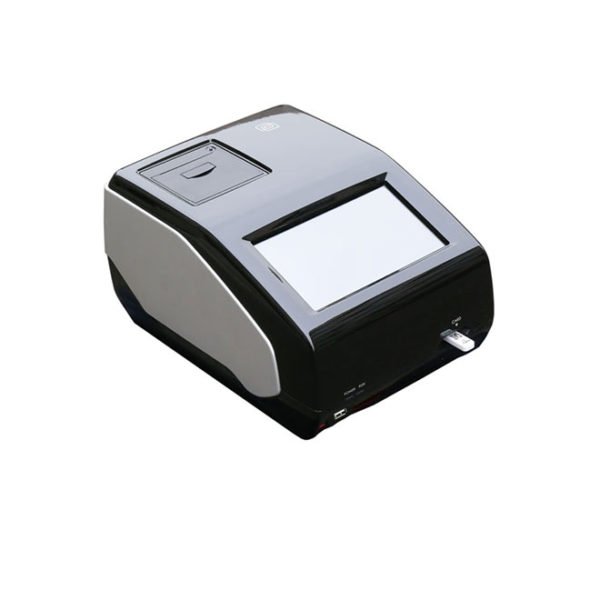

Fluorescence Immunoassay Analyzer Machine MSLIF16
MSLIF16 Fluorescence Immunoassay Analyzer (hereinafter referred to the analyzer or instrument) consists of a fluorescence immunoassay analyzer, an AC adapter, and the matched test cassette.
The analyzer is a portable medical diagnosis instrument, which is used to measure the content of biomarkers in human whole blood, serum or plasma. The test result can be used as an aid in clinical diagnosis and prognosis. The matched test cassette should be used , if does not match, the measured results may be incorrect.
Fluorescence Immunoassay Analyzer machine MSLIF16 Technical parameters
Power supply: 100-240 volts alternating current (VAC), at either 50 or 60 hertz(Hz), 2.0A, instrument input 12 volts direct current (VDC), rated power 36VA.
External connection method: network cable, USB cable (less than 3 meters)
External communication method: USB
Excitation spectrum: 365nm
Receiving spectrum: Central wavelength 613nm
Storage capacity:500000 patient records
Display mode: 7 inch touch screen
Running indicator: Green (This indicator turns green in the process of testing )
Power indicator: Green
Altitude: not more than 2000 meters
Indoor / outdoor use: For indoor use only.
Power voltage fluctuation should not exceed ± 10% of nominal voltage.
Transient overvoltage category (overvoltage category) Ⅱclass
Pollution level: 2 level
