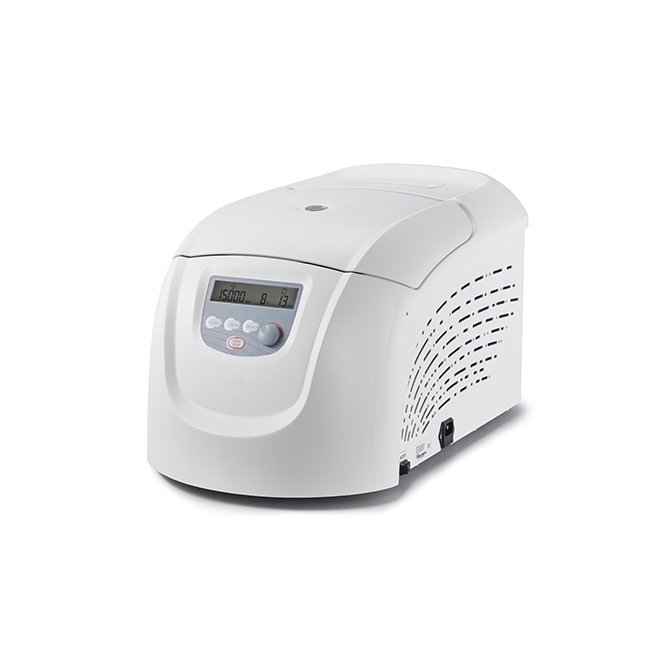

High Speed Micro Centrifuge NEUDZ300
- High-speed micro-centrifuge for advanced research applications.
- Maximum speed: 15,000 RPM with a speed accuracy of ±20 RPM.
- Max RCF: 21,380 × g for efficient separation processes.
- Versatile rotor capacity handling various sample sizes (5mL×18, 0.2mL/0.5mL/1.5mL/2mL×24).
- Brushless DC motor for reliable, maintenance-free operation.
- Safety features: dual door interlock, over-speed, and over-temperature detection.
- Run time adjustable from 30 seconds to 99 minutes, including continuous operation.
- Compact design with dimensions: 280×364×266 mm and a weight of 12 kg.
- Ideal for use in clinical labs, biochemistry, and molecular biology applications.
- Advanced features including speed/RCF switch and short-time run function.
- SKU
- NEUDZ300
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
High Speed Micro Centrifuge NEUDZ300
Advanced high-speed micro-centrifuge engineered for demanding research and clinical applications. Delivers 15,000 RPM with maximum RCF of 21,380 × g, featuring brushless DC motor technology and comprehensive safety systems for reliable sample separation and analysis.
Clinical overview
The NEUDZ300 is a high-speed micro-centrifuge designed for advanced applications across physical and chemical analysis, biochemistry, cellular and molecular biology, clinical laboratories, and blood donation centers. It excels in high-end research environments where precision separation and reliable performance are critical.
Primary applications include sedimentation of cells and viruses, separation of sub-cellular organelles, and isolation of macromolecules such as DNA, RNA, proteins, and lipids. The instrument's combination of speed accuracy (±20 RPM), versatile rotor capacity, and robust safety features makes it ideal for both routine clinical work and specialized research protocols.
Key features & surgeon benefits
High-Speed Separation
- Maximum speed of 15,000 RPM with ±20 RPM accuracy
- Maximum RCF of 21,380 × g for efficient sample separation
- Speed/RCF switch for flexible operation modes
Flexible Runtime Control
- Adjustable run time from 30 seconds to 99 minutes
- Continuous operation mode for extended protocols
- Short-time run function for rapid sample processing
Maintenance-Free Operation
- Brushless DC motor for extended service life
- Dual door interlock and over-speed detection
- Over-temperature detection with automatic internal diagnosis
Multi-Sample Capacity
- Rotor capacity: 5mL×18, 0.2mL/0.5mL/1.5mL/2mL×24, 0.5mL×36, PCR 8×4
- Handles various sample sizes and tube types
- Compact benchtop footprint (280×364×266 mm)
Technical specifications
| Indications | Cell and virus sedimentation, sub-cellular organelle separation, macromolecule isolation (DNA, RNA, proteins, lipids), clinical laboratory analysis |
|---|---|
| Maximum Speed | 15,000 RPM (200–15,000 RPM, 10 RPM increment) |
| Maximum RCF | 21,380 × g (10 × g increment) |
| Speed Accuracy | ±20 RPM |
| Rotor Capacity | 5mL×18, 0.2mL/0.5mL/1.5mL/2mL×24, 0.5mL×36, PCR 8×4 |
| Run Time | 30 seconds to 99 minutes, continuous operation |
| Motor | Brushless DC Motor |
| Safety Features | Dual door interlock, over-speed detection, over-temperature detection, automatic internal diagnosis |
| Acceleration/Braking | 25 seconds up / 25 seconds down |
| Power Supply | Single-phase AC 220V–240V, 50Hz/60Hz, 5A; AC 110V–120V, 50Hz/60Hz, 8A; 200W |
| Dimensions | 280 × 364 × 266 mm (W × D × H) |
| Weight | 12 kg |
| Advanced Features | Speed/RCF switch, short-time run function, sound-alert function |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUDZ300 Centrifuge | High-speed micro-centrifuge unit with brushless DC motor, dual door interlock, and safety systems | 1 |
| Rotor Assembly | Multi-capacity rotor (5mL×18, 0.2mL/0.5mL/1.5mL/2mL×24, 0.5mL×36, PCR 8×4) | 1 |
| Power Cord | AC power supply cord with appropriate regional connector | 1 |
| User Manual | Operating instructions, maintenance guide, and safety documentation | 1 |
