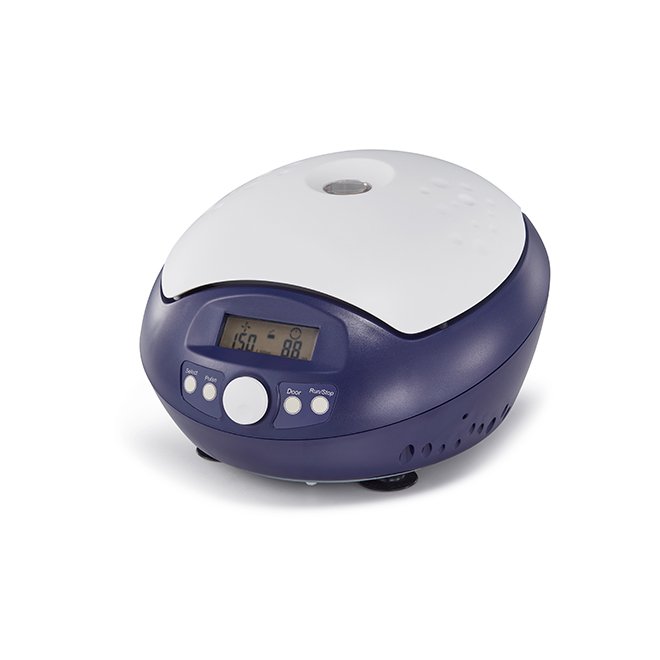

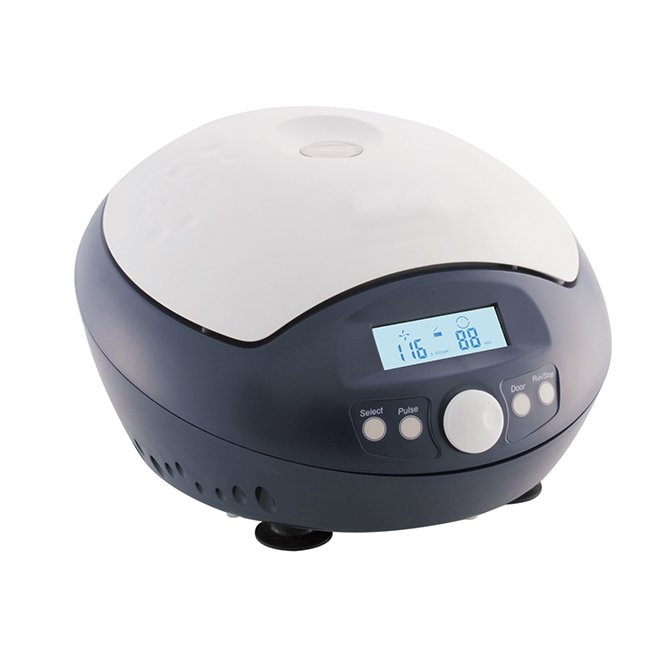

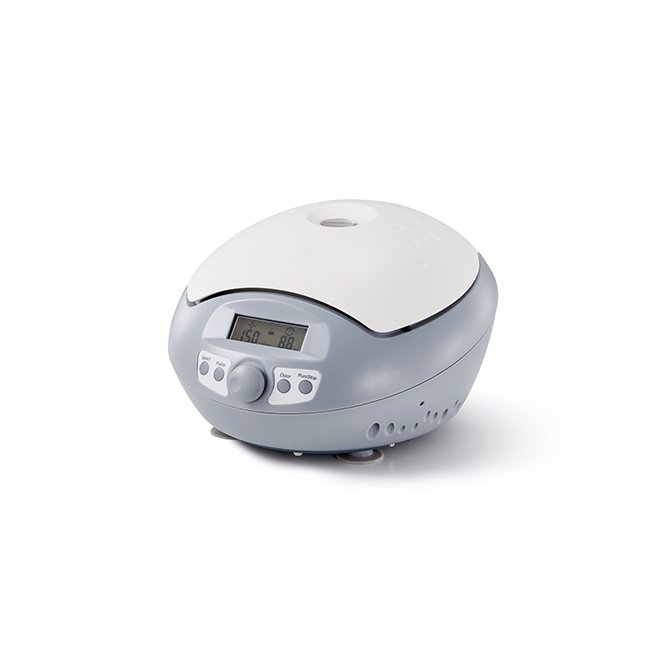

High Speed Mini Centrifuge NEUDZ200
- Compact High Speed Mini Centrifuge NEUDZ200
- Maximum Speed: 15000 rpm with 100 rpm increments
- Maximum Centrifugal Force (RCF): 2680×g
- Versatile rotor capacity for 0.2mL, 0.5mL, 1.5mL, and 2mL tubes
- Runs for 30 seconds to 99 minutes or continuous operation
- Equipped with a brushless DC motor for reliable performance
- Safety features including door interlock and over-speed detection
- Lightweight design at just 6 kg, perfect for lab use
- Low noise operation at ≤54dB
- Compact dimensions: 255mm x 245mm x 140mm
- Advanced functions include speed/RCF switch and sound-alert feature
- SKU
- NEUDZ200
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
High Speed Mini Centrifuge NEUDZ200
Compact, high-performance benchtop centrifuge delivering up to 15,000 rpm and 2680×g RCF. Ideal for clinical labs, research facilities, and point-of-care diagnostics requiring rapid sample separation with minimal footprint and low noise operation.
Clinical overview
The NEUDZ200 is a compact, high-speed benchtop centrifuge engineered for rapid and reliable sample separation in clinical, diagnostic, and research laboratory settings. With a maximum speed of 15,000 rpm and centrifugal force of 2680×g, it efficiently processes microtubes ranging from 0.2 mL to 2 mL, making it ideal for serum separation, plasma isolation, and routine microcentrifugation tasks. The brushless DC motor ensures consistent performance with minimal maintenance, while advanced safety features—including door interlock, over-speed detection, and over-temperature monitoring—protect both operator and sample integrity.
Weighing just 6 kg with compact dimensions of 255 × 245 × 140 mm, the NEUDZ200 fits seamlessly into space-constrained laboratory environments without compromising functionality. Programmable run times from 30 seconds to 99 minutes, plus continuous operation mode, provide flexibility for diverse protocols. The intuitive control interface features speed/RCF switching, short-time run function, and audible alert notification, enabling efficient workflow integration and reducing operator error.
Key features & surgeon benefits
High-Speed Separation
- 15,000 rpm maximum speed with 100 rpm increments for precise control
- 2680×g RCF for efficient sample separation in minimal time
- Speed accuracy ±20 rpm ensures reproducible results
Flexible Operation
- Programmable run times: 30 seconds to 99 minutes or continuous mode
- Multi-tube capacity (0.2, 0.5, 1.5, 2 mL) accommodates diverse sample volumes
- Speed/RCF switch and short-time run function streamline protocol setup
Cost-Effective Operation
- Compact 6 kg design reduces bench space and utility costs
- Low power consumption: 100 W, single-phase AC 110–110V/240V
- Brushless motor minimises maintenance and extends service life
Integrated Protection
- Door interlock prevents operation when lid is open
- Over-speed detection and over-temperature monitoring protect samples and equipment
- Automatic internal diagnosis ensures consistent performance and early fault detection
Technical specifications
| Maximum Speed | 15,000 rpm (500–15,000 rpm range, 100 rpm increments) |
|---|---|
| Maximum RCF | 2680×g |
| Speed Accuracy | ±20 rpm |

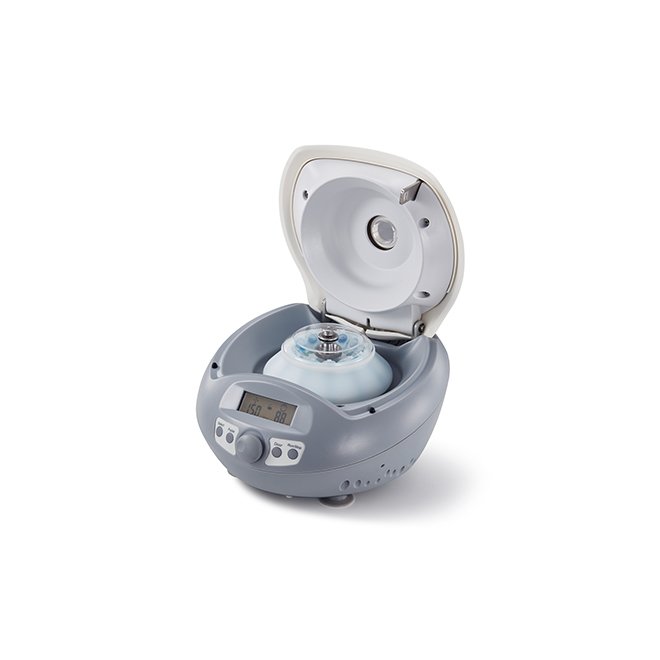

| Rotor Capacity | 0.2 mL, 0.5 mL, 1.5 mL, 2 mL tubes (12-place rotor) |
| Run Time | 30 seconds to 99 minutes, or continuous operation |
| Motor Type | Brushless DC motor |
| Acceleration / Braking Time | 11 s (up) / 9 s (down) |
| Safety Features | Door interlock, over-speed detection, over-temperature detection, automatic internal diagnosis |
| Power Supply | Single-phase AC 110–110V/240V, 50/60 Hz, 3 A, 100 W |
| Weight | 6 kg |
| Noise Level | ≤54 dB |
| Dimensions (D × W × H) | 255 × 245 × 140 mm |
| Advanced Features | Speed/RCF switch, short-time run function, sound-alert function |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Centrifuge Unit | NEUDZ200 high-speed mini centrifuge with brushless DC motor | 1 |
| 12-Place Rotor | Aluminium rotor compatible with 0.2, 0.5, 1.5, 2 mL tubes | 1 |
| Power Cord | AC mains cable, 110–110V/240V compatible | 1 |
| User Manual | Operating instructions and safety guidelines | 1 |
