HyBase V Series Operating Table - Advanced Surgical Table with Electric Movements and Safety Features
Neuvar

HyBase V Series Operating Table - Advanced Surgical Table with Electric Movements and Safety Features

- Versatile operating table adaptable for multiple surgical disciplines.
- Supports 12-20 electric movements for customized positioning.
- Efficient design reduces costs by utilizing modular tabletop options.
- Enhanced safety features including collision protection and manual override system.
- Wide imaging access with advanced maneuverability for complex procedures.
- User-friendly interface ensures easy operation and control in the operating room.

SKU
4504671A3B56
Brand
Neuvar
Availability
In stock
  • ✓ Warranty included
  • ✓ Worldwide shipping
Share

Clinical overview

Product overview

Operating Table

HyBase V Series

Versatility Beyond Expectation
Flexibility for Multiple Disciplines

Various positions

The modular design of the tabletop is tailored for various surgical discipline needs, which can also lower the cost for hospitals as they only need to buy the specific module, instead of a new table, for an additional surgical type.
HyBase V series supports 12-20 electric movements, such as powered body elevator, electric leg plates adjustable individually and E-drive function, to adapt different surgical needs.
Wide Imaging Access
HyBase V9 New
Megaslide
• 480mm max longitudinal shift • Allow deeper access to the C-ar,m, an optimal solution for cardiovascular surgery
HyBase V8 Family

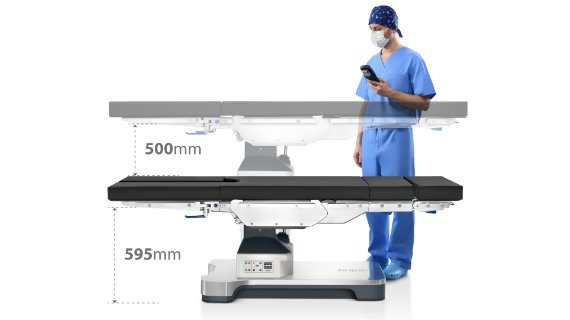

• 350mm max longitudinal shift • 450-500mm vertical movement

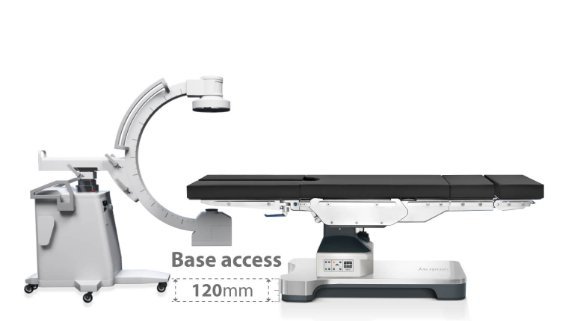

120/140mm ultra-thin base for C-arm access

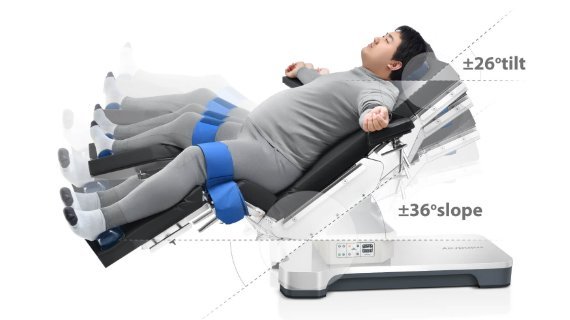

• Max slope angle 36° • Max tilt angle 26°
Features for Enhanced Safety

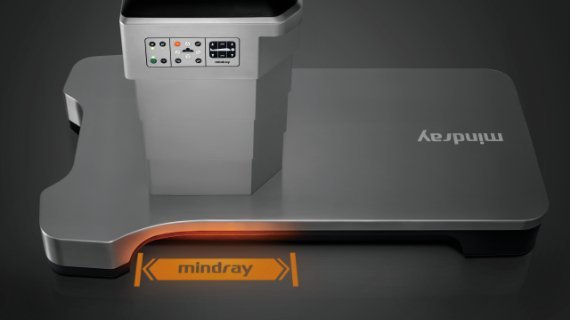

Light Indication Function
HyBase V9 Feature NEW
The two sides of the light correspond to the width of the column, facilitating obtaining the relative position of the column in the scenario where the sterile sheet is covered, and improving the patient position and C-arm fluoroscopy efficiency.

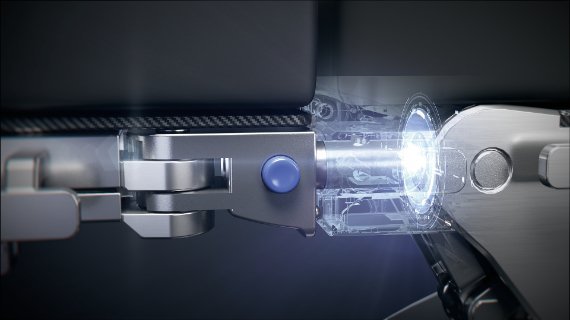

Module Recognition System
Lower back plate and small leg plate are configured with the module recognition system, which can identify the installed modules onto them.

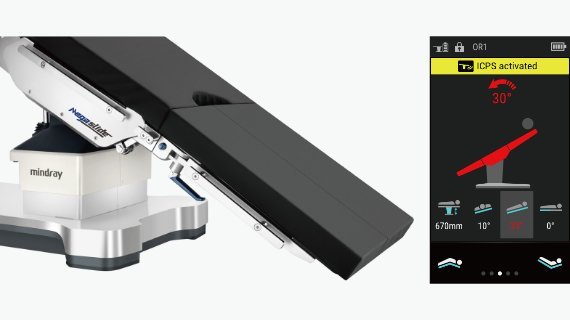

Intelligent Collision Protection System
Based on the Module Recognition System in HyBase V series, collision protection algorithm monitors the movement and avoid crash to the floor or table itself.

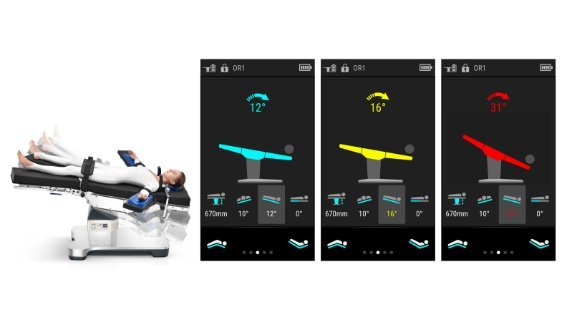

Color-coded Indicate Technology
During the tilt or slope adjustment, a color-coded indicator appears on the screen to show the angle and issue a timely warning when it comes to excessive Trendelenburg and reverse Trendelenburg position.
Manual Override System
Allowing table articulation movements and brake release in the event of primary control or power malfunction through an independent hydraulic circuit.
Efficiency in every step
Improve efficiency in the operating room.
Simultaneous Movements (HyBase V9 Feature New )
Multiple joints operate simultaneously to increase positioning efficiency and reduce patient sliding.
EASY to use
EASY to move
EASY to clean
EASY to control

Available on request

Configuration, paperwork & clinical fit

The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.

Configuration sheet

Specifications, accessories & clinical fit

Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.

Documents & downloads

Regulatory paperwork & manuals

This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.

Get in touch

Need configuration help, certificates, or volume pricing?

Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
