KT88 Digital Brain Electric Activity Mapping
- Collects EEG signals with high precision via integrated amplification
- 16 channels of EEG and optional 2 channels of ECG for comprehensive monitoring
- High sampling rate of 100 dots/s for accurate data capture
- 12-bit accuracy ensures reliable electroencephalogram output
- Displays color depth visualizing brain activity effectively
- Digital filtering with free enactment for customizable results
- Multiple paper speeds (5 to 120 mm/s) for versatile recording
- Adjustable amplitude settings from 1 to 50 mm/50µV for optimal clarity
- Supports playback speeds up to 60 times for in-depth analysis
- Effective 50Hz interference suppression for cleaner signal quality
- SKU
- 72F60AA3CD0F
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
KT88 Digital Brain Electric Activity Mapping
High-precision EEG system with 16 channels of electroencephalography and optional 2-channel ECG monitoring. Delivers real-time color-depth visualization of brain electrical activity with advanced digital filtering and comprehensive analysis tools for neurological assessment.
Clinical overview
The KT88 Digital Brain Electric Activity Mapping system is a comprehensive neurological diagnostic platform that collects EEG signals via integrated electrodes and amplification circuitry. Signals undergo analog-to-digital transformation, PC-based auto-analysis, and Fast Fourier Transform (FFT) processing to generate high-fidelity electroencephalograms displayed with color-depth visualization. This enables clinicians to assess brain electrical activity patterns with precision and clarity.
The system is indicated for evaluation of epilepsy, intracranial inflammation, cerebrovascular diseases, brain tumors, and other neurological conditions requiring detailed EEG assessment. Its multi-channel architecture, adjustable recording parameters, and advanced digital filtering provide flexibility for diverse clinical protocols while maintaining diagnostic accuracy and signal integrity.
Key features & surgeon benefits
Multi-channel EEG with ECG option
- 16 channels of EEG for comprehensive brain mapping
- Optional 2-channel ECG for concurrent cardiac monitoring
- 100 dots/s sampling rate ensures accurate temporal resolution
- 12-bit accuracy for reliable electroencephalogram output
Advanced noise suppression and filtering
- Input impedance ≥10MΩ for minimal signal loss
- Patient leak current <10µA ensures safety compliance
- Noise level ≤5µVp-p for clean signal capture
- 50Hz interference suppression ≥30dB eliminates mains artifact
- CMRR ≥90dB for excellent common-mode rejection
Customizable recording and playback
- Multiple paper speeds (5–120 mm/s) for varied recording durations
- Adjustable amplitude (1–50 mm/50µV) for optimal visualization
- Playback speeds up to 60× for detailed retrospective analysis
- All-digital filtering with free parameter adjustment
High-fidelity diagnostics
- 10,000× magnification multiple for detailed waveform inspection
- Color-depth display for intuitive brain activity visualization
- FFT and auto-analysis for objective frequency-domain assessment
- Class II, Type BF applied part for patient safety
Technical specifications
| Indications | Epilepsy, intracranial inflammation, cerebrovascular diseases, brain tumors, neurological assessment |
|---|---|
| EEG Channels | 16 channels |
| ECG Channels | 2 channels (optional) |
| Sampling Rate | 100 dots/s |
| Accuracy | 12-bit |
| Input Impedance | ≥10MΩ |
| Patient Leak Current | <10µA |
| Noise Level | ≤5µVp-p |
| CMRR | ≥90dB |
| Magnification Multiple | 10,000× |
| Paper Speeds | 5, 10, 15, 30, 60, 120 mm/s |
| Amplitude Settings | 1, 1.5, 2, 3, 5, 7.5, 10, 12, 15, 20, 30, 50 mm/50µV |
| Playback Speeds | 1×, 2×, 3×, 10×, 20×, 40×, 60× |
| 50Hz Interference Suppression | ≥30dB |
| Filtering | All-digital with free parameter adjustment |
| Safety Classification | Class II, Type BF applied part |
| Warranty | 2 Year Manufacturer Warranty |

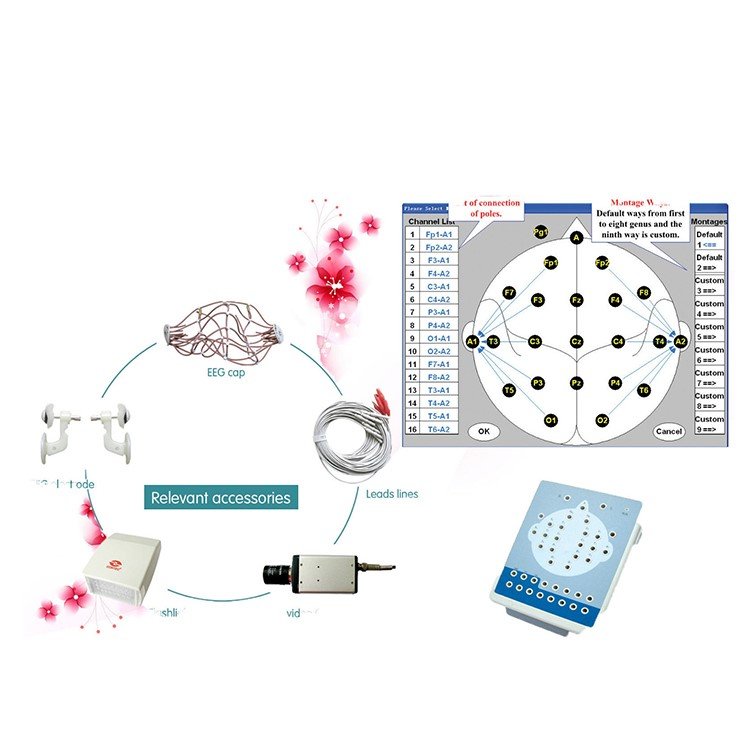

Standard instrument composition
| Item | Description | Qty |
|---|---|---|

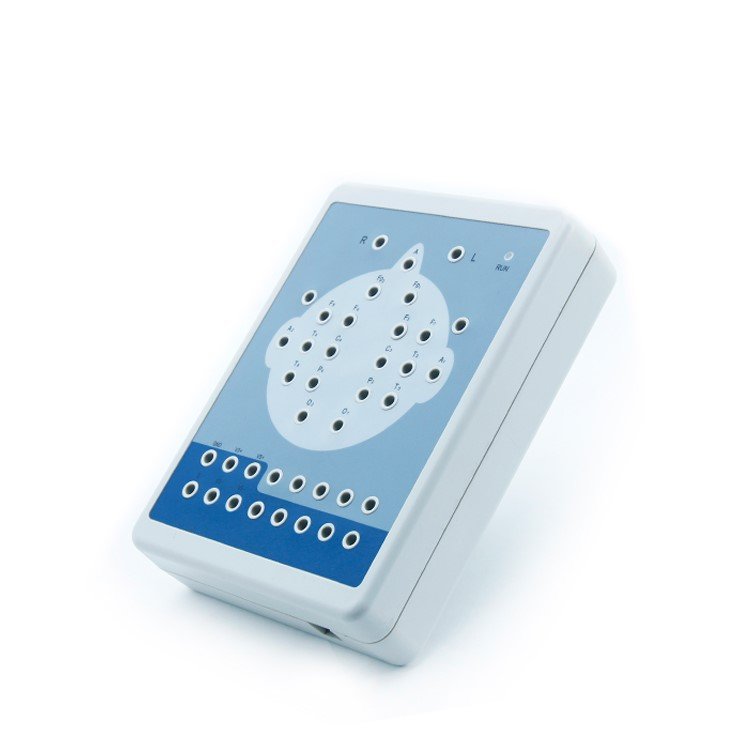

| KT88 Main Unit | Digital EEG system with integrated amplification and A/D conversion | 1 |
| EEG Electrode Set | 16-channel electrode array with leads | 1 |
| ECG Leads (Optional) | 2-channel ECG electrode set | As ordered |
| Power Supply | Medical-grade power adapter | 1 |
| Software Suite | PC-based analysis and visualization software with FFT and auto-analysis | 1 |
| User Manual | Clinical operation and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, clinical integration, and pricing. We offer flexible delivery and comprehensive technical support for all KT88 installations.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
