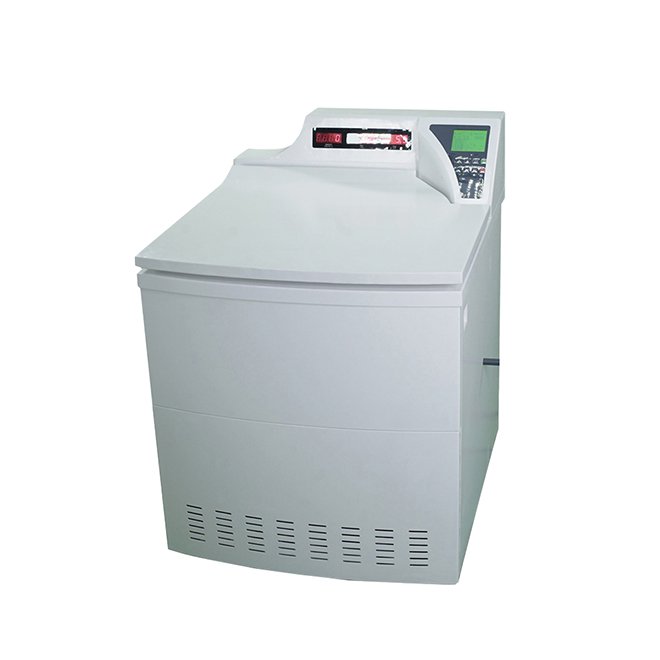

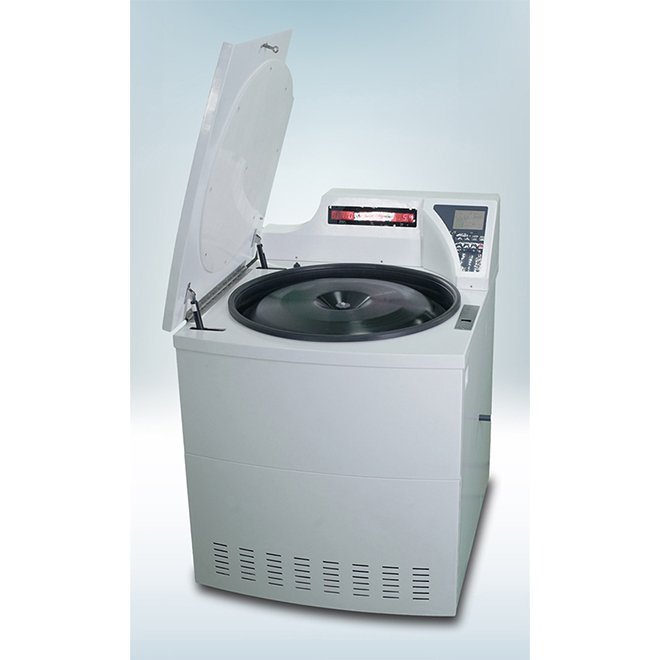

Large Capacity Refrigerated Centrifuge NEUZL53
- Advanced touchscreen control with a large LCD display.
- Configurable RPM, RCF, temperature, and time settings.
- Capable of storing and running up to 40 customizable programs.
- Unique refrigeration system with CFC-free compressor for optimized cooling.
- Safety features include door lock and imbalance, over-speed, and over-heat protection.
- Super large capacity for isolating up to 12 x 400ml blood bags or 14400ml samples.
- Suitable for biomedical and pharmaceutical applications.
- Max RPM of 8000 and RCF of 12166×g ensures high-performance centrifugation.
- Operating temperature range between -20℃ to 40℃ with ±2.0℃ accuracy.
- Compact design with dimensions of 975×860×1180 mm and a net weight of 500 kg.
- SKU
- NEUZL53
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Large Capacity Refrigerated Centrifuge NEUZL53
High-performance refrigerated centrifuge with advanced touchscreen control, capable of processing up to 12 × 400ml blood bags or 14,400ml samples. Engineered for blood banks, pharmaceutical, and biomedical laboratories requiring superior capacity and precision temperature control.
Clinical overview
The NEUZL53 is a large-capacity refrigerated centrifuge designed for high-volume clinical and pharmaceutical applications. With a maximum rotor capacity of 6 × 2400ml or equivalent to 12 × 400ml blood bags, it delivers exceptional throughput for blood banks, central transfusion services, and biomedical research facilities. The integrated CFC-free refrigeration system maintains precise temperature control from −20°C to +40°C with ±2.0°C accuracy, ensuring optimal sample integrity and separation quality.
Advanced touchscreen control with a large LCD display enables intuitive operation, parameter configuration, and real-time monitoring of centrifugation curves. The system supports up to 40 customizable programs, allowing operators to store and recall optimized protocols for different sample types. Multi-layer safety systems—including door lock, imbalance detection, over-speed protection, and over-heat shutdown—ensure reliable, unattended operation in demanding laboratory environments.
Key features & surgeon benefits
Super Large Sample Volume
- Isolate 12 × 400ml blood bags in a single run
- 6 × 2400ml rotor configuration for maximum throughput
- Φ700mm chamber diameter for optimal rotor stability
High-Speed Centrifugation
- Maximum RPM: 8000 rpm; Maximum RCF: 12,166 × g
- Nine acceleration/deceleration profiles for gentle or rapid separation
- RPM accuracy ±20 r/min; real-time curve display
Long-Life Refrigeration
- CFC-free R404a compressor for environmental compliance
- Dual heating/cooling temperature control system
- Frequency variable motor eliminates toner contamination
Multi-Layer Protection
- Automatic door lock during operation
- Imbalance, over-speed, and over-heat detection
- Emergency stop function; safe user operation guaranteed
Technical specifications
| Indications | Blood separation, plasma isolation, serum preparation, pharmaceutical and biomedical sample processing |
|---|---|
| Maximum RPM | 8000 rpm |
| Maximum RCF | 12,166 × g |
| Maximum Capacity | 6 × 2400ml or 12 × 400ml blood bags |
| Timing Range | 1 min–23h 59min |
| Temperature Range | −20°C to +40°C |
| Temperature Accuracy | ±2.0°C |
| RPM Accuracy | ±20 r/min |
| Power Supply | AC 110V/220V ±22V, 50/60Hz, 50A |
| Total Power Consumption | 7500W |
| Noise Level | ≤65 dB(A) |
| Chamber Diameter | Φ700mm |
| Dimensions (L × W × H) | 975 × 860 × 1180 mm |
| Net Weight | 500 kg |
| Gross Weight | 540 kg |
| Packaging Dimensions (L × W × H) | 1100 × 980 × 1400 mm |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | NEUZL53 Refrigerated Centrifuge with touchscreen control | 1 |

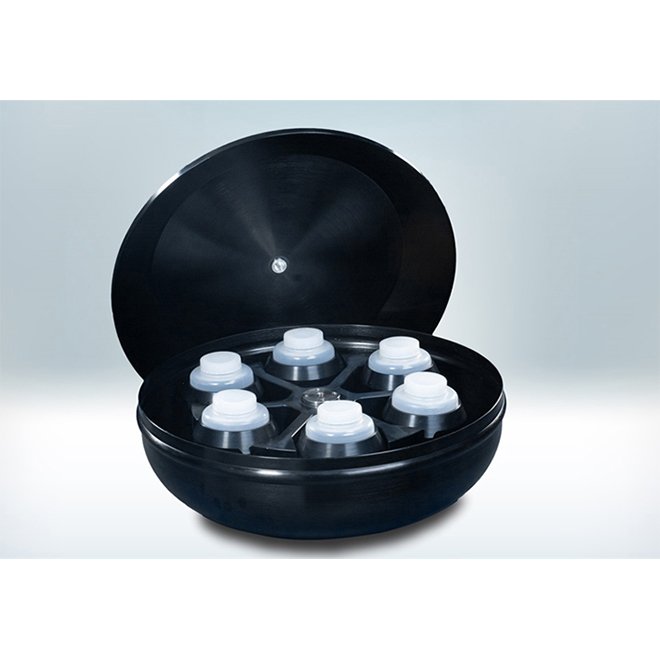

| Rotor | 6 × 2400ml Horizontal Rotor | 1 |
| Buckets | 2400ml Centrifuge Bottles | 6 |
| Power Cable | AC 110V/220V supply cable with grounding | 1 |
| User Manual | Operating and maintenance documentation (Chinese/English) | 1 |
