Large Volume Refrigerated Centrifuge NEUZL58
- Large Volume Refrigerated Centrifuge NEUZL58 designed for efficiency and versatility
- Microcomputer controlled with AC frequency variable motor drive for longer lifespan
- Touchscreen interface with digital display for easy operation
- Programmable settings for acceleration/deceleration timing and RCF value calculation
- Dual control heating and refrigerating system for optimal performance
- Safety features including over speed, overheat, imbalance, and auto lock protection
- Max RPM of 10,000 and Max RCF of 18,300×g for robust separation
- Impressive capacity of 6×1000ml suitable for large samples
- Temperature range from -20℃ to 40℃ with accuracy of ±2.0℃
- Compact design with a net weight of 268kg and noise level ≤ 65dB(A)
- SKU
- NEUZL58
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

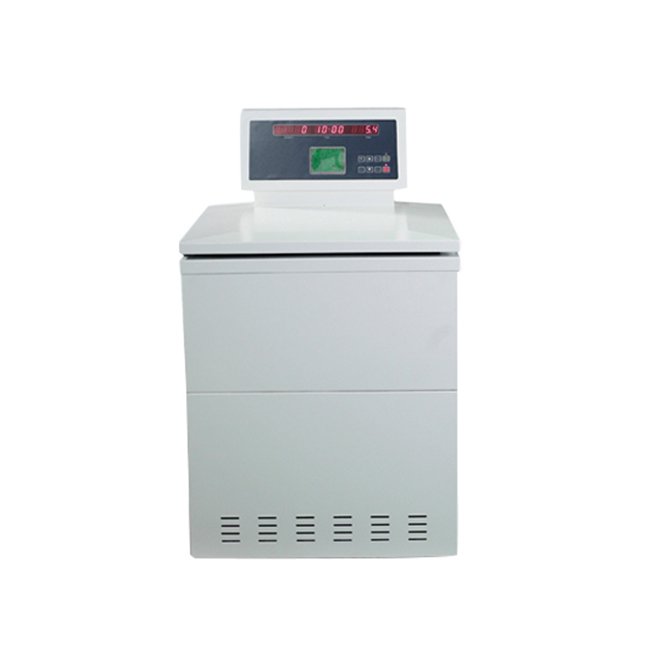

Large Volume Refrigerated Centrifuge NEUZL58
Microcomputer-controlled refrigerated centrifuge engineered for high-capacity sample processing. Features AC frequency variable motor drive, dual heating/refrigeration control, and comprehensive safety systems. Ideal for clinical laboratories, research facilities, and diagnostic centres requiring reliable, efficient separation of large sample volumes.
Clinical overview
The NEUZL58 is a large-volume refrigerated centrifuge designed for demanding laboratory environments where high-capacity sample processing is essential. With a maximum capacity of 6×1000ml and a maximum RCF of 18,300×g, this instrument delivers consistent, reliable separation performance for clinical diagnostics, blood banking, serum/plasma processing, and research applications. The microcomputer-controlled system with AC frequency variable motor drive ensures smooth operation, extended motor lifespan, and minimal noise and vibration—critical factors in busy clinical settings.
Dual heating and refrigeration control maintains precise temperature stability from −20°C to +40°C (±2.0°C accuracy), enabling optimal processing of temperature-sensitive samples. The intuitive touchscreen interface with programmable acceleration/deceleration timing and automatic RCF value calculation streamlines workflow and reduces operator error. Comprehensive safety features—including over-speed, overheat, imbalance, and auto-lock door protection—ensure both instrument integrity and user safety during extended runs.
Key features & surgeon benefits
High-Capacity Separation
- 6×1000ml rotor capacity for large batch processing
- Max RCF 18,300×g with 10,000 RPM maximum speed
- Timing range 1 minute to 23 hours 59 minutes for flexible protocols
Intuitive Operation
- Touchscreen digital display with programmable settings
- Automatic RCF value calculation eliminates manual conversion
- User-defined acceleration/deceleration timing for protocol optimization
Precision Temperature Control
- Dual heating and refrigeration system (−20°C to +40°C)
- Temperature accuracy ±2.0°C for consistent results
- AC frequency variable motor drive for extended equipment life
Comprehensive Protection
- Over-speed, overheat, and imbalance detection systems
- Automatic door lock during operation
- Noise level ≤65dB(A) for comfortable laboratory environment
Technical specifications
| Max RPM | 10,000 rpm |
|---|---|
| Max RCF | 18,300×g |
| Max Capacity | 6×1000ml |
| Timing Range | 1 minute to 23 hours 59 minutes |
| Temperature Range | −20°C to +40°C |
| Temperature Accuracy | ±2.0°C |
| RPM Accuracy | ±20 r/min |
| Power Supply | AC 220±22V, 50/60Hz, 30A |
| Total Power | 4,500W |
| Noise Level | ≤65dB(A) |
| Centrifuge Chamber Diameter | φ600mm |
| Dimensions (L×W×H) | 830×720×1250mm |
| Packaging Dimensions (L×W×H) | 930×830×1350mm |
| Net Weight | 268kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Centrifuge Unit | NEUZL58 Large Volume Refrigerated Centrifuge with microcomputer control and touchscreen interface | 1 |

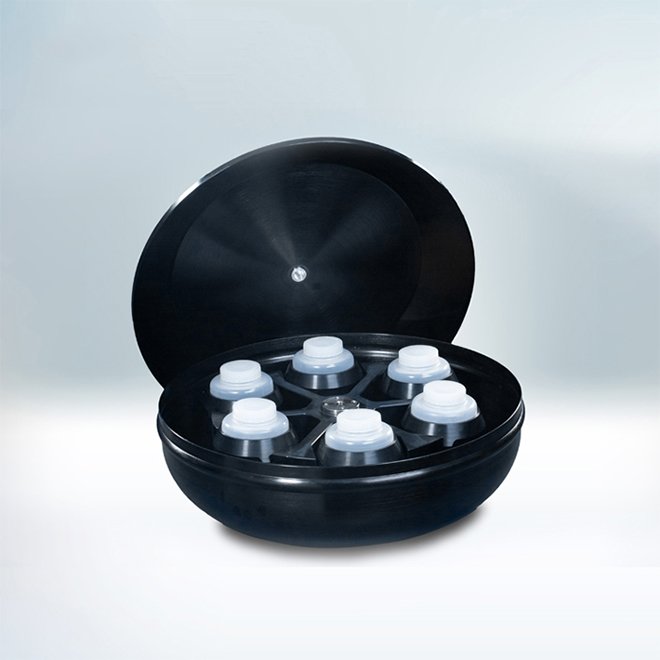

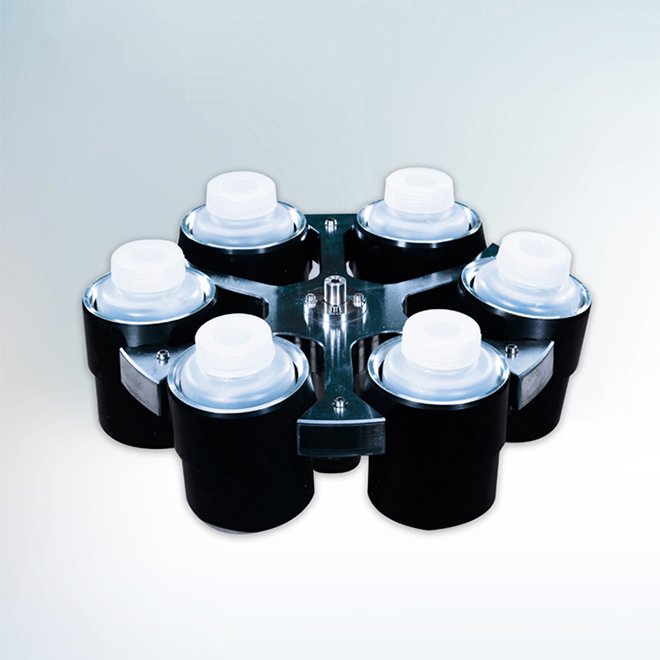

| Rotor | 6×1000ml capacity rotor (stainless steel) | 1 |
| Buckets | Swing-out buckets for 1000ml tubes | 6 |
| Power Cable | AC 110V/220V power supply cable with safety connector | 1 |
| User Manual | Operation and maintenance documentation | 1 |
