LCD Screen Uv Visible Spectrophotometer NEUUV09
- 2.5" LCD screen for clear visualization of results
- Equipped with imported deuterium lamp for enhanced accuracy
- Capable of setting various standard curves for concentration analysis
- USB port for easy connection to PC and data output
- Displays multiple results including wavelength, absorption, and transmittance
- Auto wavelength setting feature to minimize operational errors
- Stability of ±0.002A/h @ 500nm ensures reliable measurements
- Includes 4 Icm glass cuvettes and 2 quartz cuvettes
- Compact design with dimensions of 420*280*180mm
- Weighs only 12kg, making it portable and easy to use
- SKU
- NEUUV09
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

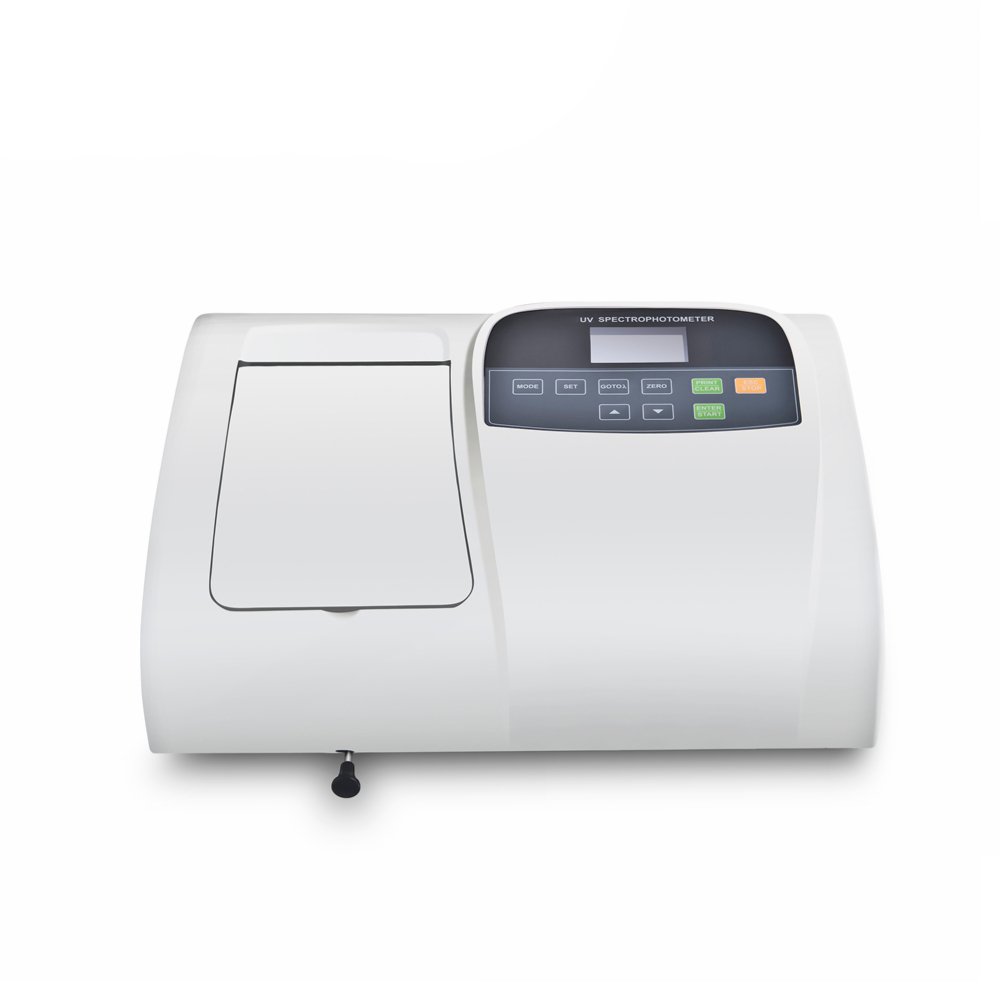

LCD Screen UV Visible Spectrophotometer NEUUV09
Precision UV-Vis analysis with 2.5" LCD display and imported deuterium lamp. Delivers wavelength range 190–1000 nm with ±1 nm accuracy, multiple measurement modes, and USB data output for seamless laboratory integration.
Clinical overview
The NEUUV09 is a single-beam UV-Visible spectrophotometer designed for precise concentration analysis and standard curve development in clinical, pharmaceutical, and research laboratories. Equipped with an imported deuterium lamp and 1200 lines/mm grating, it delivers exceptional photometric accuracy (±0.5% T) and wavelength repeatability (0.5 nm) across the 190–1000 nm range. The 2.5" LCD display provides clear visualization of multiple results including wavelength, absorption, and transmittance, with memory storage for up to 200 measurements.
The instrument features auto wavelength setting to minimize operational errors, USB connectivity for seamless PC integration and data export, and optional software for spectrum scanning, kinetics, and multi-wavelength analysis. With a compact footprint (420×280×180 mm) and lightweight design (12 kg), the NEUUV09 is ideal for high-throughput laboratory workflows requiring reliable, repeatable measurements and easy portability between workstations.
Key features & surgeon benefits
Precision Measurement
- Wavelength range 190–1000 nm with ±1 nm accuracy
- Photometric accuracy ±0.5% T; repeatability 0.3% T
- Stray light ≤0.2% T; stability ±0.002 A/h @ 500 nm
User-Friendly Operation

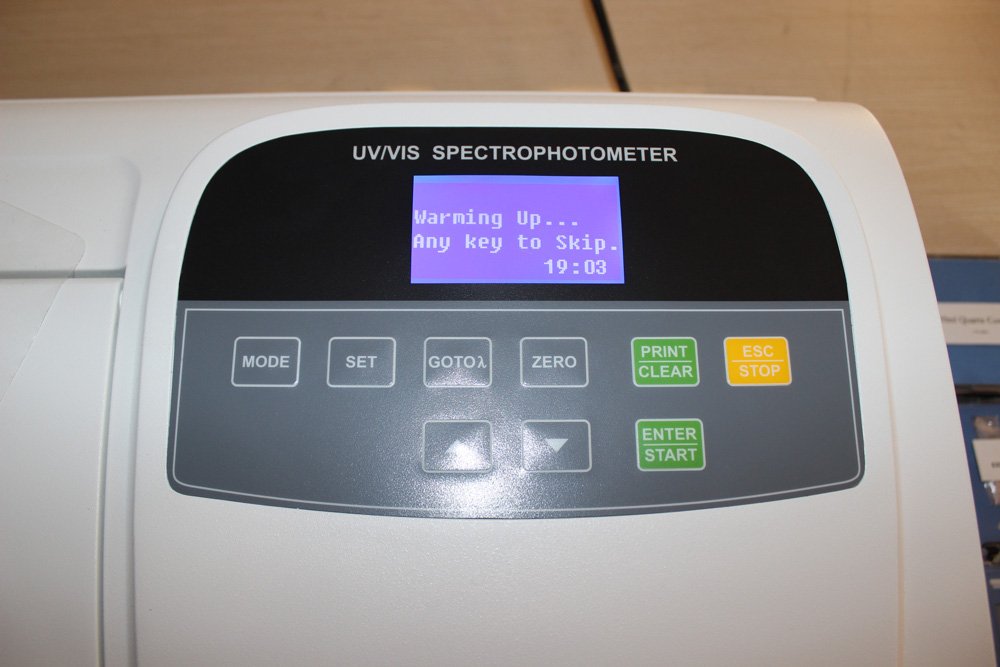

- 2.5" LCD display with clear result visualization
- Auto wavelength setting via arrow keys reduces errors
- Memory storage for up to 200 results
Connectivity & Analysis
- USB port for PC connection and data export
- Optional software for spectrum scanning and kinetics
- Multiple photometric modes: T, A, C, F
Compact Design
- Dimensions 420×280×180 mm; weight 12 kg
- Easy to relocate between laboratory stations
- Imported deuterium lamp for durability and low stray light
Technical specifications
| Optical System | Single beam, grating 1200 lines/mm |
|---|---|
| Wavelength Range | 190–1000 nm |
| Bandwidth | 4 nm |
| Wavelength Accuracy | ±1 nm |
| Wavelength Repeatability | 0.5 nm |
| Wavelength Setting | Auto |
| Photometric Accuracy | ±0.5% T |
| Photometric Repeatability | 0.3% T |
| Photometric Range | −0.3–3 A or 0–200% T |
| Photometric Mode | T, A, C, F |
| Stray Light | ≤0.2% T |
| Stability | ±0.002 A/h @ 500 nm |
| Display | 128×64 LCD |
| Detector | Silicon photodiode |
| Light Source | Tungsten lamp & Dâ‚‚ lamp (imported) |
| Output | USB port & parallel port (printer) |
| Power Requirements | AC 85–250 V |
| Dimensions | 420×280×180 mm |
| Weight | 12 kg |
| Warranty | 2 Year Manufacturer Warranty |

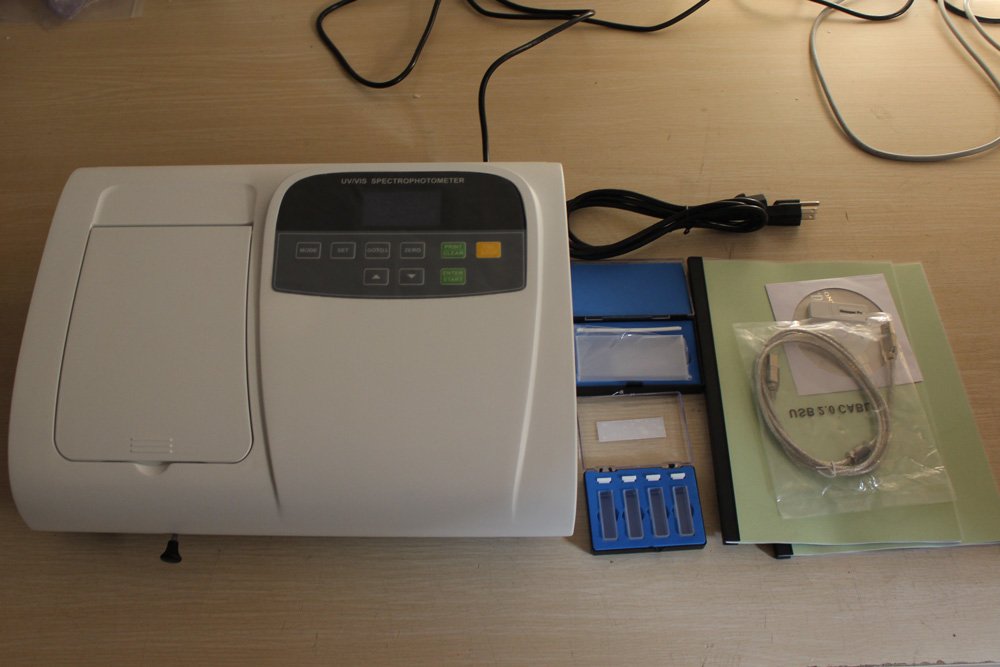

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Spectrophotometer (NEUUV09) | 1 set |
| 2 | 1 cm glass cuvette | 4 pcs |
| 3 | 1 cm quartz cuvette | 2 pcs |
| 4 | Power cord | 1 pc |
| 5 | User's manual | 1 pc |
| 6 | Dust cover | 1 pc |
