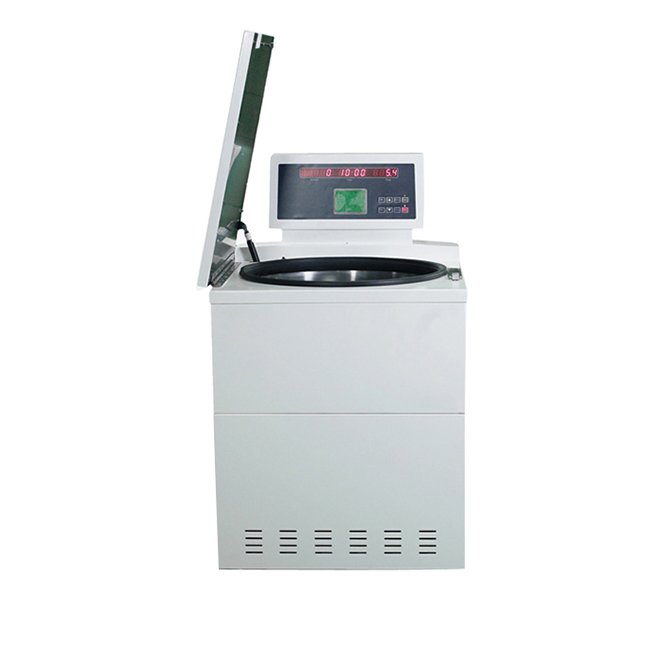

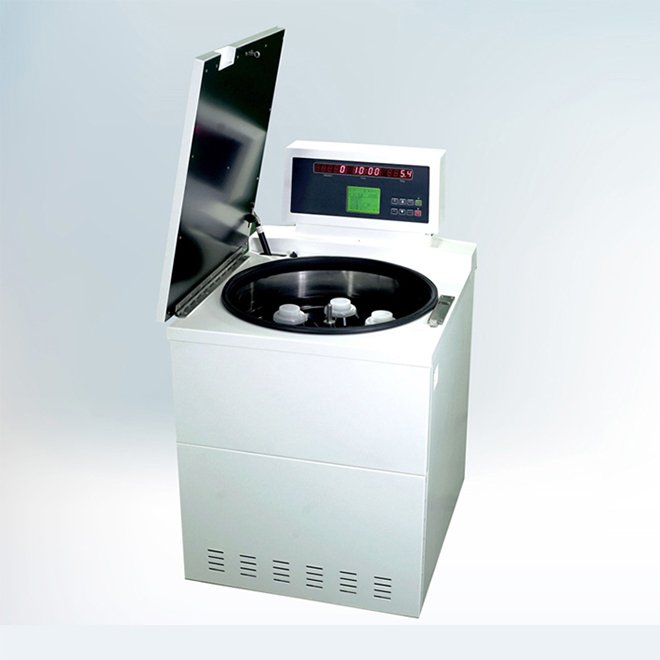

Low-speed Large Capacity Refrigerated Centrifuge NEUZL52
- High-speed performance with a maximum RPM of 6500 and RCF of 6680×g
- Large capacity design accommodating up to 6×1000ml blood bags
- User-configurable acceleration/deceleration for customized operation
- Advanced safety features including imbalance detection and auto shut-off
- Environmentally friendly refrigerant; temperature range from -20°C to 40°C
- Low noise operation at ≤ 65dB for a quieter workspace
- Robust stainless steel construction with triple-layer protection
- Self-correcting balancing swivel for added reliability
- Compact design with dimensions of 840×730×1240mm and weighs 260kg
- Power-efficient with a total power consumption of 4500W
- SKU
- NEUZL52
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Low-speed Large Capacity Refrigerated Centrifuge NEUZL52
High-performance refrigerated centrifuge engineered for blood bank and clinical laboratory applications. Delivers 6500 RPM with 6680×g RCF, accommodates up to 6×1000ml blood bags, and maintains precise temperature control from −20°C to 40°C with minimal vibration and quiet operation.
Clinical overview
The NEUZL52 is a large-capacity, refrigerated centrifuge designed specifically for blood bank and clinical laboratory workflows. With a maximum capacity of 6×1000ml blood bags and precision temperature control from −20°C to 40°C, it enables reliable separation of blood components, plasma preparation, and specimen processing. The horizontal square cup rotor accommodates 6×400ml 5-strip blood bags or 24×100ml platelet transfer bags, making it versatile for diverse transfusion medicine and hematology applications.
Advanced safety features including automatic imbalance detection, over-speed protection, over-heat monitoring, and door lock interlocks ensure operator and sample integrity. The brushless, variable-frequency motor eliminates carbon brush maintenance, while triple-layer stainless steel construction and self-correcting balancing swivel technology deliver long-term reliability and minimal downtime in high-throughput environments.
Key features & surgeon benefits
High-Speed Separation
- Maximum 6500 RPM with 6680×g RCF for efficient component separation
- RPM accuracy of ±20rpm with 100rpm stepped increments
- Timing range 1 minute to 23 hours 59 minutes for flexible protocols
Large Capacity & Flexibility
- Accommodates 6×1000ml blood bags or equivalent specimen volumes
- User-configurable acceleration and deceleration times

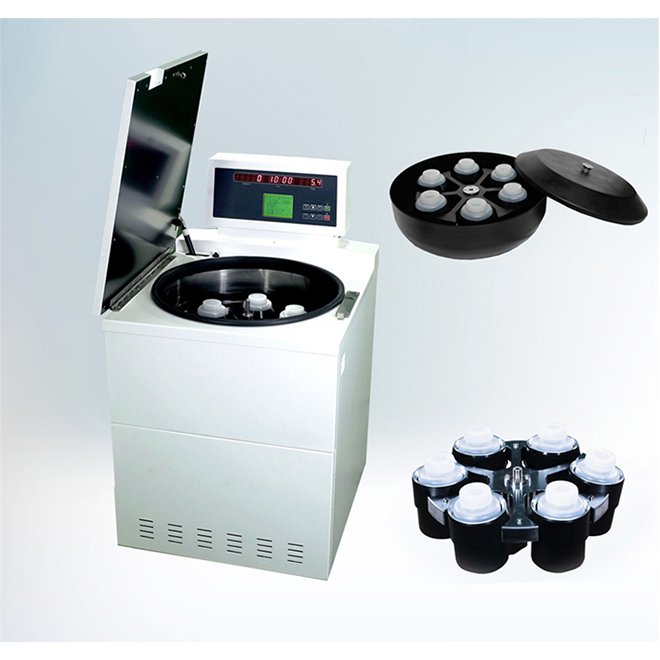

- Horizontal square cup rotor isolates 6×400ml 5-strip bags or 24×100ml platelet bags
Safety & Durability
- Automatic detection of imbalance, over-speed, over-heat, and door lock status
- Self-correcting balancing swivel with error messaging and auto shut-off
- Triple-layer stainless steel protection; brushless motor eliminates maintenance
Quiet & Efficient Operation
- Noise level ≤65dB(A) for quieter laboratory environment
- Environmentally friendly refrigerant; temperature range −20°C to 40°C
- Power consumption 4500W; compact footprint 840×730×1240mm
Technical specifications
| Maximum RPM | 6500 rpm |
|---|---|
| Maximum RCF | 6680×g |
| Maximum Capacity | 6×1000ml |
| Timing Range | 1 minute to 23 hours 59 minutes |
| Temperature Range | −20°C to 40°C |
| Temperature Accuracy | ±2.0°C |
| RPM Accuracy | ±20 r/min |
| Noise Level | ≤65dB(A) |
| Power Supply | AC 220±22V, 50/60Hz, 30A |
| Total Power Consumption | 4500W |
| Centrifuge Chamber Diameter | φ600mm |
| Dimensions (L×W×H) | 840×730×1240mm |
| Packaging Dimensions (L×W×H) | 940×830×1340mm |
| Net Weight | 260kg |
| Gross Weight | 300kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUZL52 Centrifuge Unit | Complete refrigerated centrifuge with integrated control panel and safety interlocks | 1 |
| Horizontal Square Cup Rotor | 6×1000ml capacity rotor with self-correcting balancing swivel | 1 |
| Power Cable & Plug | AC 110V/220V, 50/60Hz rated electrical connection | 1 |
| User Manual & Documentation | Operating instructions, maintenance guide, and safety protocols | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory's centrifugation requirements, request a detailed quote, or arrange a product demonstration. We provide comprehensive support and flexible delivery options.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
