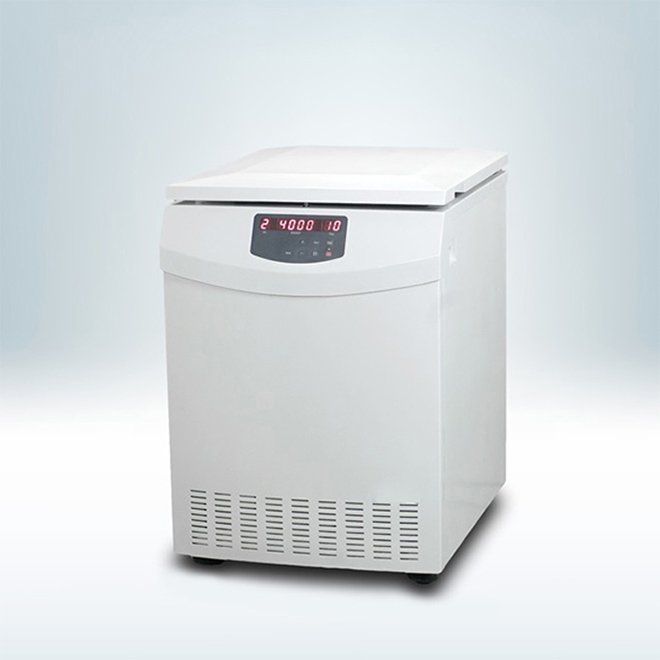

Low-speed Large Volume Centrifuge NEUZL90-91
- High-performance low-speed large volume centrifuge NEUZL90-91
- Microcomputer controlled with AC frequency variable motor drive
- Multiple rotor options for versatile use
- Quiet operation with noise levels ≤ 65dB(A)
- Over speed, overheat, imbalance, and door lid auto-lock protection systems
- Max RPM of 5500 and RCF of 5310×g
- Large capacity support: 6×500ml or 4×750ml
- Double temperature control with precise temperature accuracy of ±2.0℃
- Dimensions: 825×625×910mm, weight options of 130kg or 190kg
- Designed for reliable, efficient performance in laboratory settings
- SKU
- NEUZL90
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Low-Speed Large Volume Centrifuge NEUZL90-91
High-performance microcomputer-controlled centrifuge with dual temperature control, multiple rotor configurations, and advanced safety systems. Engineered for reliable, efficient performance in clinical and research laboratory settings with quiet operation and precise temperature accuracy.
Clinical overview
The NEUZL90-91 is a robust low-speed centrifuge designed for high-volume sample processing in clinical laboratories, blood banks, and research facilities. With a maximum capacity of 6×500ml or 4×750ml and RCF up to 5310×g, this instrument delivers consistent, reliable separation for diverse applications including serum separation, plasma preparation, cell harvesting, and microbial culture processing.
Engineered with microcomputer control and AC frequency variable motor drive technology, the centrifuge operates with minimal vibration and noise (≤65dB), ensuring laboratory comfort and sample integrity. The dual temperature control system (NEUZL91 model) maintains precise temperature accuracy of ±2.0℃, critical for temperature-sensitive biological samples. Multiple rotor options and user-friendly RPM/RCF conversion functionality provide flexibility for diverse laboratory protocols.
Key features & surgeon benefits
Large Volume Processing
- 6×500ml or 4×750ml maximum capacity for high-throughput workflows
- Max RPM 5500 with RCF up to 5310×g for efficient separation
- Steady, vibration-free operation with light rotor design
Advanced Microcomputer Control
- AC frequency variable motor drive with long operational life
- Programmable timing range 1–99 minutes with ±20 r/min accuracy
- One-key RPM/RCF conversion for protocol flexibility
Dual Temperature Control (NEUZL91)
- Temperature range -20℃ to 40℃ with ±2.0℃ accuracy
- Imported compressor set with unique heat radiation system
- Optimal cooling and heating for temperature-sensitive samples
Comprehensive Protection Systems
- Over-speed, overheat, imbalance, and door lid auto-lock protection
- Quiet operation ≤65dB(A) for laboratory comfort
- Multiple rotor options for user customization and compatibility
Technical specifications
| Model | NEUZL90 / NEUZL91 |
|---|---|
| Indications | Clinical sample separation, blood banking, immunology, microbiology, cell harvesting, general laboratory centrifugation |
| Max RPM | 5500 rpm |
| Max RCF | 5310×g |
| Capacity | 6×500ml or 4×750ml |
| Temperature Range | NEUZL90: N/A; NEUZL91: -20℃ to 40℃ |
| Temperature Accuracy | NEUZL90: N/A; NEUZL91: ±2.0℃ |
| Timing Range | 1–99 minutes |
| RPM Accuracy | ±20 r/min |
| Noise Level | ≤65dB(A) |
| Centrifuge Chamber Diameter | φ500mm |
| Power Supply | AC 220±22V 50/60Hz 15A |
| Total Power | NEUZL90: 750W; NEUZL91: 1500W |
| Dimensions (L×W×H) | 825×625×910mm |
| Net Weight | NEUZL90: 130kg; NEUZL91: 190kg |
| Packaging Dimensions (L×W×H) | 930×730×1010mm |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Low-speed centrifuge with microcomputer control and AC frequency variable motor drive | 1 |
| Rotor Assembly | Multiple rotor options available for 500ml and 750ml tube configurations | As configured |
| Power Cable | AC 110V/220V 50/60Hz rated power supply cable | 1 |
| User Manual | Operation and maintenance documentation | 1 |
| Warranty Card | 2-year manufacturer warranty documentation | 1 |
