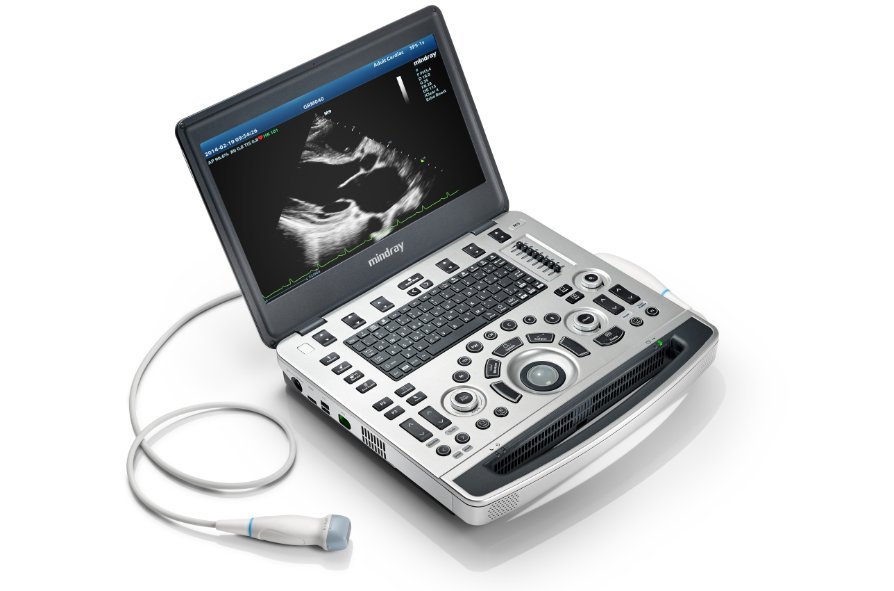

Mindray M9 Ultrasound System - Premium Imaging with Advanced Transducer Technology
- Premium ultrasound system designed with Mindray's advanced mQuadro platform.
- Echo-enriched beam forming for enhanced image resolution and deeper penetration.
- Innovative 3T Transducer Technology™ for improved sensitivity and reduced noise.
- Multi-beam formation for higher frame rates and excellent time resolution.
- User-friendly features like iTouch™ for instant image optimization and iScanhelper for training.
- Compact and portable design for easy mobility in clinical settings.
- SKU
- CB885E99CE5B
- Brand
- Neuvar
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
M9

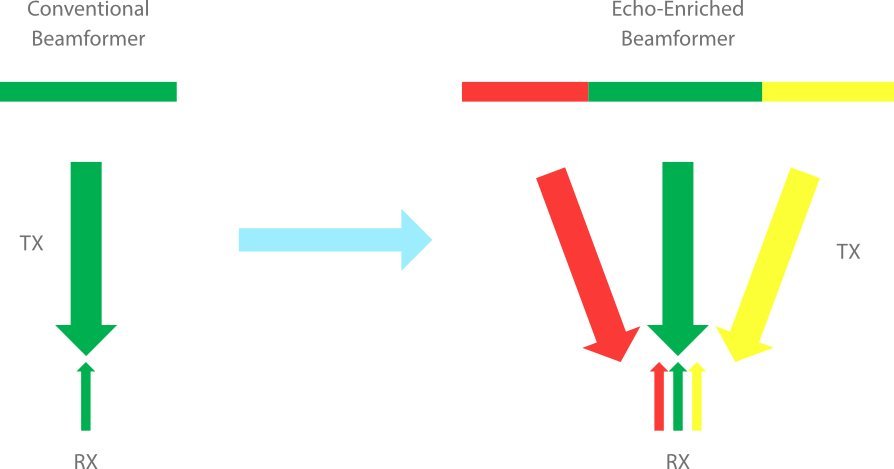

Echo-enriched Beam Forming
Echo-enriched beam former permits the use of traditionally neglected echo signals of adjacent beams to form one finer and stronger imaging beam, providing better ‘out-of-focus’ image resolution and deeper image penetration.

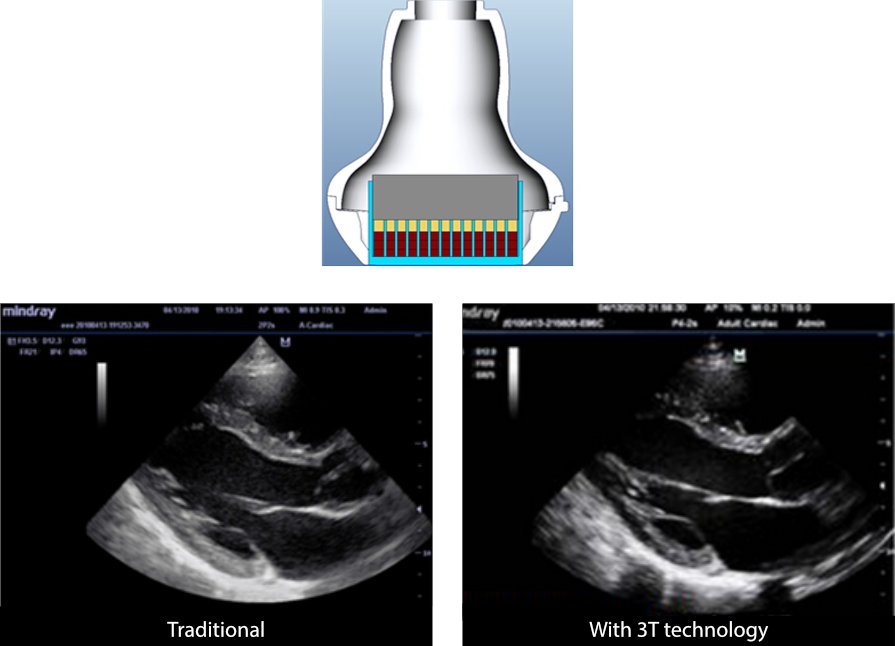

3T Transducer Technology™
Mindray’s patent transducer technology to increase image bandwidth and transmission efficiency. · Triple-matching layer design for higher sensitivity, wider bandwidth, and improved S/N · Total-cut design for lower cross-talk noise, better directivity, and improved lateral resolution · Thermal-control design for better acoustic transmission

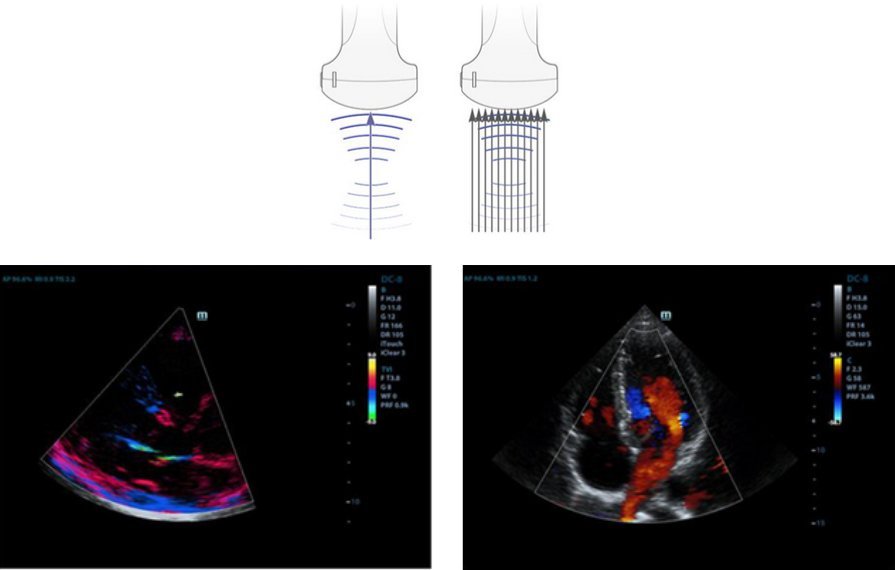

Multi-Beam Formation
Maximum 12 times tasking for one transmitted beam, resulting in excellent time resolution and higher frame rate.
iClear (Need application specific images)

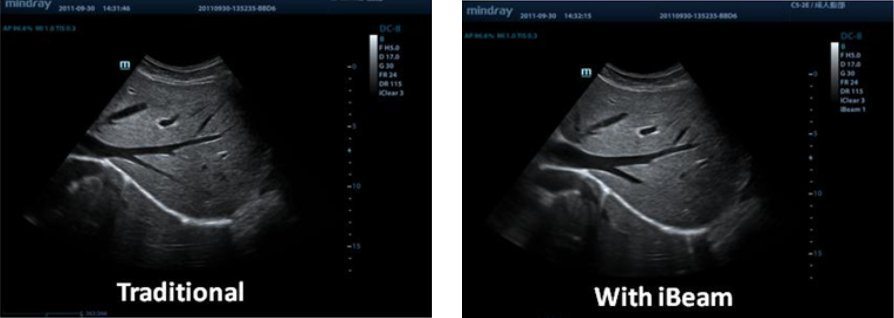

Gain improved image quality based on auto structure detection. · Sharper & Continuous Edges · Smooth Uniform Tissues · Cleaner ‘no echo areas’iBeam™
Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.
PSHI™ (Phase Shift Harmonic Imaging)
Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.FCI (Frequency Compounding Imaging)

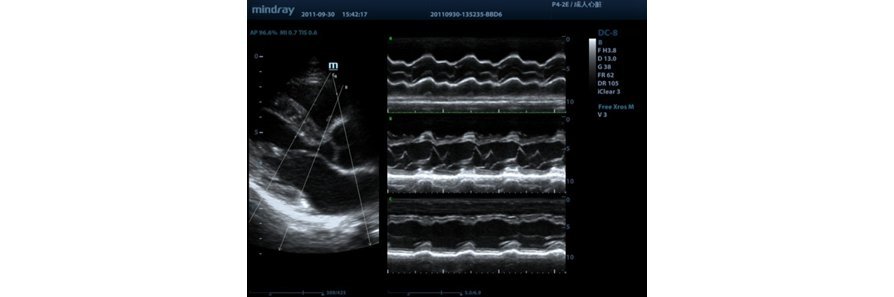

Permits compounding of different frequencies to form best whole field image homogeneity, providing better penetration especially for high frequency scan.Free Xros M™
Gain precise anatomical observation by freely placing sample lines at any angle. Attain better images through simultaneous display of up to 3 sample lines.
Free Xros CM™
Accurately evaluate myocardial motion at different phases, and simultaneously determine myocardial synchronization. High frame-rate providing you with accurate results:
TDI
Tissue Doppler Imaging allows you to quantitatively evaluate local myocardial movement and function, providing complete TDI modes for faster and direct diagnoses.
LVO with Stress Echocardiography
M9’s premium capabilities allow for LV opacification during stress, enhancing discrimination between myocardial tissue and blood pool, providing better visualization of the endocardial surface. Stress Echo feature on M9 includes a complete package for pharmacological stress and exercise stress echo. The package is supported by a flexible reporting system that can be optimized for your individualistic needs.AutoEF
Intelligent way to analyze 2D echo clips to automatically recognize diastole/systole frames and output EDV/ESV/EF etc. results by Simpson method.iNeedle™ (Needle Enhancement Visualization)
Advanced needle visualization allows the needle increased visibility even during steep-angled procedures, while maintaining superior image quality. Improved confirmation of needle location in tissue minimizes harm to surrounding tissue.Raw Data
Enables optimum flexibility for post processing of the stored images including parameter adjustments, adding comments and measurements, allowing maximum productivity during scanning.
Auto IMT (Intima-Media Thickness)
Auto measurement of anterior and posterior wall thickness providing accurate carotid status.
Auto LV
Simple measurement procedure for left ventricle enhanced by auto-trace functionality and easy manual correction.
iStation™
Mindray’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively.iTouch™
Gain instant auto image optimization in B, Color and PW Modes on the click of a single key.

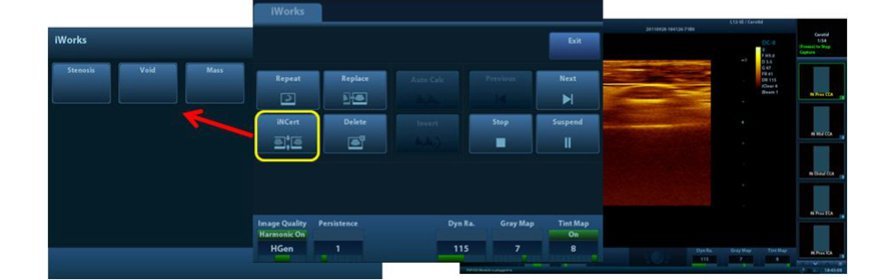

iWorks™
A smart tool to let you focus more on the patient.Helps in significantly reducing the patient scan time through standardization and user-defined capability.
iScanhelper
Dedicated inbuilt tutorial software, iScanHelper provides you with an interface to learn “How & What” of ultrasound scanning. Supported with excellent practical examples and illustrations, iScanHelper, with its easy and practical usability, is an effective educational tool either for beginners or experienced professionals.Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
