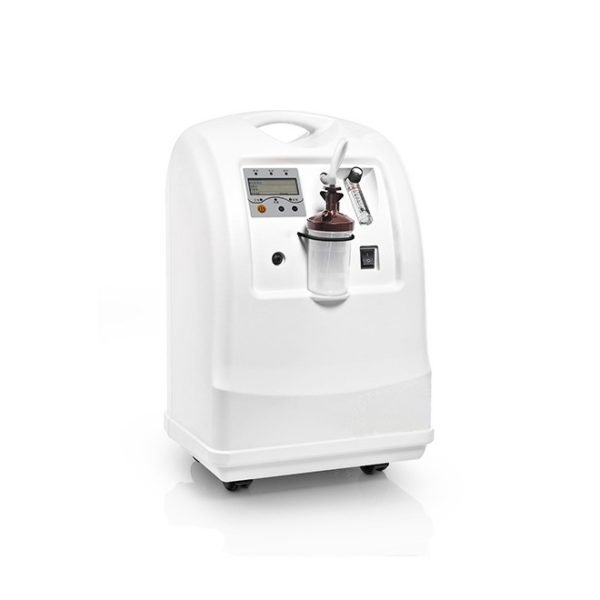

Medical Oxygen Concentrator with Oxygen Nebulization 5L/min NEU5N
- Medical Oxygen Concentrator with Nebulization feature
- Delivers a maximum flow rate of 5L/min
- Oxygen concentration of 93±3% (V/V)
- Low power consumption of ≤ 480W
- Operates at a noise level of ≤52dB (A)
- Continuous working time of up to 15,000 hours
- Model number: MSL-5N
- Rated for AC220±10% 50±1 operation voltage
- Compact dimensions: 465*375*710 mm
- Net weight: 15 kg
- SKU
- NEU5N
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Medical Oxygen Concentrator with Oxygen Nebulization 5L/min NEU5N
A compact, efficient oxygen concentrator delivering up to 5L/min of medical-grade oxygen with integrated nebulization capability. Designed for continuous clinical use with minimal power consumption and ultra-quiet operation, ideal for hospitals, clinics, and home care settings.
Clinical overview
The NEU5N Medical Oxygen Concentrator is engineered for reliable, continuous oxygen delivery in demanding clinical environments. With a maximum flow rate of 5L/min and oxygen concentration of 93±3% (V/V), it meets international standards for medical oxygen therapy. The integrated nebulization feature enables simultaneous aerosol medication delivery, making it ideal for patients requiring both supplemental oxygen and inhaled therapeutics.
Operating at just ≤52dB(A), the device minimizes noise disturbance in patient care areas. Its compact footprint (465×375×710 mm) and modest 15 kg weight facilitate flexible placement in hospitals, clinics, and home care settings. With a continuous working time of up to 15,000 hours and low power consumption (≤480W), the NEU5N delivers cost-effective, sustainable oxygen therapy without compromising clinical performance.
Key features & surgeon benefits
High-Purity Oxygen Delivery
- 93±3% oxygen concentration meets clinical standards
- Adjustable flow rate 0–5 L/min for patient-specific titration
- Stable outlet pressure 0.04–0.07 MPa for consistent therapy
Integrated Nebulization
- Combined oxygen therapy and aerosol medication delivery
- Reduces need for separate nebulizer units
- Streamlines patient setup and care protocols
Efficient, Low-Cost Operation
- Power consumption ≤480W minimizes utility costs
- 15,000-hour continuous service life reduces replacement frequency
- Compact design saves facility space and infrastructure investment
Quiet, Patient-Friendly Design
- Ultra-quiet operation at ≤52dB(A) minimizes patient stress
- Lightweight (15 kg) and portable for flexible deployment
- AC220±10% 50±1 Hz operation compatible with standard facilities
Technical specifications
| Model | MSL-5N |
|---|---|
| Indications | Oxygen therapy, respiratory support, aerosol medication delivery |
| Max. Flow Rate | 5 L/min |
| Oxygen Concentration | 93±3% (V/V) |
| Oxygen Flow Range | 0–3 L/min |
| Outlet Pressure | 0.04–0.07 MPa |
| Power Consumption | ≤480W |
| Operation Voltage | AC220±10% 50±1 Hz |
| Sound Level | ≤52 dB(A) |
| Continuous Working Time | 15,000 hours |
| Net Weight | 15 kg |
| Dimensions | 465×375×710 mm (W×D×H) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Oxygen Concentrator Unit | MSL-5N with integrated nebulization module | 1 |
| Power Cord | AC110V/220V 50/60Hz rated | 1 |
| Oxygen Outlet Tubing | Medical-grade oxygen delivery tubing | 1 |
| Nebulizer Cup | Standard nebulization chamber | 1 |
| User Manual | Operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our clinical sales team to discuss pricing, bulk orders, and facility integration options for the NEU5N oxygen concentrator. We provide rapid delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
