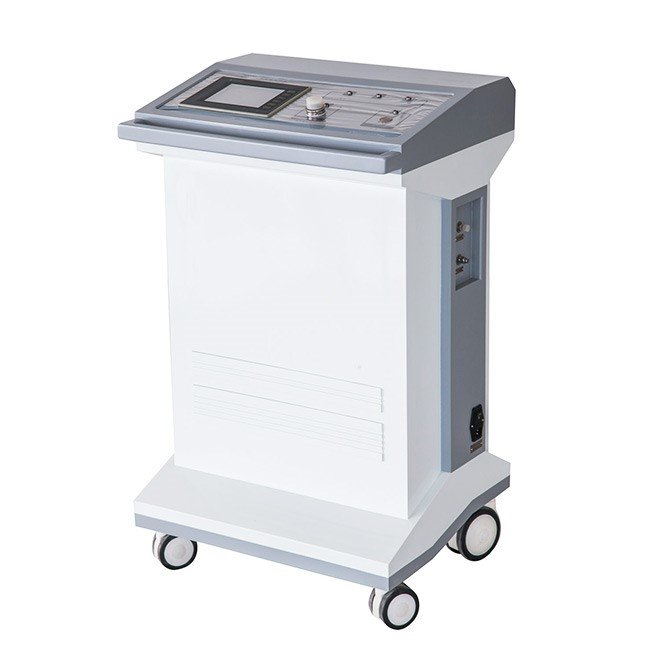

Medical Ozone Therapy Unit MSLOT02
- First registered domestic large-scale medical ozone therapy device;
- Self-correction of ozone concentration under disturbed parameters of pressure and temperature – a must-have function of the third generation medical ozone therapy devices;
- Automatic restoration of ozone catalytic reduction system at 60ºC constant temperature and 120ºC programmed heating;
- Built-in ozone gas temperature and pressure sensor, gas leakage and overpressure protective valve for its safety and effectiveness;
- Adoption of original German SIEMENS S7 series for the main control system;
- The efficient and longevity ozone generator adopting advanced German titanium alloy substrate and ceramic plate dielectric surface discharge technology;
- Model ZAMT-2203 UV LED light source Ozone Concentration Sensor has won national scientific and technological achievements appraisal for its national initiative technology;
- 18 state patents acquired for each technology of the unit.
|Mains Input: AC220V 50Hz||Input Oxygen Pressure: 100-150kPa|
|Power: ≤260vA||Output Ozone Concentration: 5-80mg/L|
|Fuse: (2×)T2A 250V||Display Error: ≤±3%(Maximum Concentration)|
|Operating Temperature: +5ºC-+40ºC||History Records: 1000 items|
|Relative Humidity: 30~80%(No Condensation)||Size(L*W*H): 620×525×1010mm|
|Input Oxygen Flow Range: 0.3-4L/Min||Weight: 39kg|
Clinical Application of Medical Ozone Technology
Intra Cervical and Lumbar Disc injection & Intra-articular to treat Cervical and Lumbar Disc Herniation and Osteoarticular diseases.
Ozone sauna and simultaneously nerve root blockage in lateral vertebra to treat herpes zoster, rash and post herpetic neuralgia.
Ozone infiltration injection on local pain spot totreat motor system soft tissue injury pain, Per arthritis of shoulder and arthritis, etc.
Ozone autologous blood transfusion with ozone Rectal Insufflation (MAH+RI) to treat acute / chronic viral hepatitis type B&C, drug hepatitis, hepatic protection for chemotherapy (NHL), chronic ulcerative colitis.
Ozone autologous blood transfusion to treat:
– Viral hepatitis type C, cardiovascular and cerebrovascular diseases such as: coronary sclerosis, difficult brain blood-supply, apoplectic artery obstructive disease, etc.
– Peripheral vascular diseases such as: arterial obstructive diseases, thrombosis obliterans vasculitis, gout, diabetic limb ischemia, etc.
– Hyperlipidemia, strengthen the fat (cholesterol and triglyceride) decomposition, resistance to free radicals and prevent aging.
Ozone sauna to treat refractory skin ulcer and injury, such as diabetic foot, bedsore, burn ulcer surface, etc.
Dentistry and other applications: Periodontitis, decayed tooth disinfection, wound disinfection, etc.
Health care and hairdressing effect: After drinking the ozone water and taking the ozone water bath to lose weight, dispel fatigue, conduce to refection, remove age pigment, etc.
