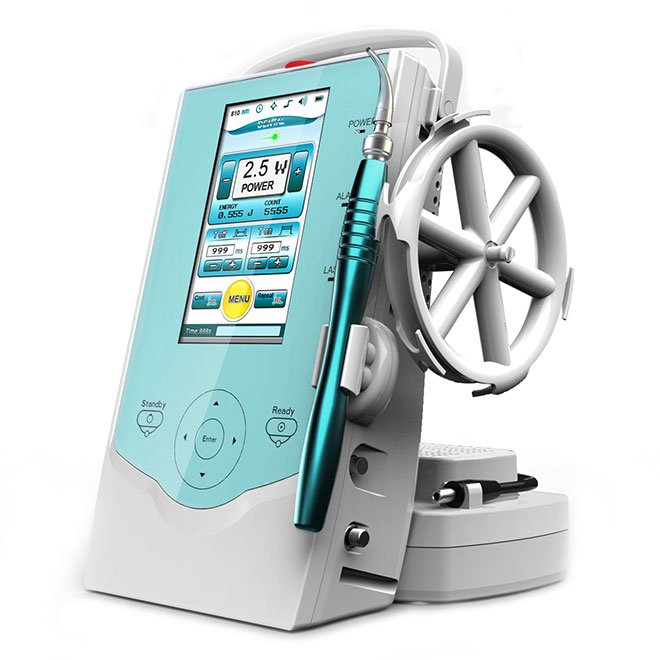

Mini Dental Diode Laser System Machine NEUDLS03
- Mini Dental Diode Laser System NEUDLS03 for precise dental treatments
- Semiconductor laser technology with a wavelength of 980nm±10nm
- Output power range of 0.1W to 10W for versatile applications
- Operation modes: Continuous Wave (CW) and Pulse for customized usage
- Aiming beam with adjustable brightness at 635nm±10nm, 4mW max
- User-friendly color LCD touch screen for easy operation
- Compact dimensions: 204 mm x 120 mm x 76 mm; lightweight at approx. 2 kg
- Air cooling system ensures optimal performance and safety
- Class 4 laser with Safety classification Classâ… Type B
- Powered by Li-ion battery (22.2V/2.2AH) and compatible power supply adapter
- SKU
- NEUDLS03
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Mini Dental Diode Laser System Machine NEUDLS03
Precision semiconductor diode laser system engineered for versatile dental applications. Delivers 980nm wavelength output with adjustable power from 0.1W to 10W in both continuous and pulsed modes. Compact, battery-powered design with intuitive LCD touch interface for optimal clinical workflow.
Clinical overview
The NEUDLS03 is a compact, portable diode laser system designed for precision dental applications. Operating at 980nm wavelength, this Class 4 laser delivers controlled thermal energy for soft tissue ablation, hemostasis, and coagulation. The dual-mode operation (continuous wave and pulsed) enables clinicians to tailor treatment parameters to specific clinical scenarios, from routine periodontal procedures to more complex soft tissue management.
Weighing approximately 2 kg with dimensions of 204 × 120 × 76 mm, the system is engineered for handheld use in clinical and surgical settings. The integrated Li-ion battery (22.2V/2.2AH) provides cordless operation, while the air-cooling system maintains optimal thermal management during extended procedures. The 635nm red aiming beam with adjustable brightness ensures precise targeting, and the intuitive color LCD touch screen simplifies parameter adjustment and workflow integration.
Key features & surgeon benefits
Adjustable Power & Dual-Mode Operation
- Output range 0.1W–10W for versatile clinical applications
- Continuous Wave (CW) and Pulse modes with adjustable pulse width (1–1000ms)
- Red aiming beam (635nm, 4mW max) with brightness control for accurate targeting
Portable & User-Friendly Design
- Compact handheld form factor (204 × 120 × 76 mm, ~2 kg)
- Intuitive color LCD touch screen for real-time parameter adjustment
- Cordless Li-ion battery operation with desktop power supply adapter option
Class 4 Laser with Safety Classification
- Safety classification Class I Type B ensures clinical compliance
- Air cooling system for optimal thermal management and extended operation
- SMA 905 fiber connector with core size ≥200µm for approved light delivery systems
OEM Integration & Flexible Configuration
- Compatible with approved fiber delivery systems (NA 0.22–0.48)
- Custom wavelength and power configurations available
- Integration support for dental practice management systems
Technical specifications
| Laser Type | Semiconductor diode laser |
|---|---|
| Wavelength | 980nm ± 10nm |
| Output Power | 0.1W–10W (adjustable) |
| Operation Mode | Continuous Wave (CW) and Pulse |
| Pulse Width | 1ms–1000ms or continuous |
| Aiming Beam | 635nm ± 10nm, 4mW max, adjustable brightness |
| Fiber Connector | SMA 905 |
| Core Size | ≥200µm (approved systems only) |
| Numerical Aperture | NA = 0.22–0.48 |
| Laser Class | Class 4 |
| Safety Classification | Class I Type B |
| Operation Interface | Color LCD touch screen |
| Power Supply | SINPRO MPU100-108 desktop adapter (100–110V/240V~, 47–63Hz, 1.25–0.5A input; 25.7V, 3.89A max output) |
| Battery | Li-ion 22.2V/2.2AH |
| Cooling | Air cooling |
| Dimensions | 204mm (H) × 120mm (W) × 76mm (D) |
| Weight | Approximately 2 kg |
| Operating Temperature | 10°C–40°C (recommended 10–35°C for optimal heat dissipation) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Laser Unit | NEUDLS03 handheld diode laser system with integrated Li-ion battery | 1 |
| Power Supply Adapter | SINPRO MPU100-108 desktop power supply (100–110V/240V input) | 1 |
| Fiber Delivery System | Approved fiber with SMA 905 connector (core ≥200µm) | As specified |
| User Manual | Multilingual operation and safety guide | 1 |
| Carrying Case | Protective transport case | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system specifications, pricing, and delivery timelines. We provide comprehensive support for clinical integration and staff training.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
