ORTHOPROMED 1101 Mini Cannulated Drill
- Ergonomic design for comfortable handling
- Integrated handpiece with excellent sealing
- Fully autoclavable for easy sterilization
- Optimized weight distribution for enhanced balance and comfort
- Dual-trigger operation for speed control and direction switching
- Durable rotating lock mechanism
- Cordless motor for low noise and wear, ensuring longevity
- 2000 mA/h lithium battery for consistent and long-lasting power
- Handpiece made from PEEK, offering superior wear and water resistance
- Ideal for precision orthopedic applications
- SKU
- OPM1101
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

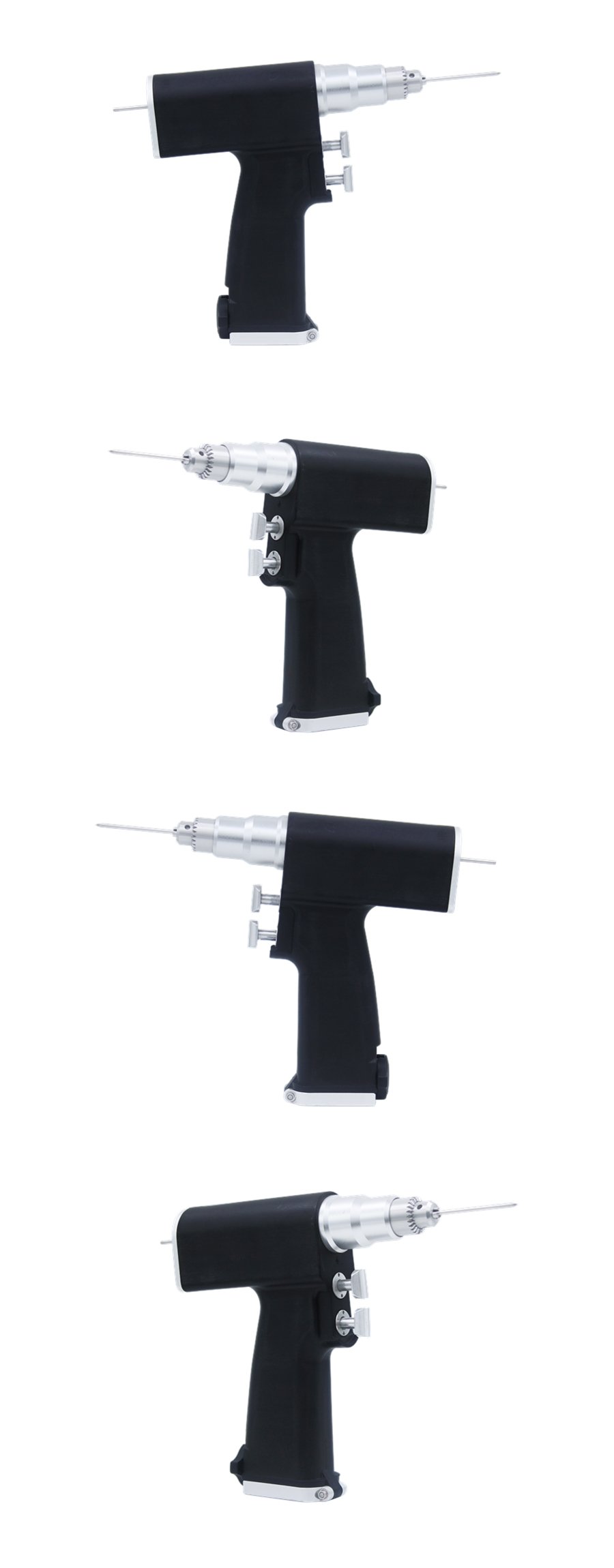

ORTHOPROMED 1101 Mini Cannulated Drill
Precision cordless orthopedic drilling system engineered for ergonomic comfort and clinical reliability. Dual-trigger operation, PEEK handpiece construction, and 2000 mAh lithium battery deliver consistent performance for minimally invasive orthopedic applications.
Clinical overview
The ORTHOPROMED 1101 Mini Cannulated Drill is a purpose-built cordless power system designed for precision orthopedic applications requiring controlled drilling and cannulated screw placement. Its integrated handpiece design with superior sealing ensures sterility and durability through repeated sterilization cycles. The ergonomic form factor and optimized weight distribution reduce surgeon fatigue during extended procedures while maintaining excellent tactile feedback and control.
Engineered with a high-performance cordless motor and 2000 mAh lithium battery, the system delivers consistent torque and speed across the full charge cycle. The dual-trigger mechanism—with independent direction switching and variable speed control—enables single-handed operation, improving workflow efficiency and reducing the need for tool changes during complex orthopedic cases.
Key features & surgeon benefits
Optimized for Comfort
- Ergonomic handpiece shape reduces hand fatigue
- Optimized weight distribution for enhanced balance and control
- Integrated design with excellent sealing integrity
Dual-Trigger Operation
- Top trigger for direction switching (forward/reverse)
- Bottom trigger for variable speed control
- Single-hand operation improves surgical efficiency
Cordless Power & Reliability
- High-quality cordless motor with low noise and minimal wear
- 2000 mAh lithium battery for consistent, long-lasting power
- Durable rotating lock mechanism for secure chuck retention
PEEK Construction & Autoclavability
- PEEK handpiece offers superior wear and water resistance vs. stainless steel
- Fully autoclavable for simplified sterilization workflows
- Extended service life with minimal maintenance

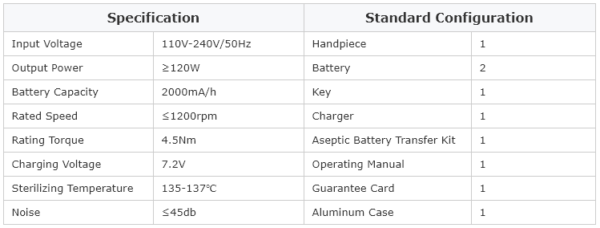

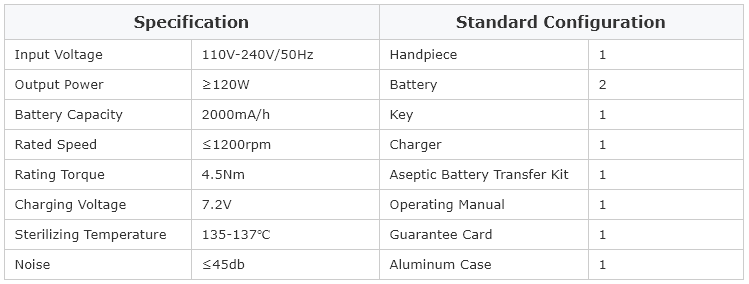

Technical specifications
| Indications | Orthopedic drilling, cannulated screw placement, precision bone work, minimally invasive orthopedic procedures |
|---|---|
| Sizes / range | Single unit configuration; compatible with standard orthopedic drill bits and cannulated systems |
| Material | PEEK handpiece; stainless steel components; lithium battery pack |
| Sterilisation | Fully autoclavable (handpiece and chuck assembly) |
| Battery | 2000 mAh lithium-ion; consistent and long-lasting power delivery |
| Motor | Cordless high-quality motor; low loss, low noise, low wear; extended service life |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ORTHOPROMED 1101 Handpiece | Cordless mini cannulated drill with integrated chuck and dual-trigger control | 1 |
| Lithium Battery Pack | 2000 mAh rechargeable battery with charging dock | 1 |
| Rotating Lock Chuck | Secure, durable chuck assembly for standard drill bit retention | 1 |
| Sterilization Case | Protective carrying and storage case for handpiece and battery | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, and OEM customization options for the ORTHOPROMED 1101 Mini Cannulated Drill. We offer fast delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
