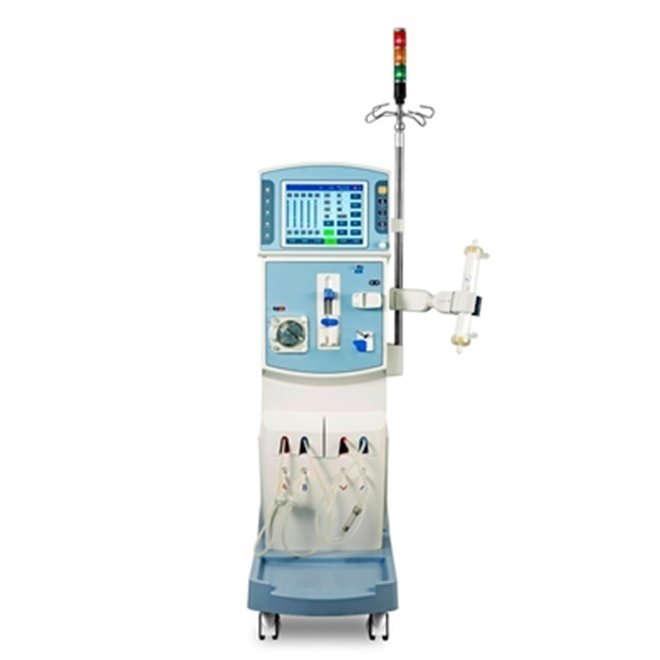

Portable Hemodialysis Machine NEUHM20

$17,900.00$19,500.00 (-8%)

In stock

*LCD touch screen with high definition(12.1″).
*Automation: Self-test, rinse, disinfection, hot disinfection, ISO UF, shutdown, etc. Automatically start treatment once blood flow sensed.
*Use with dialysis fluid of various formulas (acetate & bicarbonate).
*Single pump: Compatible with blood lines of different diameters.
*Blood pump driving motor is brushless.
*Double needle dialysis.
*Magnetic valves made in Switzerland in application.
*Gear pump imported from Italy and stepper motor from Japan.
*Dialysate flux linearity adjustable (300~800mL/min).
*Unique rotating knob adjust dialysate flux rate, more convenient for operator.
*Na+ and UF profile adjustment for patient most comfortable.
*Heparin Bolus with maximum speed up to 7.5ml/min
*One key START and one key STOP save operator’s time by starting all pre-stopped settings in one time.
*Large capacity system log storage
*In-built battery backup for at least 30 minutes.

Specifications

Clinical Application:

*Hemodialysis (HD)
*Pure Ultrafiltration (ISO UF)
*Hemoperfusion (HP)
*Plasma Exchange (PE)

Features:

*LCD touch screen with high definition(12.1″).
*Automation: Self-test, rinse, disinfection, hot disinfection, ISO UF, shutdown, etc. Automatically start treatment once blood flow sensed.
*Use with dialysis fluid of various formulas (acetate & bicarbonate).
*Single pump: Compatible with blood lines of different diameters.
*Blood pump driving motor is brushless.
*Double needle dialysis.
*Magnetic valves made in Switzerland in application.
*Gear pump imported from Italy and stepper motor from Japan.
*Dialysate flux linearity adjustable (300~800mL/min).
*Unique rotating knob adjust dialysate flux rate, more convenient for operator.
*Na+ and UF profile adjustment for patient most comfortable.
*Heparin Bolus with maximum speed up to 7.5ml/min
*One key START and one key STOP save operator’s time by starting all pre-stopped settings in one time.
*Large capacity system log storage
*In-built battery backup for at least 30 minutes.

General Data:

*Dimensions: 470x850x1400mm (LxWxH)
*Weight: Appro. 85 Kg
*Water inlet pressure: 0.15~0.5MPa
*Water inlet temperature: 5~30℃
*Ambient temperature: 10~30℃
*Relative Humidity ≤70%
Extracorporeal Circuit:
*Arterial pressure monitoring:
Display range: -300~+400mmHg (±10mmHg)
*Venous pressure monitoring:
Display range: -50~+300mmHg (±10mmHg)
*TMP range: -100~+600mmHg (±5mmHg)
*Blood pump:
Flow range: 30~500mL/min
*Blood level detector: ultrasonic sensor.
*Air bubble detector: infrared sensor.
Threshold of reaction: single air bubble of 200 μI exists when blood flux is 200mL/min

*Heparin pump:
Delivery range: 1~10mL/hr
Accuracy: 0.2mL/hr
Bolus: 2.5ml/min (syringe 10ml), 5ml/min (syringe 20ml), 7.5ml/min (syringe 30ml)
Injector size: 10/20/30ml
Electrical Data:
*Power: ≤2200W
*Frequency: 50Hz
*Voltage: AC220V±10% (110V optional)
Dialysis Fluid Circuit:
*Dialysate flow range: linearity adjustable 300~800mL/min (±10m
*Dialysate temperature range: Selectable 33~40℃ (±0.5℃)
*Dialysate conductivity range: 12~15.5mS/cm (±0.2mS/cm)
*UF flow range:50~2000mL/hr (±30mL/hr)/(±1%)
*ISO UF flow range: 0~2000mL/hr (±30mL/hr)
*Blood leak detector:
Automatically close the blood loop when blood leak ≥1mL per liter dialysate (dialysate flow: 800mL/min)
Disinfection and Cleaning:
*Chemical Disinfection: use citric acid, peracetic acid and sodium
*Rinse
*Heat Disinfection
*Heat Chemical Disinfection
*Hot rinse temperature: 85℃



Blood pump flow rate 30~500 mL/min, Accuracy:±10 mL/min
 Heparin pump rate  1~10 mL/h, Accuracy:±0.2 mL/h
 Bolus  2.5ml/min (syringe 10ml), 5ml/min (syringe 20ml), 7.5ml/min (syringe 30ml)
 UF Flow Range  0~2000 mL/h, Accuracy:±30 mL/h (±5%)
 Dimensions  915*565*1575
 Weight  118
Power AC220V±10%, AC110V (optional) 50HZ
