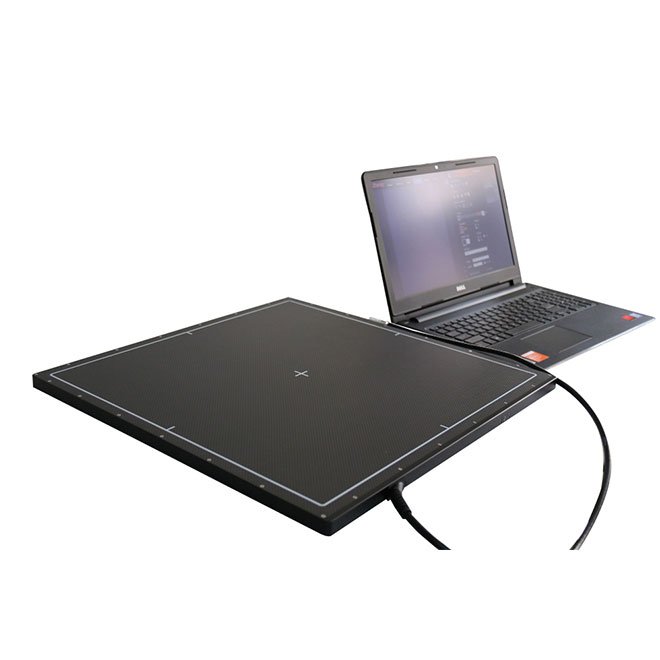

Portable High Resolution Flat Panel Detectors Machine NEUFP01
- Portable high-resolution flat panel detector
- Features scintillator options: CsI or GdOS
- Image size: 17×17 inch for versatile applications
- High pixel resolution: 3072(H) x 3072(V)
- Compact dimensions: 460 x 460 x 16 mm
- Fine pixel pitch of 140μm for detailed imaging
- Impressive spatial resolution of 3.7Lp/mm
- Equipped with DICOM DR workstation software - Staray 4.4.0
- Supports efficient patient management and query functionality
- Integrates urgent patient handling for timely information access
- SKU
- NEUFP01
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable High Resolution Flat Panel Detectors Machine NEUFP01
Advanced portable flat panel detector system delivering exceptional image quality for versatile radiographic applications. Features high-resolution 3072×3072 pixel imaging with selectable scintillator technology and integrated DICOM DR workstation software for seamless clinical workflow and patient management.
Clinical overview
The NEUFP01 is a state-of-the-art portable flat panel detector engineered for high-fidelity radiographic imaging in diverse clinical environments. With a 17×17 inch active area and 3072×3072 pixel resolution, it delivers exceptional spatial detail at 3.7 Lp/mm, enabling confident diagnostic interpretation across general radiography, orthopedic, and portable bedside applications.
The system integrates seamlessly with the Staray 4.4.0 DICOM DR workstation, providing comprehensive patient management, worklist query, and urgent patient handling capabilities. Its compact 460×460×16 mm footprint and 140 μm pixel pitch make it ideal for mobile and fixed installations requiring premium image quality without compromise.
Key features & surgeon benefits
Exceptional Spatial Resolution
- 3.7 Lp/mm spatial resolution for diagnostic clarity
- 3072×3072 pixel matrix for fine anatomical detail
- 140 μm pixel pitch ensures minimal noise and artifact
Integrated DICOM Workstation
- Staray 4.4.0 software with comprehensive patient management
- Worklist query and rapid patient information retrieval
- Urgent patient handling for time-critical cases
Compact & Versatile Design
- Compact dimensions: 460×460×16 mm for easy deployment
- 17×17 inch imaging area covers broad anatomical regions
- Ideal for mobile, bedside, and fixed installations
Flexible Scintillator Options
- Choice of CsI or GdOS scintillator materials
- Optimized for different clinical imaging protocols
- Customizable configurations for specialized applications
Technical specifications
| Indications | General radiography, portable X-ray imaging, diagnostic imaging |
|---|---|
| Image Size | 17×17 inch |
| Pixel Matrix | 3072(H) × 3072(V) |
| Pixel Pitch | 140 μm |
| Spatial Resolution | 3.7 Lp/mm |
| Dimensions | 460 × 460 × 16 mm |
| Scintillator | CsI or GdOS (selectable) |
| Software | Staray 4.4.0 DICOM DR Workstation |
| Warranty | 2 Year Manufacturer Warranty |

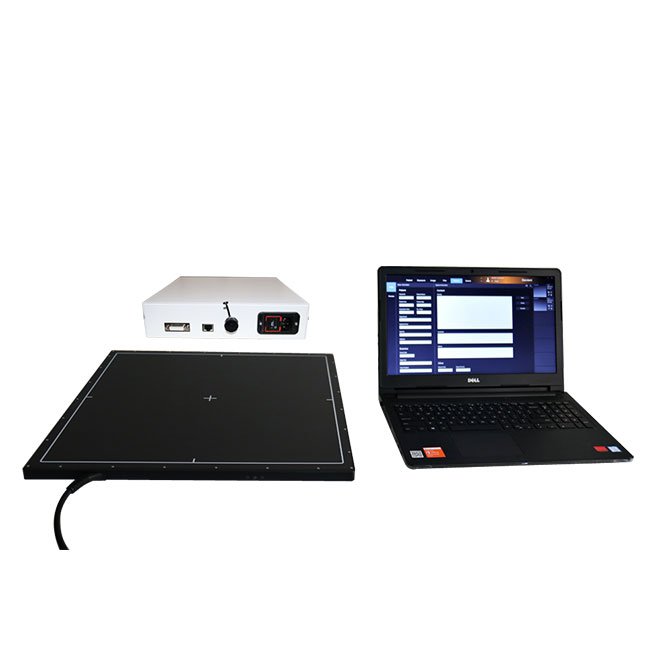

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Flat Panel Detector | NEUFP01 portable high-resolution detector with scintillator | 1 |
| DICOM Workstation Software | Staray 4.4.0 with patient management and query functions | 1 |
| Documentation | Technical specifications, user manual, and compliance certificates | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your imaging requirements, request detailed specifications, and explore financing options for the NEUFP01 portable flat panel detector system.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
