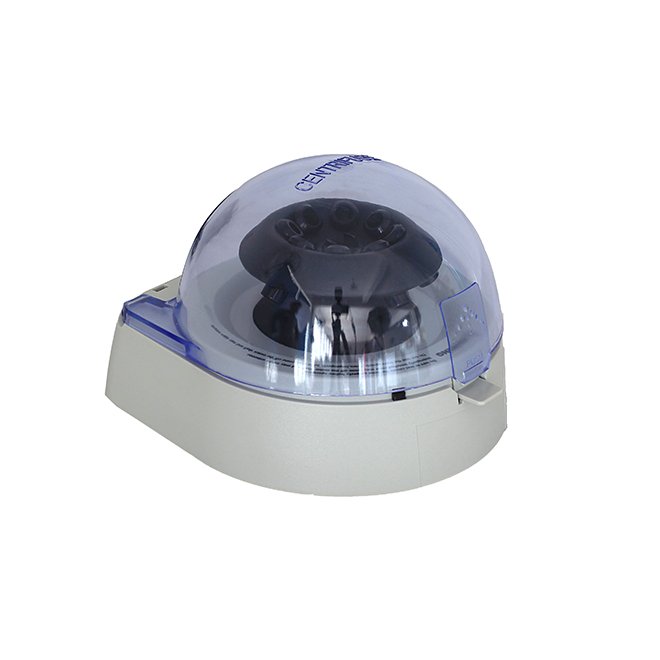

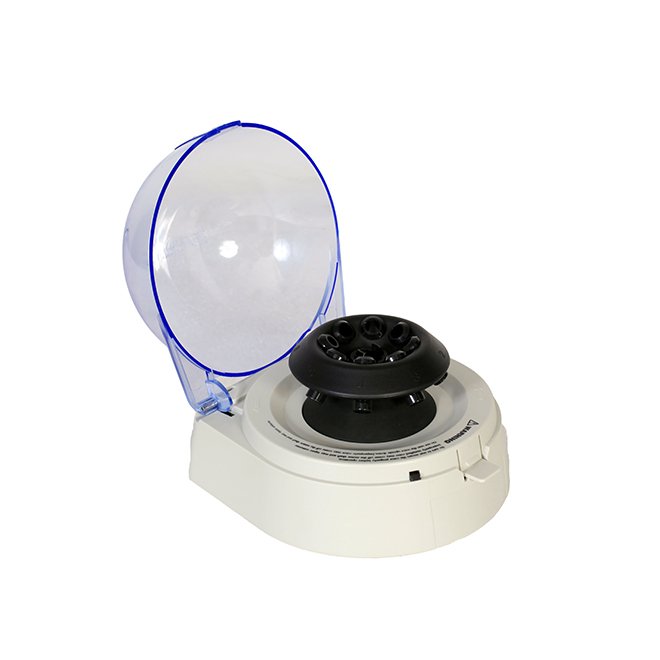

Portable Mini Centrifuge NEUHC47
- Compact and portable design for easy transport and storage
- Mute technology for low noise operation (≤45dB)
- Durable and reliable performance with brushless motors
- Two models available: MSLHC47A and MSLHC47B
- High-speed capability: up to 10,000 rpm on MSLHC47B
- Maximum RCF of 4000×g for efficient separation
- Accommodates multiple tube sizes: 1.5 ml, 0.5 ml, and 0.2 ml
- Microprocessor control for precise speed accuracy (+30r/min)
- Dual power supply compatibility: AC220V & 110V, 50Hz
- Lightweight design: Approximately 1 kg for ease of use
- SKU
- NEUHC47
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable Mini Centrifuge NEUHC47
Compact, quiet, and reliable benchtop centrifugation for clinical and diagnostic laboratories. Available in two models with speeds up to 10,000 rpm and maximum RCF of 4,000×g. Engineered with brushless motor technology and microprocessor control for precise, consistent performance.
Clinical overview
The NEUHC47 is a compact, portable benchtop centrifuge designed for high-throughput clinical and diagnostic laboratories. Its lightweight design (approximately 1 kg) and small footprint make it ideal for point-of-care testing, mobile clinics, and space-constrained environments. The dual-model range allows clinicians to select the appropriate speed and RCF for their specific separation requirements, from routine hematology to specialized serology applications.
Engineered with patent-pending mute technology, the NEUHC47 operates at noise levels ≤45 dB(A), minimizing laboratory ambient noise while maintaining full operational efficiency. Brushless motor technology ensures maintenance-free, reliable performance over extended service life, while microprocessor control delivers speed accuracy of ±30 r/min for reproducible results.
Key features & surgeon benefits
Compact & Lightweight Design
- Weighs approximately 1 kg for easy transport
- Dimensions: 130×150×130 mm (MSLHC47A) or 190×190×130 mm (MSLHC47B)
- Ideal for mobile clinics and point-of-care settings
High-Speed Separation
- MSLHC47A: up to 7,000 rpm (2,000×g RCF)
- MSLHC47B: up to 10,000 rpm (4,000×g RCF)
- Speed accuracy of ±30 r/min for consistent results
Maintenance-Free Operation
- Brushless DC or frequency-conversion motor technology
- Microprocessor control for precise operation
- Patent mute technology: ≤45 dB(A) noise level
Multi-Tube Capacity
- Accommodates 6×1.5 ml, 6×0.5 ml, or 6×0.2 ml tubes
- Optional 8×0.2 ml collecting pipe rotor
- Dual voltage: AC 220V & 110V, 50 Hz
Technical specifications
| Indications | Clinical sample separation, hematology, serology, diagnostic testing |
|---|---|
| Sizes / range | 1.5 ml, 0.5 ml, 0.2 ml tubes; 8×0.2 ml collecting pipe rotor option |
| Material | Durable composite housing with brushless motor |
| Sterilisation | As applicable |
| Packaging | Standard laboratory packaging with protective case |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Centrifuge unit (MSLHC47A) | 7,000 rpm, 2,000×g RCF, brushless DC motor | 1 |
| Centrifuge unit (MSLHC47B) | 10,000 rpm, 4,000×g RCF, frequency-conversion motor | 1 |
| Rotor assembly | Standard 6-tube capacity (1.5 ml, 0.5 ml, or 0.2 ml) | 1 |
| Optional rotor | 8×0.2 ml collecting pipe rotor | As ordered |
| Power cord | AC 220V & 110V, 50 Hz compatible | 1 |
| User manual | Operating instructions and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your centrifugation requirements, request detailed specifications, or arrange a product demonstration. We offer flexible ordering, OEM customisation, and rapid delivery worldwide.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
