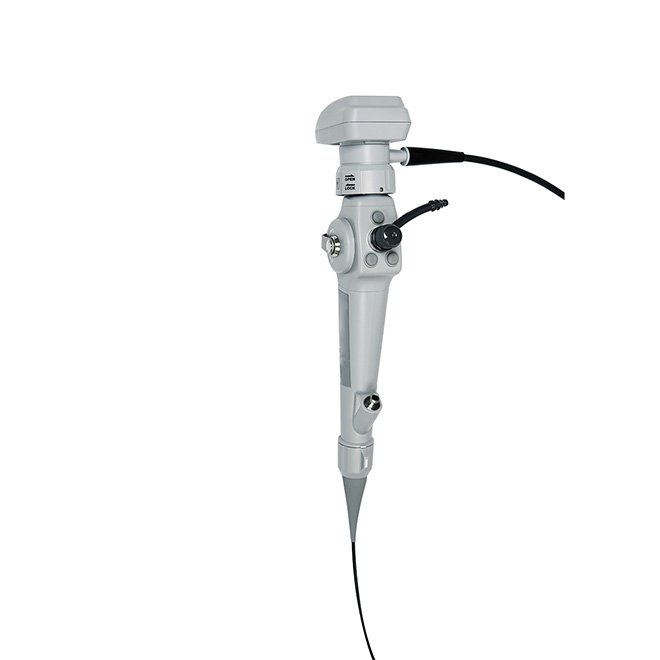

Veterinary Endoscope NEUGA285
$10,990.00$11,990.00 (-8%)

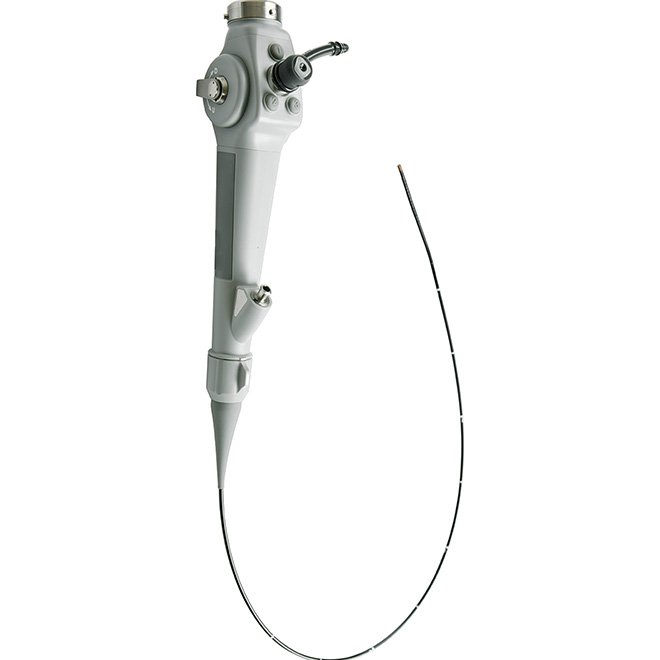

– High-resolution veterinary endoscope with CMOS image sensor
– Flexible insertion tube with outer diameters of Ø 2.8mm to Ø 5.2mm
– Multi-function buttons for zoom, capture/record, and freeze
– 120° left/right rotation and 180° video cable rotation for easy maneuverability
– Water-proof grade IPX7, compliant with BS ISO 8600-7-2012
– Compatible with 10″ touch-screen image processor (MSLGA285)
– Compact and portable design, weighing ≤1100g
– Supports recording in JPG and AVI formats with 64GB memory capacity
– Operating conditions: 10℃-40℃ temperature and 30%-85% humidity
– Bending flexibility of U210°/D130° for enhanced clinical versatility
Specifications
Multi-function Buttons
①Zoom ②Capture/Record ③Freeze
120° Left/Right Rotation
Relieve fatigue of wrist rotation
Divided structure
Compatible with all products
Video cable with 180° rotation
Easy operation
Portable

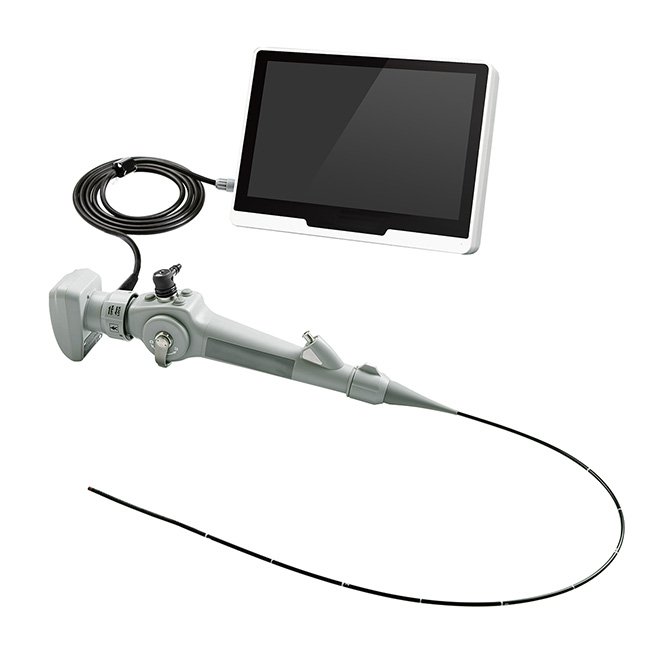

Compatible with 10″ image processor (MSLGA285) with touch-screen
|
Operation Part |
|||||
| Type | Flexible | ||||
| Image Sensor | CMOS (Complementary Metal Oxide Semiconductor),Chip-on-tip | ||||
| System Resolution | 9 line pairs/mm | ||||
| View Angle | 120° | ||||
| Direction of View | 0° | ||||
| View Depth | 3-200° | ||||
| Insertion Tube OD | Ø 2.8mm | ||||
| Outer Diameter | Ø 2.8mm | Ø 3.1mm | Ø 3.8mm | Ø 5.2mm | |
| Channel ID | Ø 1.2mm | Ø 1.2mm | Ø 1.5mm | Ø 2.8mm | |
| Bending(up/down) | U210°/D130° | U210°/D130° | U180°/D130° | U180°/D130° | |
| Insertion Rotation | L120°/R130° | L120°/R130° | L120°/R130° | L120°/R130° | |
| Working Length | 610mm | 610mm | 1000mm | 1000mm | |
|
Enlarge View of Tip |
|
||||
|
Compatible Image Processor |
|
||||
| Control Button | Three Buttons(Photograph recording ,freeze, image sizes) | ||||
| Water Proof Grade | Equals to IPX7 and complied to BS ISO 8600-7-2012 | ||||
|
Environment |
Operating Condition | Temperature:10℃-40℃,atmospheric pressure:700-1060hPa,Humidity:30%-85% | |||
| Storage Condition | Temperature:-47℃-70℃,atmospheric pressure:700-1060hPa,Humidity:10%-95% | ||||

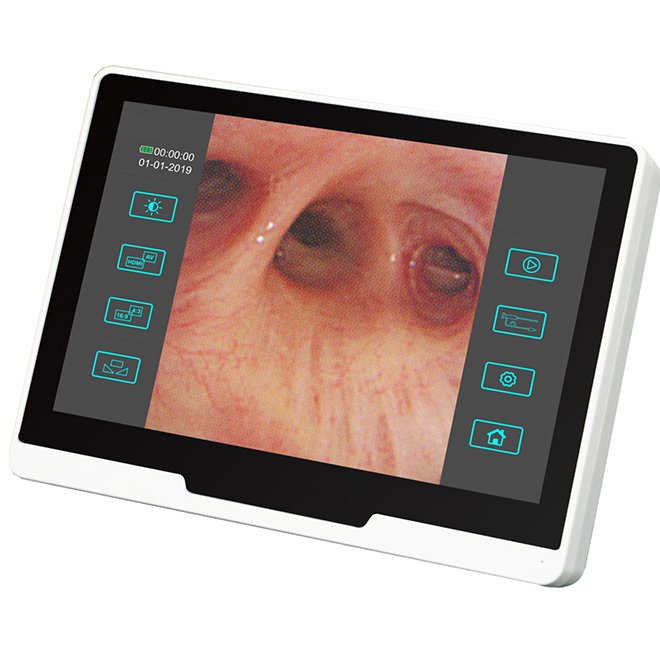

| Name | Image processor |
| Weight | ≤1100g |
| Size | 250mm×182mm×45mm |
| Screen | Description |
| Screen Size | 10.1 inch |
| Screen Type | TFT touch screen |
| Length-width Ratio | 16:10 |
| Resolution | 1280×800 |
| Connectors | Description |
| Video Input | 10 pin lemo plug |
| Video Output | BNC(CVBS), HDMI |
| Photo and Video store | SD card |
| Power Supply | Description |
| Power Adapter | AC 100-240V 50-60Hz(input) DC 12V (output) |
| Battery | Build-in lithium rechargable battery(3.7 V )×4 |
| Recording Function | Description |
| Recording Format | JPG for photograph,AVI for video |
| Memory Capacity | 64GB |
| Function Button | Description |
| Menu | Show or hide menu |
| Playback | Playback recording |
| Device information | Display current device model |
| Setting | Enter setting menu |
| Home | Exit to home page |
| Brightness | Adjust brightness |
| Output Selection | Select AV or HDMI output port |
| Image Ratio Adjucting | Adjust to extra screen of 16:9 or 4:3 |
| White Balance | Manual white balance |
