- Single beam visible spectrophotometer with manual wavelength setting
- Ideal for routine analysis and general experiments
- Microprocessor controlled for easy auto Zero and auto 100% T adjustment
- High resolution with a 12000 line grating monochromator
- USB port for data connection with PC and parallel port for printing
- Compact design saves bench space and easy to transport
- Four display modes: absorption, transmittance, concentration, and coefficient
- Wavelength range of 325-1000nm with ±1nm accuracy
- Equipped with a tungsten halogen lamp as the light source
- Stability of ± 0.002A/h at 500nm for reliable measurements
Single-beam visible spectrophotometer with microprocessor control and manual wavelength setting. Ideal for routine analysis, general experiments, and clinical laboratory applications requiring high-resolution optical measurements with compact bench-top design.
The NEUUV08 is a single-beam visible spectrophotometer engineered for routine laboratory analysis and general experimental work. With microprocessor control, it delivers reliable absorbance, transmittance, concentration, and coefficient measurements across the 325–1000 nm wavelength range. The 12,000-line grating monochromator ensures high spectral resolution and low stray light, making it suitable for clinical chemistry, pharmaceutical analysis, and quality control applications where cost-effectiveness and ease of operation are paramount.
Featuring a tungsten halogen lamp light source and silicon photodiode detector, the NEUUV08 provides excellent stability (±0.002 A/h at 500 nm) and photometric accuracy (±0.5% T). The compact bench-top design saves laboratory space while maintaining full optical performance, including a 120 mm wide sample compartment and long optical path monochromator. USB and parallel port connectivity enable seamless data export to PC and direct printing, streamlining workflow integration in modern laboratory environments.
| Optical System | Single Beam, Grating 12,000 lines/mm |
|---|---|
| Wavelength Range | 325–1000 nm |
| Spectral Bandwidth | 4 nm |
| Wavelength Accuracy | ±1 nm |
| Wavelength Repeatability | 0.5 nm |
| Photometric Accuracy | ±0.5% T |
| Photometric Repeatability | 0.3% T |
| Photometric Modes | T (Transmittance), A (Absorbance), C (Concentration), F (Coefficient) |
| Stray Light | ≤0.3% T |
| Stability | ±0.002 A/h @ 500 nm |
| Display | 4-digit LED |
| Detector | Silicon Photodiode |
| Light Source | Tungsten Halogen Lamp |
| Data Output | USB Port & Parallel Port (Printer) |

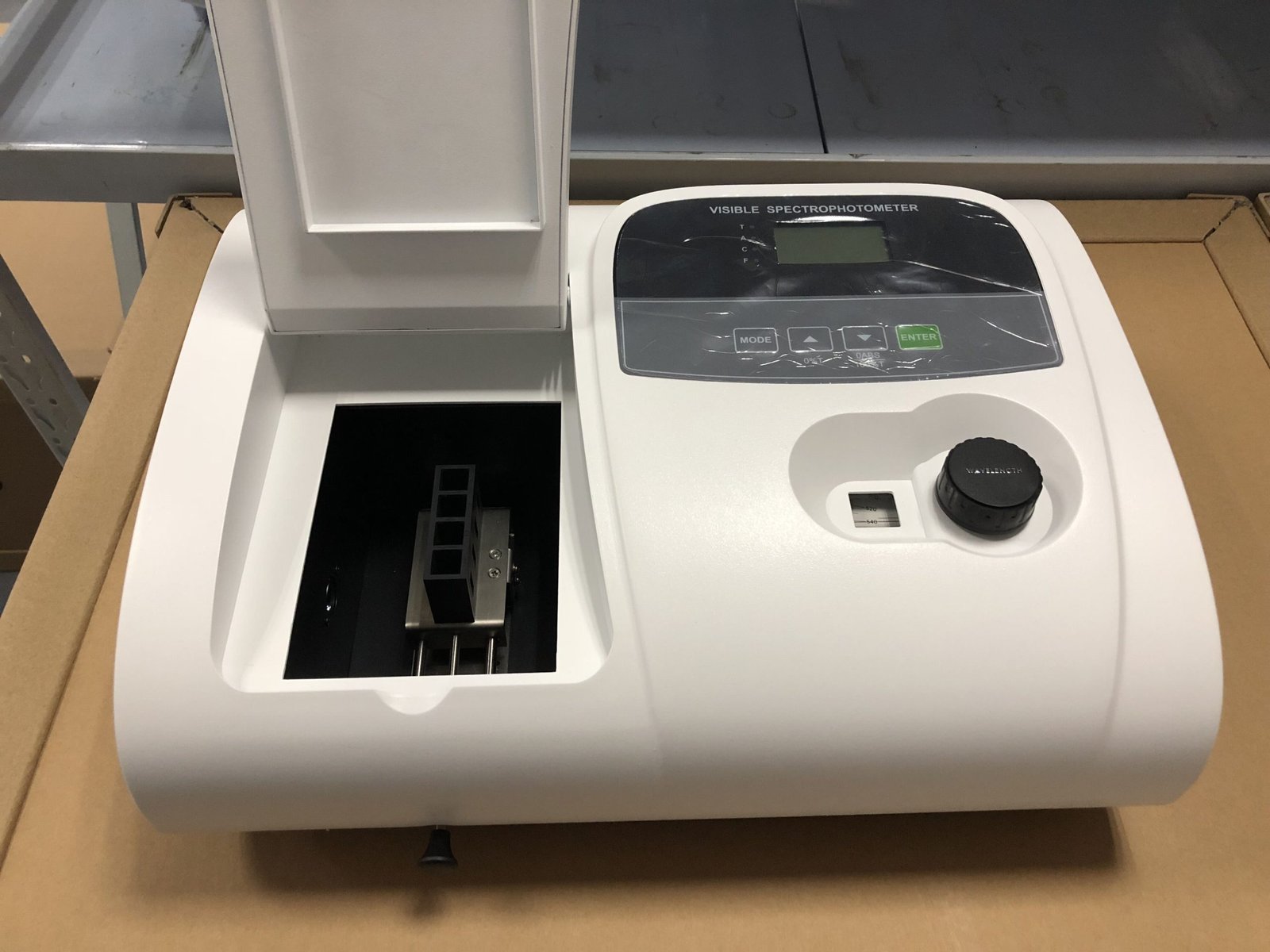

| Sample Compartment | 120 mm wide |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Main Unit | NEUUV08 Visible Spectrophotometer with microprocessor control | 1 |
| Power Cable | AC power supply cable with appropriate regional connector | 1 |
| USB Cable | USB Type-A to device connector for PC data transfer | 1 |
| Sample Cuvettes | Standard optical glass cuvettes (10 mm path length) | 2 |
| User Manual | Comprehensive operation and maintenance guide | 1 |
| Calibration Certificate | Factory calibration documentation | 1 |
Contact our sales team to discuss your laboratory spectrophotometry requirements, request detailed specifications, or arrange a demonstration of the NEUUV08. We offer flexible delivery options and comprehensive technical support.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Wavelength accuracy checks against our filters have been within tolerance and the baseline is steady after warm-up. Absorbance readings are reproducible for routine assays.
Dr. Rosemary Aldridge, MD, PhDVerified buyerApr 3, 2025
The cuvette holder seats consistently and stray light appears well controlled at the higher absorbances. A dependable instrument for colorimetric work.
Sunil Kapoor, MLSSep 1, 2025
The photometric performance is solid and linear across our standards, but the display and menu feel dated and slow. Still perfectly usable for routine measurements.
Dr. Ingeborg Holm, MDFeb 22, 2025
