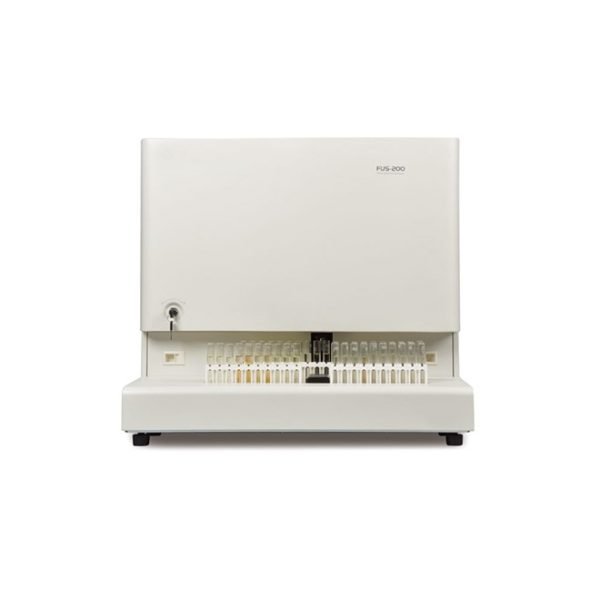

Accurate Urine Sediment Analyzer Machine FUS-200
- High-speed urine sediment analysis at 120 samples/hour
- Advanced flow cytometry and high-depth imaging technology
- AI-based identification of various cell types and substances
- Auto loader capacity for 50 samples to streamline processing
- Minimum sample volume requirement of 3ml non-centrifugal urine
- Extensive data storage capability for up to 10,000 results
- Quad-core processor workstation with Windows OS compatibility
- Bidirectional connectivity to LIS/HIS and DIRUIH-800 Automatic Urine Analyzer
- Accurate result deviation within ±8.0% and high specificity rates
- Designed for use in controlled environments (10℃-30℃, 20%-80% humidity)
- SKU
- FUS-200
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Accurate Urine Sediment Analyzer Machine FUS-200
High-speed automated urine sediment analysis with advanced flow cytometry and AI-based cell identification. Processes 120 samples per hour with minimal sample volume and comprehensive data management for clinical and reference laboratories.
Clinical overview
The FUS-200 Accurate Urine Sediment Analyzer delivers rapid, objective analysis of urine sediment with minimal operator intervention. Employing advanced flow cytometry and high-depth imaging technology, the system captures 650 frames per sample to ensure comprehensive cellular and substance identification. The AI-based classification engine recognizes red blood cells, white blood cells, epithelial cells, casts, bacteria, yeast, sperm, and other clinically relevant elements with high specificity and repeatability.
Designed for high-volume laboratory environments, the FUS-200 processes 120 samples per hour with a 50-sample auto loader, reducing manual handling and turnaround time. The quad-core processor workstation runs Windows OS and integrates bidirectionally with LIS/HIS systems, enabling seamless data flow and consolidated result reporting. With storage capacity for up to 10,000 results and connectivity to the DIRUIH-800 Automatic Urine Analyzer, the FUS-200 supports comprehensive urinalysis workflows in clinical, reference, and research settings.
Key features & surgeon benefits
High-Speed Analysis
- 120 samples per hour processing capacity
- 50-sample auto loader for batch processing
- Minimal 3 ml non-centrifugal sample volume requirement
Advanced Imaging & AI
- Flow cytometry with high-depth field imaging
- 650 frames captured per sample for detailed analysis
- AI-based identification of 10+ cell and substance types
Clinical-Grade Performance
- Result accuracy within ±8.0% maximum relative deviation
- Test repeatability CV ≤ 10%
- >80% automatic specificity; ≥95% with manual verification
Seamless Workflow
- Bidirectional LIS/HIS connectivity
- Compatible with DIRUIH-800 Automatic Urine Analyzer
- Storage for up to 10,000 results with consolidated reporting
Technical specifications
| Indications | Urine sediment analysis; identification of red blood cells, white blood cells, epithelial cells, casts, bacteria, yeast, sperm, and other cellular elements |
|---|---|
| Throughput | 120 samples per hour |
| Test Principle | Flow cytometry; high-speed, high-depth field imaging technique with AI classification |
| Image Capture | 650 frames per sample |
| Auto Loader Capacity | 50 samples |
| Sample Volume | Minimum 3 ml non-centrifugal urine (5 ml for integrated system); aspiration volume ~1 ml |
| Workstation | Quad-core processor, Windows operating system, bidirectional LIS/HIS connectivity |
| Data Storage | ≥10,000 results capacity |
| Dimensions | 700 mm × 720 mm × 640 mm (with auto loader expansion kit) |
| Result Accuracy | Maximum relative deviation ±8.0% |
| Repeatability | CV ≤ 10% |
| Specificity (Automatic) | >80% |
| Specificity (Manual Verification) | ≥95% |
| Power Supply | AC 100–110V/240V, 50/60 Hz |
| Operating Temperature | 10°C–30°C |
| Relative Humidity | 20%–80% |
| Atmospheric Pressure | 860 hPa–1060 hPa |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| FUS-200 Analyzer | Main urine sediment analysis unit with flow cytometry and imaging system | 1 |
| Auto Loader Module | 50-sample capacity automated sample loader with expansion kit | 1 |
| Workstation | Quad-core processor computer with Windows OS and LIS/HIS interface | 1 |
| Imaging Optics | High-depth field imaging and flow cytometry optical system | 1 |
| Sample Aspiration System | Automated sample handling and aspiration mechanism (~1 ml per sample) | 1 |
Get in touch for pricing & availability
Contact our laboratory equipment specialists to discuss system configuration, pricing, and integration with your existing urinalysis workflow. We provide comprehensive technical support and training for all FUS-200 installations.
