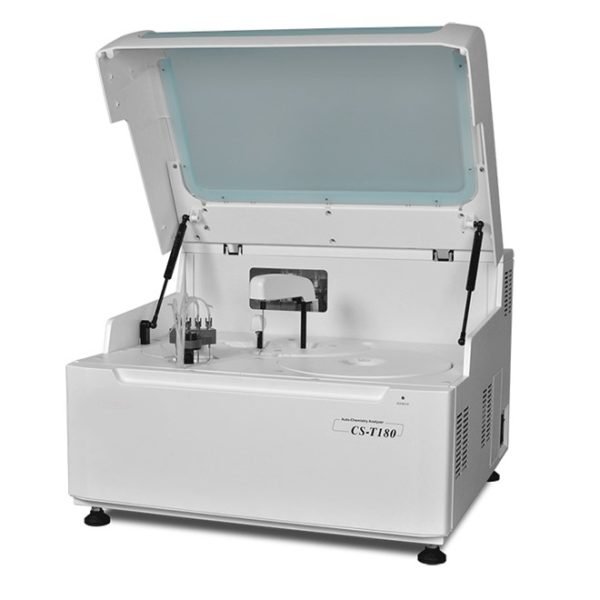

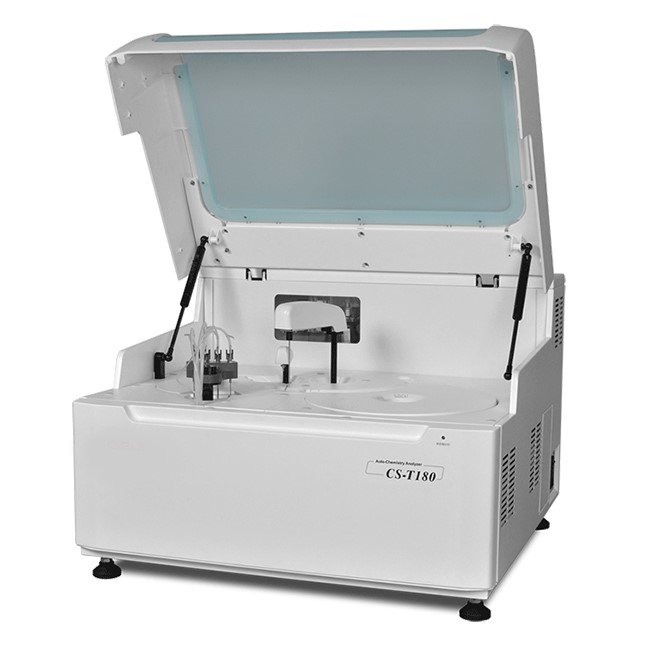

Auto-Chemistry Analyzer CS-T180
$17,700.00$19,000.00 (-7%)
1.High reagent and sample capacity (80 positions) flexibility
2.Automatically hemolysis function, easy operation and standardization for HbA1c test
3.Digital liquid level detection high sensitivity avoids bubbles’ interference
4.Collision Protection
5.Visual QC assessment
6.Low water consumption
7.Small size, easy to place in narrow space
Specifications
Features of Auto-Chemistry Analyzer CS-T180:
1.High reagent and sample capacity (80 positions) flexibility
2.Automatically hemolysis function, easy operation and standardization for HbA1c test
3.Digital liquid level detection high sensitivity avoids bubbles’ interference
4.Collision Protection
5.Visual QC assessment
6.Low water consumption
7.Small size, easy to place in narrow space
Specification of Auto-Chemistry Analyzer CS-T180:
1.Overall performance
Equipment type: Fully automatic, discrete, STAT priority
Analysis Throughput: 180T/h (single/double reagent) 540T/h combined with ISE
Test principle: Colorimetry, turbidimetry
Analysis method: End-point, kinetics, fixed-time, etc.
2.Sample reagent unit

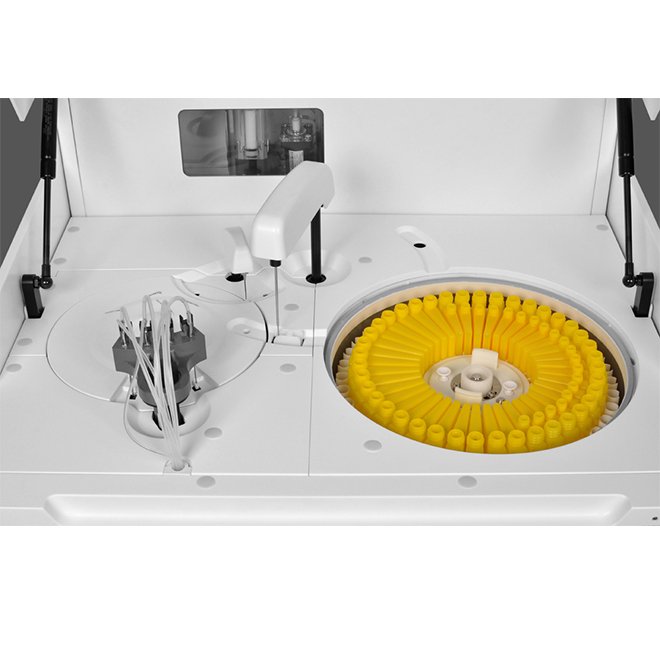

Sample reagent position Up to 80 positions
Sample cuvettes specification Standard cup, original blood tube, multi-specification tube available (Φ10~13)mm×(75~100)mm

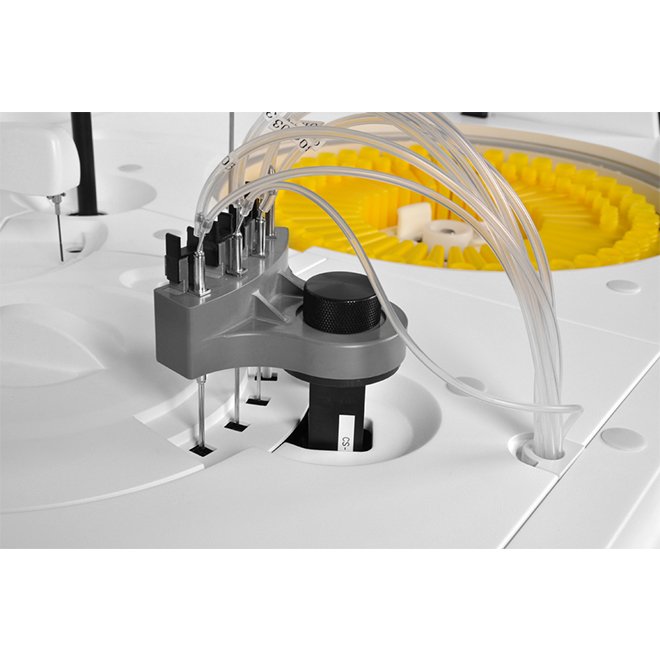

Sample reagent probe Liquid level detection and collision detection
3.Reaction unit
Reaction cuvette 56 positions optical plastic cup
Total volume of reaction liquid 100μl～360μl
Reaction temperature 37℃
Reaction disk constant temperature Air bath
Mixer Mix immediately after adding reagent
Wastewater treatment With the function of concentrated waste liquid level alarming
4.Optical system
Light source 20W/12V halogen lamps.
Monochromator Grating photometry
Photoelectron road After spectrophotometry
Wavelengths 340nm~800nm
Detector Photodiode LED array
5.Calibration and QC
Calibration method 1 point linear method, 2 point linear method, multiple point linear method, non-linear method
Calibration tracking Automatic description calibration K-value trends
QC method Real-time QC, daily QC and monthly QC
Out of control processing: Alarming for out of control sample, record lost control reason
6.Operating system
PC operating system Windows 7 or Windows 10
Analysis control software Graphical operating software English version
Report printing Report formats support the user-defined mode, QC and state information etc.
System connection TCP/IP network connection, standard RJ-45
7.Others
Volume 744mm×703mm×530mm
Weight 100kg
Power supply Voltage AC 100V-240V, 50/60Hz, power 600VA
