Auto Hematology Analyzer RT-7600V for Veterinary
- Auto Hematology Analyzer RT-7600V for Veterinary applications
- Analyzes 20 parameters and provides 3 histograms
- 3-part differentiation of white blood cells (WBC)
- Capable of processing 60 samples per hour
- Features a 10.4” TFT colorful touch screen display
- Stores up to 50,000 sample results with histograms
- Multi-language support available upon request
- Suitable for various animals: cats, dogs, rabbits, pigs, goats, horses, monkeys, plus 4 user-defined settings
- Error message alarms for enhanced operational reliability
- Interfaces: RS-232, USB, LAN, with optional external printer support
- SKU
- RT-7600V
- Brand
- Neuvar
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

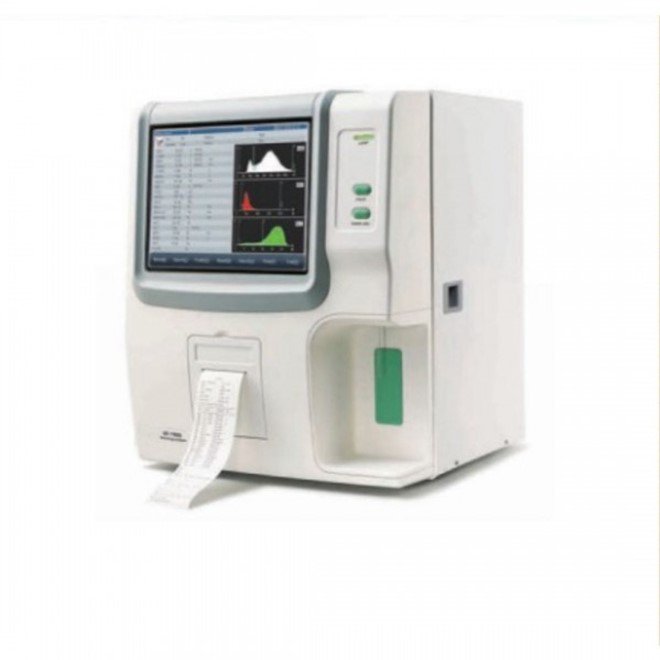

Auto Hematology Analyzer RT-7600V
Advanced automated hematology analysis for veterinary diagnostics. Delivers 20 parameters with 3-part WBC differentiation and real-time histograms. High-throughput capacity of 60 samples per hour with intuitive 10.4" touchscreen interface and comprehensive data storage for up to 50,000 results.
Clinical overview
The RT-7600V is a fully automated hematology analyzer engineered specifically for veterinary laboratory environments. It combines electrical resistance counting technology with advanced data processing to deliver rapid, accurate blood cell analysis across multiple animal species. The system processes up to 60 samples per hour, making it ideal for high-volume diagnostic facilities, emergency clinics, and research institutions.
With support for cats, dogs, rabbits, pigs, goats, horses, monkeys, and four user-defined animal profiles, the RT-7600V adapts to diverse veterinary practice requirements. The 10.4-inch TFT color touchscreen provides intuitive navigation, while comprehensive data storage and multi-language support enhance operational efficiency and international deployment capability.
Key features & surgeon benefits
Comprehensive Parameter Analysis
- 20 parameters including WBC, RBC, PLT, and differential counts
- 3-part WBC differentiation (LYM, MID, GRA)

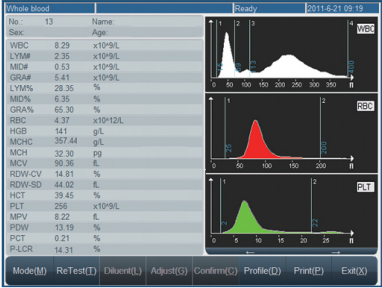

- Real-time histograms for WBC, RBC, and PLT populations
High-Throughput Processing
- 60 samples per hour throughput capacity
- Dual counting modes: whole blood and prediluted samples
- Minimal sample volume requirements (9.8 µL whole blood, 20 µL prediluted)
Robust Storage & Connectivity
- Storage for up to 50,000 sample results with histograms
- RS-232, USB, and LAN interfaces for seamless integration
- Optional external printer support for flexible reporting
Species & Language Flexibility
- Pre-configured profiles for 6 common species plus 4 user-defined settings
- Multi-language support available on request
- Factory-supplied blood control and calibrator for quality assurance
Technical specifications
| Indications | Veterinary hematology analysis for cats, dogs, rabbits, pigs, goats, horses, monkeys, and user-defined species |
|---|---|
| Parameters | WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%, RBC, HGB, MCHC, MCH, MCV, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR plus histograms for WBC, RBC, PLT |
| Counting Principle | Electrical resistance for WBC, RBC, and PLT |
| Sample Volume | Whole blood: 9.8 µL; Prediluted: 20 µL |
| Throughput | 60 samples per hour |
| Display | 10.4" TFT color LCD with touchscreen |
| Interfaces | RS-232, USB, LAN, keyboard, mouse; optional external printer |
| Operating Environment | Temperature: 15–35°C; Humidity: ≤80% |
| Power Requirement | AC 110–110V/220V, 50/60 Hz |
| Dimensions | 430 × 363 × 307 mm (L × W × H) |
| Weight | 18 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | RT-7600V Hematology Analyzer with 10.4" touchscreen display | 1 |
| Blood Control | Factory-supplied quality control material | 1 |
| Calibrator | Factory-supplied calibration standard | 1 |
| Power Adapter | External AC adapter (110–110V/220V, 50/60 Hz) | 1 |
| Interface Cables | RS-232, USB, LAN connectivity cables | 1 set |
| Thermal Printer | 55 mm width paper thermal printer (optional external printer support) | Optional |
| Documentation | User manual, technical specifications, warranty certificate | 1 set |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the RT-7600V. We provide comprehensive support and can arrange demonstrations at your facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
