- Auto Hematology Analyzer BC-20 by Mindray
- Performs CBC with 3-DIFF, analyzing 20 parameters
- High throughput of 40 samples per hour
- User-friendly 10.4-inch TFT touch screen
- Open vial sampling capability for convenience
- Large storage capacity of up to 100,000 samples
- Includes original QC, calibrators, and reagents
- Supports whole blood and predilute modes
- Multiple interfaces including USB ports and network access
- Compact design with a wide operating environment range
Reliable automated CBC with 3-part differential and 20 parameters for clinical laboratories, hospitals, and diagnostic centers. High-throughput 40 samples/hour capacity with intuitive 10.4-inch touchscreen interface and comprehensive quality control features.

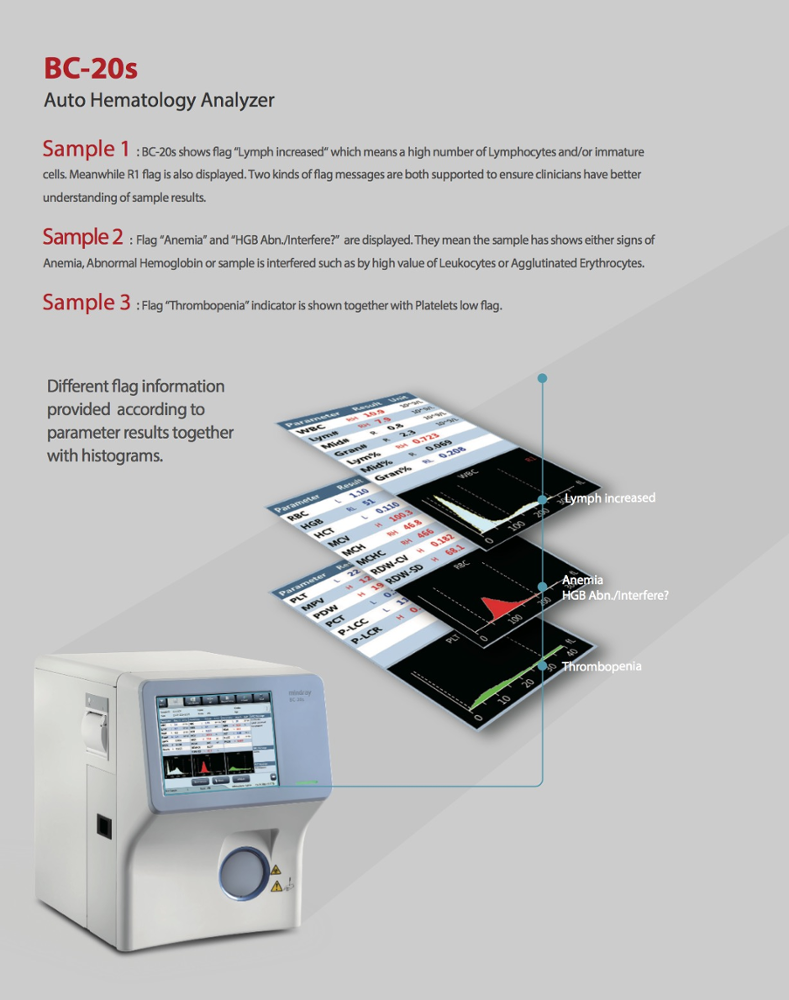

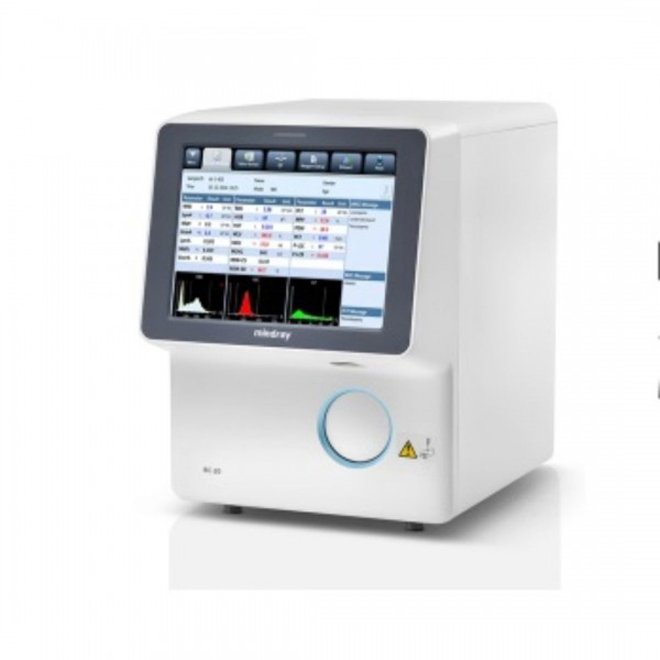

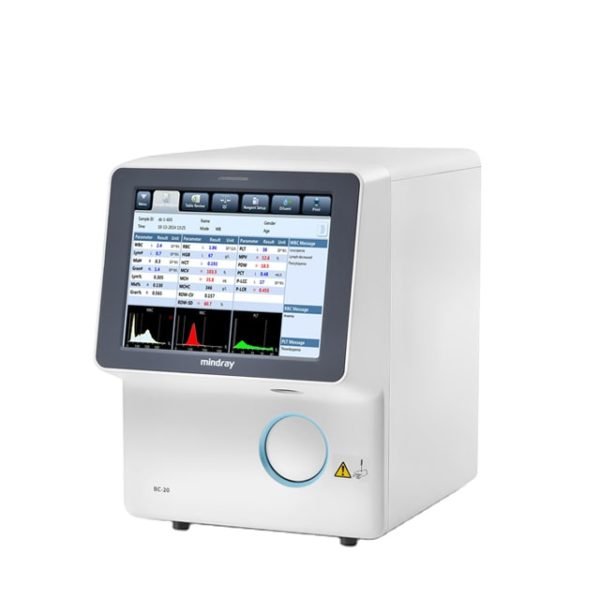

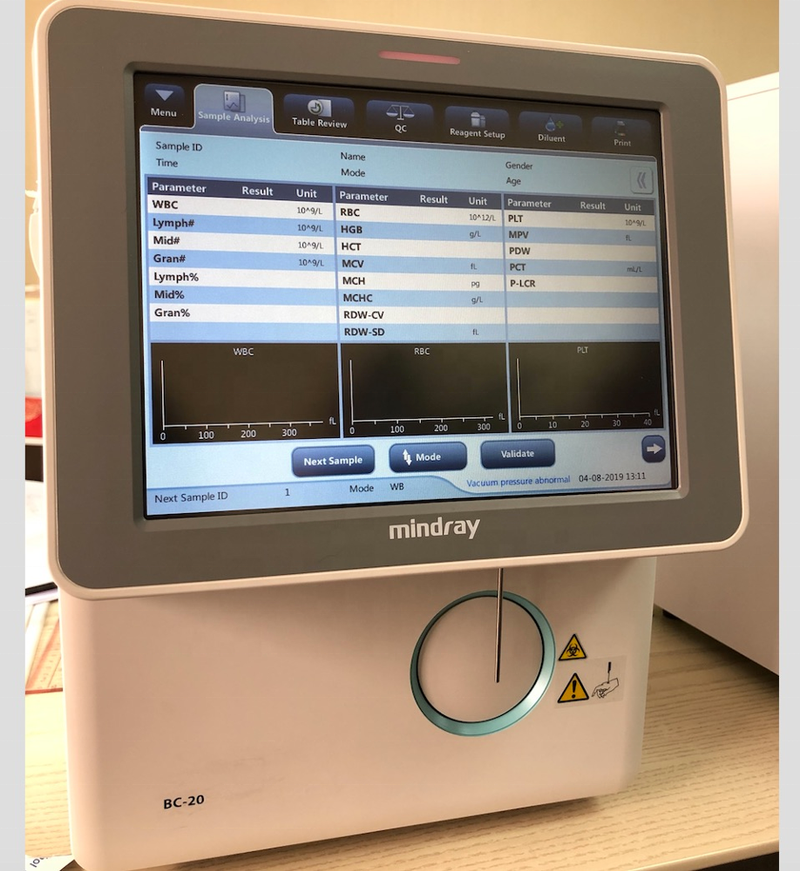

The Mindray BC-20 is a fully automated hematology analyzer designed for moderate-volume clinical laboratories, hospitals, and diagnostic centers. It performs complete blood count (CBC) testing with 3-part white blood cell differential, delivering 20 reportable parameters plus three histograms (WBC, RBC, PLT) for comprehensive hematological assessment. With a throughput of 40 samples per hour, the BC-20 efficiently handles routine and stat testing while maintaining turnaround time standards expected in modern laboratory environments.

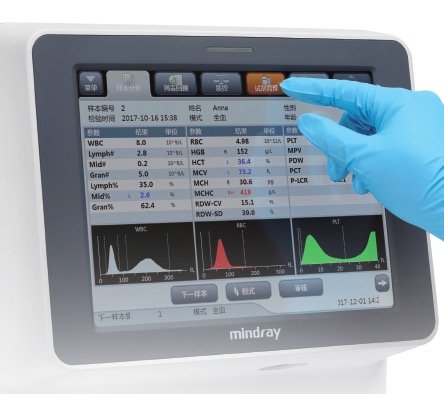

The analyzer combines ease of use with clinical reliability through its intuitive 10.4-inch TFT touchscreen interface, minimal sample volume requirements (≤9μL whole blood), and open vial sampling capability. Network connectivity with TCP/IP support enables seamless laboratory information system (LIS) integration, reducing transcription errors and improving workflow efficiency. The system includes original quality control materials, calibrators, and reagents, allowing immediate validation and operation upon installation.
| Indications | Complete blood count (CBC) with 3-part differential; routine hematology testing, disease monitoring, diagnostic evaluation |
|---|---|
| Parameters | 20 parameters: WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT; plus 3 histograms (WBC, RBC, PLT) |
| Sample volume | Whole blood mode: ≤9μL; Predilute mode: ≤20μL |
| Throughput | 40 samples per hour (both whole blood and predilute modes) |

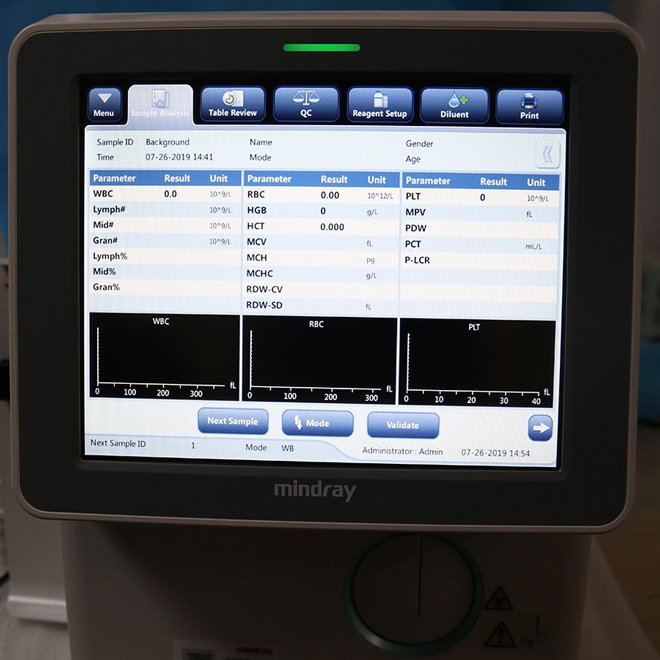

| Display | 10.4-inch TFT color touchscreen, 800×600 resolution, 24-bit color |
| Data storage | Up to 100,000 sample results with complete patient demographics |
| Sampling method | Open vial sampling; compatible with standard EDTA vacuum tubes |
| Network interface | Built-in network card with TCP/IP support; LIS integration capable |
| USB ports | 4 USB ports for external peripherals, printers, barcode scanners, data backup |
| Power supply | 100-240V AC (±10%), 300 VA, 50/60Hz (±1Hz); universal voltage compatibility |
| Operating temperature | 10°C to 40°C |
| Humidity range | 10% to 90% non-condensing |
| Atmospheric pressure | 70.0 to 106.0 kPa |
| Included accessories | Original QC materials, calibrators, and reagents |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Analyzer unit | Mindray BC-20 hematology analyzer with 10.4-inch touchscreen | 1 |
| QC materials | Original quality control materials for system validation | 1 set |
| Calibrators | Calibration reagents for initial setup and recalibration | 1 set |
| Reagents | Complete reagent set for CBC analysis | 1 set |
| Power cable | Universal AC power cable (100-240V) | 1 |
| Network cable | Ethernet cable for LIS connectivity | 1 |
| Operation manual | Comprehensive user and technical documentation | 1 |
| Quick reference guide | Operator quick start guide | 1 |
Contact our sales team to discuss the Mindray BC-20 hematology analyzer, request a demonstration, or obtain a customized quote for your laboratory. We provide comprehensive support including installation, training, and ongoing technical assistance.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
White cell counts and haemoglobin values match our reference analyser tightly, and platelet counts have been reliable even at the low end. Turnaround per sample is quick.
Dr. Aisha Khatun, MD, PhDVerified buyerApr 18, 2026
The instrument has held calibration well between control runs and carry-over is minimal. A dependable analyser for routine counts.
Dr. Charlotte Ndlovu, MDVerified buyerDec 12, 2024
Aspiration is smooth and the flagging for abnormal samples is sensible. Reagent consumption is reasonable for our daily volume.
Bjorn Nilsson, MLSApr 19, 2025
