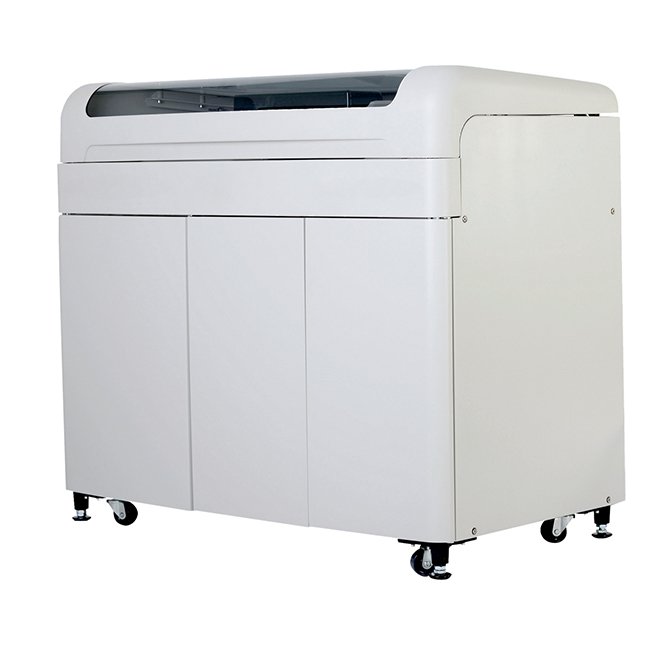

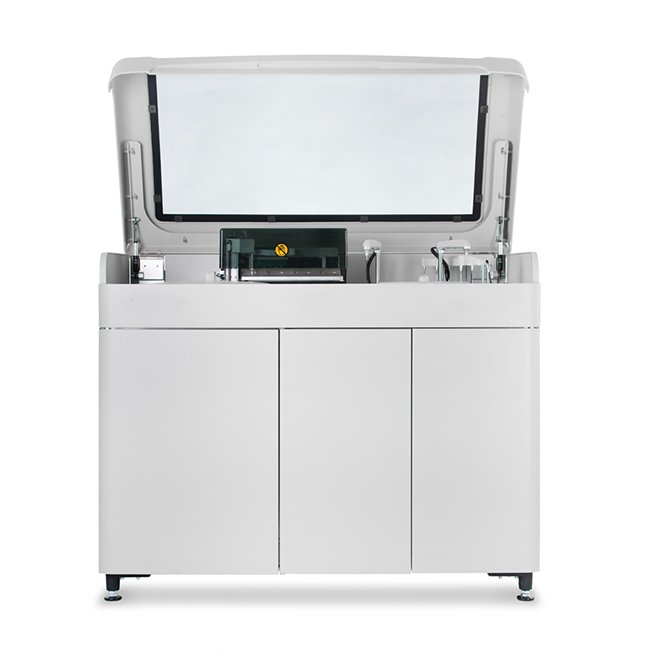

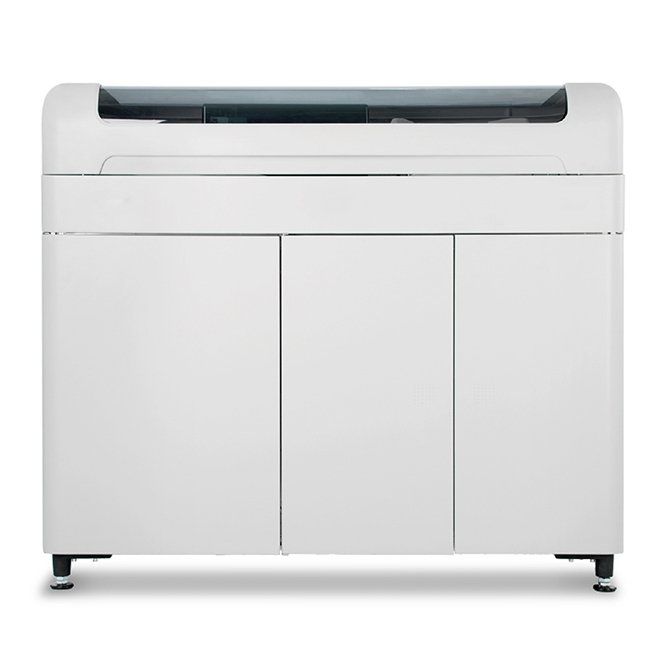

Automatic Chemiluminescence Analyzer NEUCM09
- Advanced Automatic Chemiluminescence Analyzer (Model NEUCM09)
- Continuous Random Access Measurement with Magnetic Microparticles
- Supports Serum, Plasma, Urine, and other samples
- Maximum assay throughput of 120 tests per hour
- 18 simultaneous test items capability
- On-board sample and reagent management system
- 37°C reaction temperature control for optimal results
- Coded error alarm management for reliable operation
- Compact dimensions: 1250mm x 700mm x 1100mm
- Power options: 110V-120V and 220V with a consumption of 1.0KVA
- SKU
- NEUCM09
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Automatic Chemiluminescence Analyzer NEUCM09
Advanced continuous random access measurement system with magnetic microparticle-based enhanced immunochemiluminescence. Delivers up to 120 tests per hour with 18 simultaneous test items, on-board sample and reagent management, and precise 37°C reaction temperature control for optimal clinical laboratory performance.
Clinical overview
The NEUCM09 is a fully automated chemiluminescence analyzer engineered for high-volume clinical laboratories and diagnostic centers. Utilizing magnetic microparticle-based enhanced immunochemiluminescence technology, the system delivers rapid, accurate quantitative results across a comprehensive assay menu. The continuous random access architecture enables flexible workflow management, allowing simultaneous processing of multiple samples and reagent types without predefined batching requirements.
With on-board sample and reagent management, integrated barcode recognition for sample and reagent tracking, and liquid surface and clot detection, the NEUCM09 minimizes manual intervention and reduces the risk of pre-analytical errors. The system's 37°C reaction temperature control ensures optimal assay kinetics, while coded error alarm management provides real-time operational feedback for reliable, unattended operation in busy laboratory environments.
Key features & surgeon benefits
High-Volume Capacity
- Maximum 120 tests per hour
- 18 simultaneous test items
- Continuous random access measurement
Automated Sample Management
- On-board sample and reagent management
- Liquid surface detection and clot detection
- Barcode reading for sample and reagent recognition
Precision & Control
- 37°C reaction temperature control
- Coded error alarm management
- Two-point or multi-point calibration options
Sample Versatility
- Supports serum, plasma, urine, and other samples
- Multiple sample container sizes (4ml, 5ml, 10ml)
- Sample volume range 10–100 µl
Technical specifications
| Measurement Principle | Magnetic microparticles-based enhanced immunochemiluminescence |
|---|---|
| Sample Types | Serum, plasma, urine, and other clinical samples |
| Sample Containers | 4ml (13×75mm), 5ml (13×100mm), 10ml (16×100mm) tubes and 1ml cups |
| Sample Volume | 10–100 µl |
| On-Board Capacity | Tips: 4×50 (continuous loading); Reaction cuvettes: 4×50 (continuous loading); Samples: 50; Diluents: 6 |
| Simultaneous Test Items | 18 |
| Assay Throughput | Maximum 120 tests per hour |
| Reaction Temperature | 37°C |
| Calibration | 2-point or multi-point; 2D barcode support |
| Data Storage | On-line |
| Connectivity | RS-232C |
| Operating System | Microsoft Windows |
| Power Supply | 110V–120V, 60Hz or 220V–240V, 50Hz |
| Power Consumption | 1.0 KVA |
| Dimensions | 1250mm (L) × 700mm (W) × 1100mm (H) |
| Weight | Approximately 225 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Analyzer Unit | NEUCM09 Automatic Chemiluminescence Analyzer with integrated sample and reagent management | 1 |
| Sample Carousel | On-board sample holder (capacity 50 samples) | 1 |
| Reagent Carousel | On-board reagent carousel with temperature control | 1 |
| Reaction Cuvette Loader | Continuous loading system (4×50 capacity) | 1 |
| Tip Loader | Continuous loading system (4×50 capacity) | 1 |
| Barcode Reader | 2D barcode scanner for sample and reagent recognition | 1 |
| Control Software | Windows-based analyzer control and data management system | 1 |
| Power Cable | Dual voltage (110V–120V / 220V–240V) with regional connectors | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system specifications, assay menu options, and installation timelines. We provide comprehensive support from initial consultation through post-installation training and ongoing technical assistance.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
