Automatic Chemiluminescence Analyzer NEUCM11
- Advanced Automatic Chemiluminescence Analyzer NEUCM11
- Utilizes Glow Chemiluminescence based on Alkaline Phosphatase (ALP) technology
- Features magnetic microbead separation for enhanced accuracy
- High throughput of 60 tests per hour
- Quick results with a first result turnaround time of just 215 minutes
- Adjustable sample positions (5-75) for continuous loading flexibility
- 15 reagent positions for efficient reagent management
- Integrated internal quality control for reliable testing
- Barcode scanning for easy reagent information access
- Ideal for specialized tests including 25-OH-Vit-D and infectious diseases
- Cost-effective with low consumption and easy maintenance requirements
- SKU
- NEUCM11
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

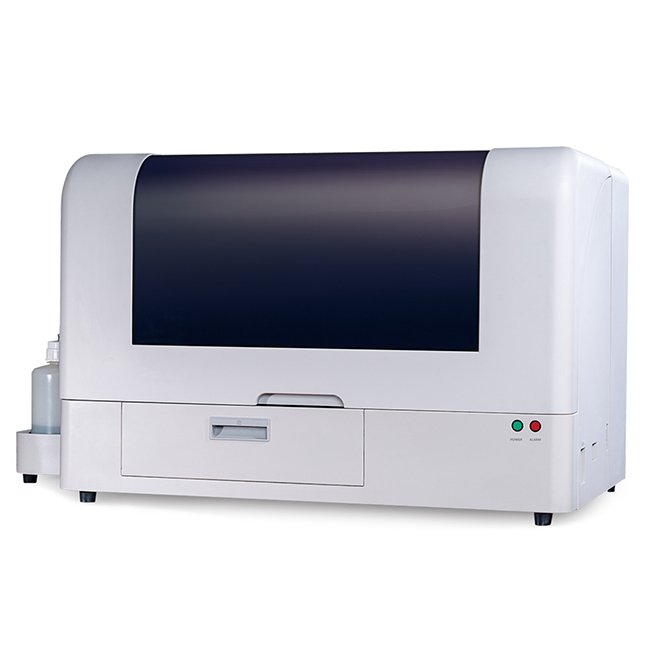

Automatic Chemiluminescence Analyzer NEUCM11
Advanced glow chemiluminescence analyzer utilizing alkaline phosphatase technology with magnetic microbead separation. Delivers 60 tests per hour with first result turnaround in just 215 minutes, featuring adjustable sample and reagent positions for continuous workflow flexibility.
Clinical overview
The NEUCM11 is a compact, fully automated chemiluminescence analyzer designed for high-volume clinical laboratories and specialized testing centers. Built on proven glow chemiluminescence technology with alkaline phosphatase (ALP) as the enzyme label, it combines magnetic microbead separation with an innovative substrate system to deliver reliable, reproducible results across a broad menu of immunoassays.
With a throughput of 60 tests per hour and intelligent continuous-loading capability, the analyzer accommodates variable workloads without sacrificing turnaround time. Integrated internal quality control, barcode reagent tracking, and low reagent consumption make it an economical choice for laboratories seeking to optimize both performance and operational efficiency.
Key features & surgeon benefits
High Throughput & Speed
- 60 tests per hour capacity
- First result in 215 minutes
- Continuous sample and reagent loading (5–75 positions)
Advanced Separation & Detection
- Magnetic microbead separation for enhanced accuracy
- FITC/anti-FITC connected bridge chemistry
- Glow chemiluminescence with ALP enzyme label
Automation & Ease of Use
- Fully automatic operation with minimal hands-on time
- Barcode scanning for reagent information and lot tracking
- Integrated 2-point internal quality control
Cost-Effective Operation
- Low reagent consumption per test
- Easy maintenance with minimal downtime
- Supplied with 50/100 test kits for immediate deployment
Technical specifications
| Principle | Glow Chemiluminescence based on Alkaline Phosphatase (ALP) |
|---|---|
| Separation Method | Magnetic Microbeads with FITC/anti-FITC bridge |
| Throughput | 60 tests per hour |
| Time to First Result | 215 minutes |
| Sample Positions | 5–75 (adjustable, continuous loading) |
| Sample Tube Size | 75 mm / 100 mm |
| Reagent Positions | 1–15 (adjustable, continuous loading) |
| Quality Control | 2-point internal QC included |
| Reagent Tracking | Barcode scanning for lot and expiry information |
| Packaging | 50/100 test kits provided |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | NEUCM11 Automatic Chemiluminescence Analyzer with integrated control system | 1 |
| Sample Carousel | Adjustable sample holder (5–75 positions) | 1 |
| Reagent Module | Temperature-controlled reagent storage (1–15 positions) | 1 |
| Barcode Scanner | Integrated reagent identification system | 1 |
| Internal QC System | 2-point quality control with automated monitoring | 1 |
| Test Kits | Initial supply of 50/100 chemiluminescence test kits | 1 set |
| Power Supply & Cables | Mains adapter and connection cables | 1 |
| User Manual & Documentation | Operating instructions and technical specifications | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customization options for the NEUCM11. We offer flexible configurations and comprehensive support for laboratory integration.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
