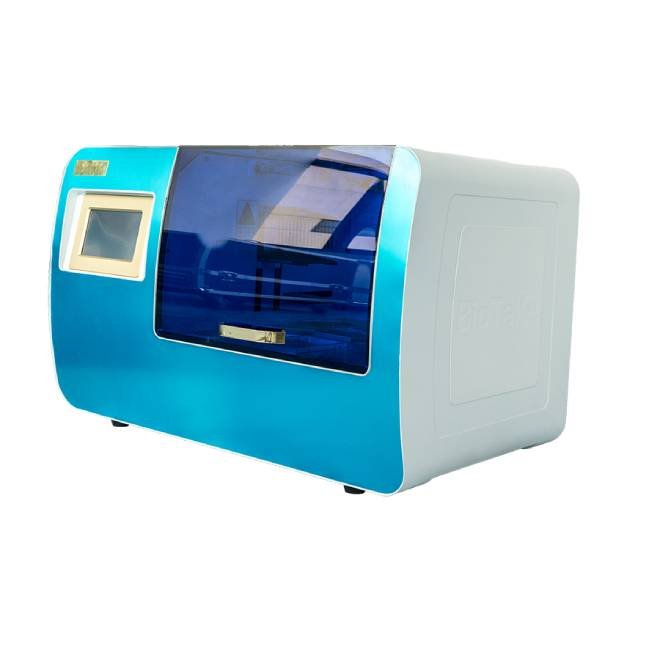

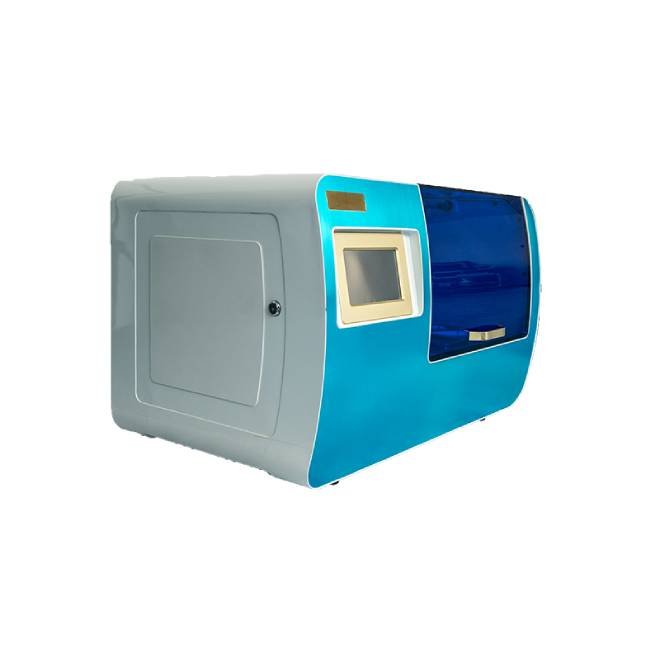

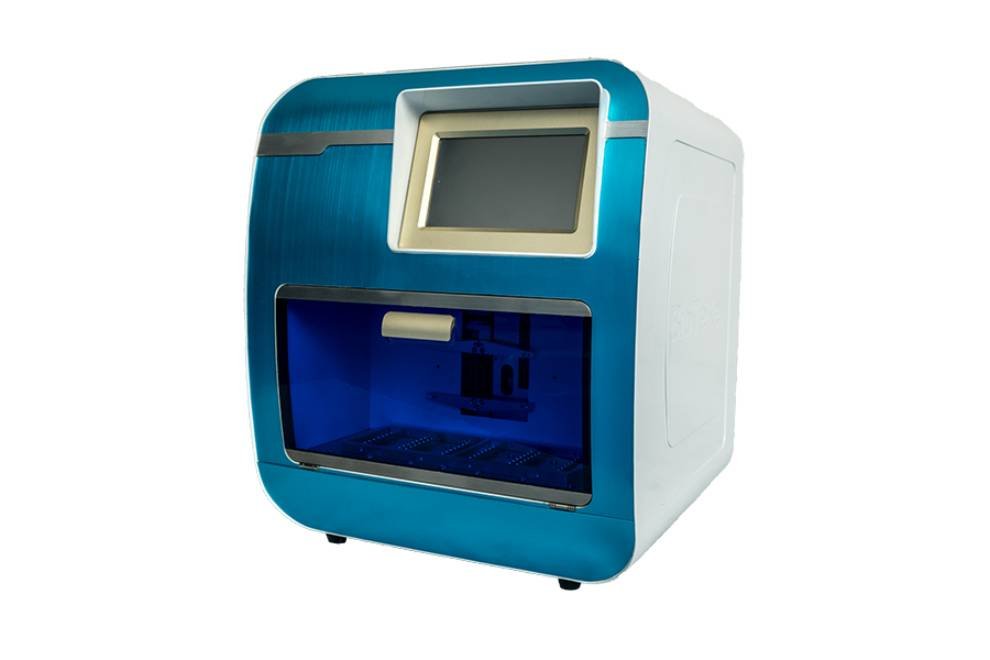

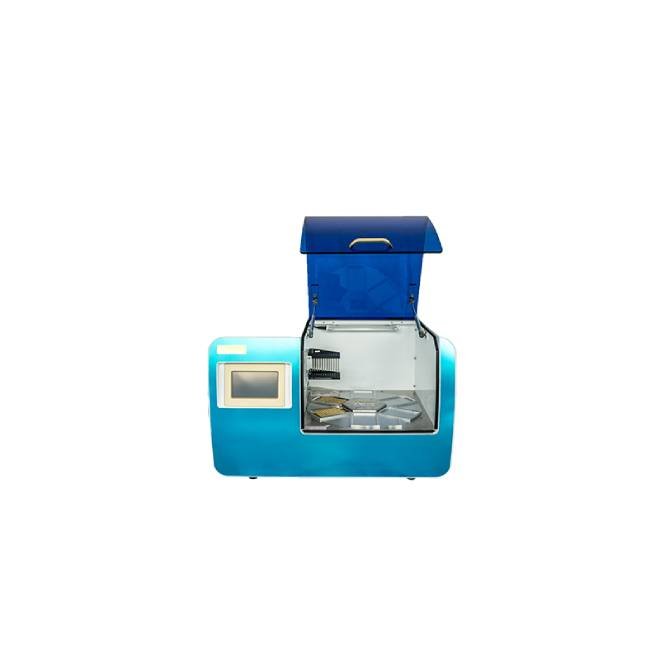

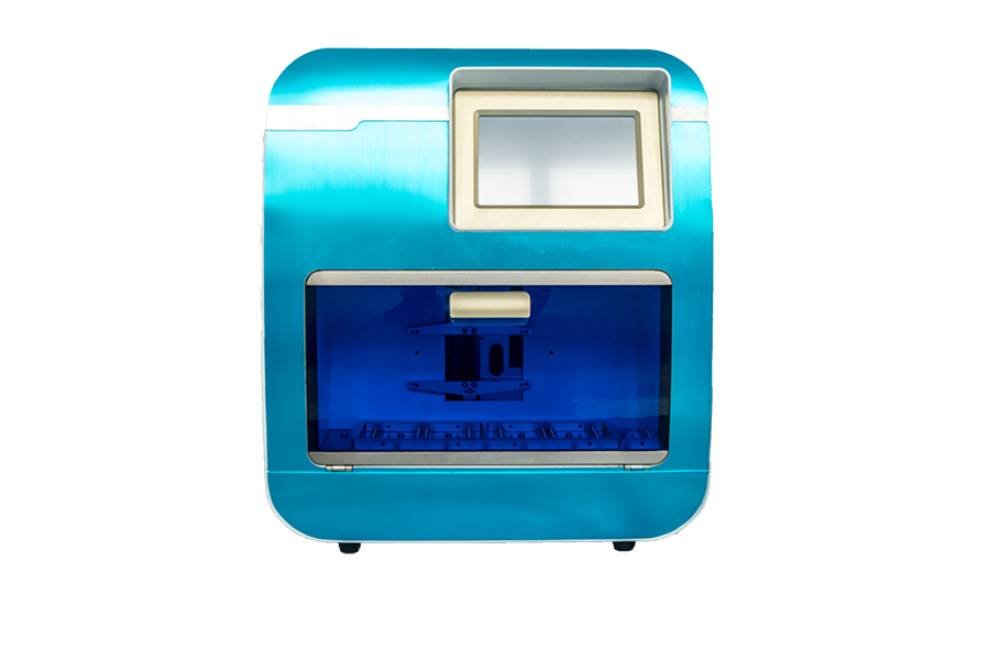

Automatic Nucleic Acid Extraction System Machine NEUNAEO2
- High-throughput automatic nucleic acid extraction: processes 96 samples in 20-40 minutes.
- Utilizes advanced magnetic bead transfer technology for efficient extraction.
- Multi-modular configuration with switchable 96-well and 24-well modules.
- Precise temperature control with dual heating and cooling capabilities.
- Intelligent operating system with Windows PAD and large memory for 700 programs.
- Magnetic stability ensures a recovery rate above 99% for accurate results.
- Designed to prevent overflow and cross-contamination during operations.
- Suitable for handling samples with varying quantitative needs.
- Ideal for laboratories focusing on nucleic acid sample preparation.
- User-friendly touchscreen interface for seamless operation.
- SKU
- NEUNAEO2
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Automatic Nucleic Acid Extraction System NEUNAEO2
High-throughput automated nucleic acid extraction with advanced magnetic bead transfer technology. Process 96 samples in 20–40 minutes with recovery rates exceeding 99%. Multi-modular configuration, intelligent operating system, and precision temperature control for standardized, contamination-free sample preparation.
Clinical overview
The NEUNAEO2 is a fully automated nucleic acid extraction system engineered for high-throughput molecular diagnostics and research laboratories. Utilizing advanced magnetic bead transfer technology with 96 permanent magnets, the system delivers consistent, contamination-free nucleic acid purification from diverse biological samples. With processing capacity of up to 1,000 samples per day and recovery rates exceeding 99%, the NEUNAEO2 meets the stringent requirements of modern genomic, virological, and pathological workflows.
The dual-module architecture—switchable between 96-well (2.2 mL) and 24-well (11 mL) configurations—accommodates variable sample volumes and batch sizes without requiring multiple instruments. Precision temperature control (heating to 120°C, cooling to 4°C) ensures uniform lysis and elution across all wells, while the intelligent Windows PAD operating system with 700-program memory capacity enables full workflow customization and integration with laboratory information systems.
Key features & surgeon benefits
High-Speed Processing
- 96 samples completed in 20–40 minutes
- Up to 1,000 samples per day capacity
- Standardized extraction for quantitative workflows
Flexible Module Design
- Switchable 96-well and 24-well modules
- Accommodates varying sample volumes (2.2 mL to 11 mL)
- No instrument changeover required
Superior Recovery & Stability
- >99% magnetic bead recovery rate
- Dual heating/cooling for uniform temperature distribution
- Zero overflow and cross-contamination risk
Intelligent Operating System
- Windows PAD dual-system interface
- 700-program memory capacity
- External port for LIS integration and sample tracking
Technical specifications
| Indications | Nucleic acid extraction and purification from biological samples; genomic, virological, and pathological diagnostics |
|---|---|
| Processing capacity | 96 samples in 20–40 minutes; up to 1,000 samples per day |
| Module configurations | 96-well module (2.2 mL per well) and 24-well module (11 mL per well) |
| Magnetic bead technology | 96 permanent magnets with >99% recovery rate |
| Temperature control | Heating to 120°C; cooling to 4°C; dual heating and cooling modules |
| Operating system | Windows PAD dual-system; 700-program memory capacity |
| Interface | Touchscreen; external port for LIS and sample library integration |
| Material | Stainless steel construction; magnetic bead transfer technology |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main extraction unit | NEUNAEO2 automated nucleic acid extraction system with dual-module capability | 1 |
| 96-well module | Interchangeable module for high-throughput processing (2.2 mL per well) | 1 |
| 24-well module | Interchangeable module for larger sample volumes (11 mL per well) | 1 |
| Magnetic bead transfer head | 96 permanent magnets with precision positioning | 1 |
| Heating module | Rapid heating to 120°C for lysis | 1 |
| Cooling module | Rapid cooling to 4°C for safe storage | 1 |
| Windows PAD operating system | Touchscreen interface with 700-program memory | 1 |
| Power supply | Standard laboratory electrical connection | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your nucleic acid extraction requirements, request a detailed quotation, or schedule a live demonstration of the NEUNAEO2 system.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
