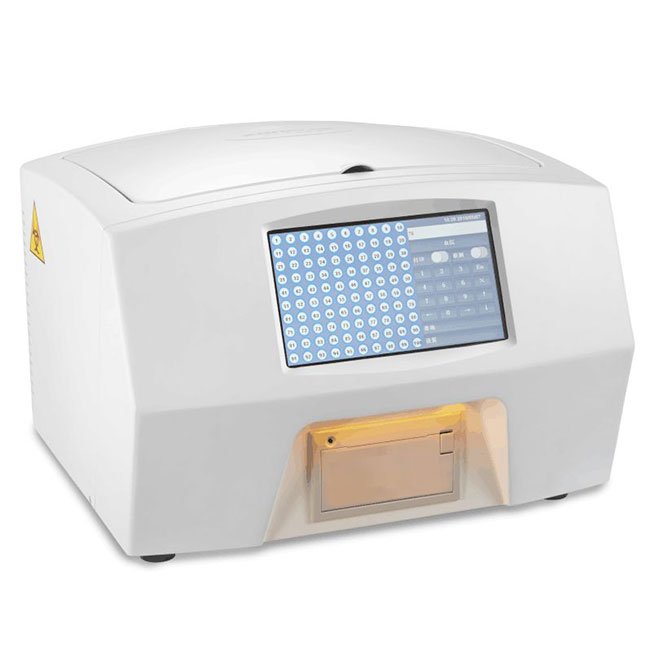

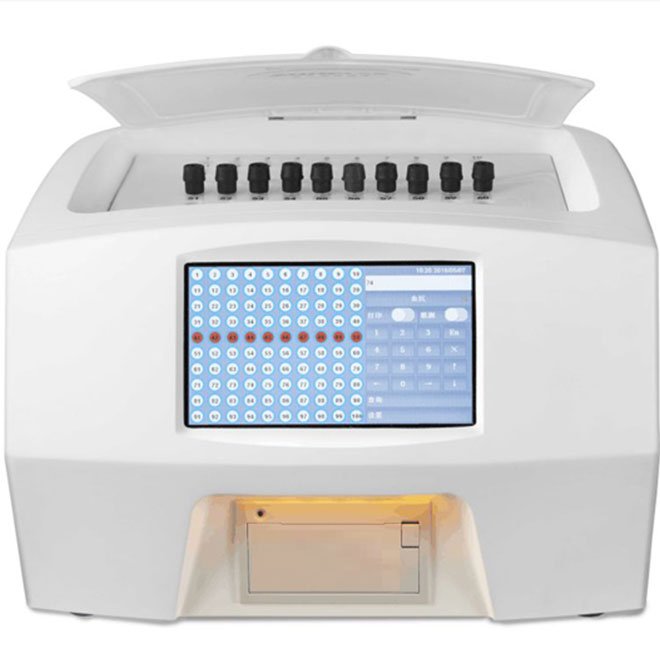

Blood Dynamic Full Automatic ESR/HCT Analyzer Machine NEUXC03
- Full automatic ESR/HCT analyzer for efficient blood testing.
- Utilizes advanced infrared light color difference interpretation technology.
- Results available in as little as 30 minutes.
- 7-inch touch screen for easy operation and real-time display.
- Supports multiple sample positions (100/60/30).
- High ESR test speed: 200/120/60 tests per hour.
- Hematocrit test speed of up to 15,000 tests per hour.
- Requires minimal blood volume: less than 1.6 mL.
- Features liquid level tracking and buzzer function after tests.
- Compatible with vacuum blood collection tubes and ordinary test tubes.
- SKU
- NEUXC03
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Blood Dynamic Full Automatic ESR/HCT Analyzer Machine NEUXC03
Advanced infrared light color difference interpretation technology delivers accurate erythrocyte sedimentation rate and hematocrit results in as little as 30 minutes. Fully automated workflow with 7-inch touch screen interface supports up to 100 sample positions and processes up to 200 ESR tests per hour.
Clinical overview
The NEUXC03 Full Automatic ESR/HCT Analyzer represents a significant advancement over traditional manual Weiss method testing. ESR (erythrocyte sedimentation rate) measurement is a critical diagnostic parameter for numerous clinical conditions, yet conventional approaches suffer from operator dependency, low throughput, and cross-contamination risk. This analyzer employs advanced infrared light color difference interpretation technology to automatically monitor the entire sedimentation process within 30 minutes, delivering results that correlate to the Weiss standard curve while eliminating manual intervention and variability.
The integrated hematocrit measurement capability provides complementary blood analysis data, enabling comprehensive red cell assessment in a single workflow. Minimal blood volume requirement (less than 1.6 mL) reduces patient burden and sample waste, while compatibility with both vacuum collection tubes and standard test tubes ensures seamless integration into existing laboratory protocols.
Key features & surgeon benefits
High-Speed Automated Testing
- ESR: up to 200 tests per hour (100-position configuration)
- Hematocrit: up to 15,000 tests per hour
- Results available in 30 minutes for ESR; real-time HCT output
Intuitive Touch Screen Operation
- 7-inch color touch display with real-time multi-channel monitoring
- Liquid level tracking and automatic scan function
- Audible completion alert for operator notification
Reduced Cost Per Test
- Minimal blood volume requirement (less than 1.6 mL)
- Eliminates manual labor and operator training overhead
- Scalable sample capacity: 30, 60, or 100 positions
Dual Test Modes & Tube Compatibility
- Independent 30-minute or 60-minute ESR test modes
- Combined ESR + hematocrit testing in single run
- Works with vacuum collection tubes and ordinary test tubes
Technical specifications
| Indications | Erythrocyte sedimentation rate (ESR) and hematocrit (HCT) measurement for clinical diagnosis and disease monitoring |
|---|---|
| Sample positions | 100, 60, or 30 positions (configurable) |
| ESR test speed | 200, 120, or 60 tests per hour (depending on configuration) |
| Hematocrit test speed | 15,000, 9,000, or 4,500 tests per hour (depending on configuration) |
| Blood volume required | Less than 1.6 mL per sample |
| ESR result time | 30 minutes (standard Weiss method correlation) |
| Display | 7-inch color touch screen with real-time multi-channel display |
| Tube compatibility | Vacuum blood collection tubes and standard test tubes |
| Features | Liquid level tracking, automatic scan function, audible completion buzzer, independent or combined test modes |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main analyzer unit | Full automatic ESR/HCT analyzer with 7-inch touch screen | 1 |
| Sample carousel | Configurable sample holder (30, 60, or 100 positions) | 1 |
| Power cable | AC power supply with safety certification | 1 |
| User manual | Multilingual operation and maintenance guide | 1 |
| Calibration kit | Standard reference materials for quality control | 1 |
Get in touch for pricing & availability
Contact our laboratory equipment specialists to discuss configuration options, pricing, and delivery timelines for the NEUXC03 analyzer. We provide comprehensive support including installation, training, and ongoing technical assistance.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
