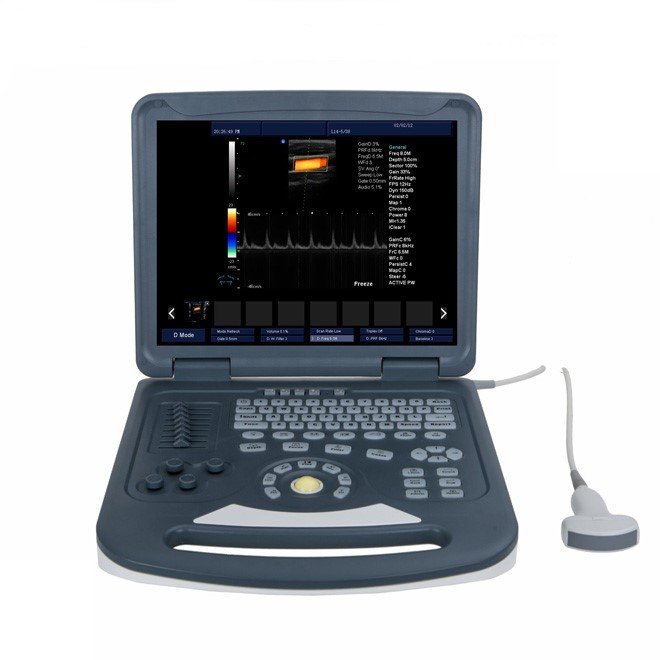

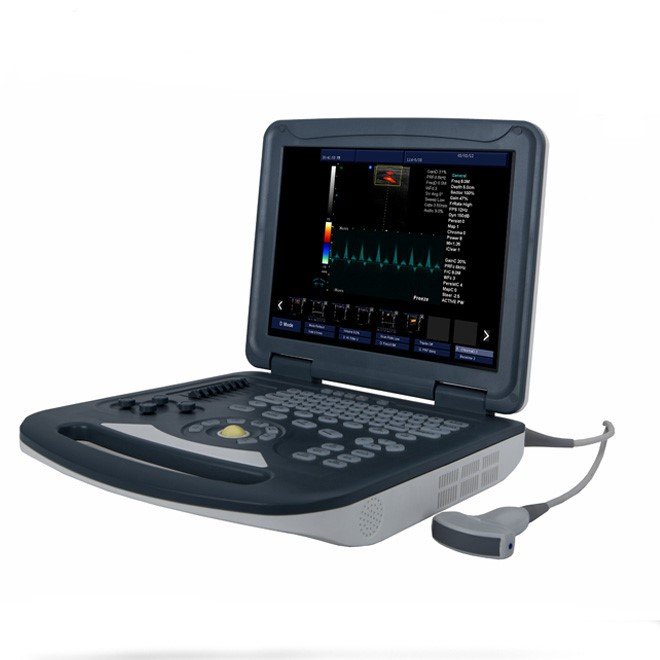

Doppler Diagnostic Ultrasound System NEUCU49

In stock

This 2D Color doppler is mainly suitable for the diagnosis and analysis of human body’s abdomen (liver, gall bladder, kidney, pancreas, and spleen), gynaecology and obstetrics, cardiology, thyroid, smallpart, urology department, superficial, and orthopedic diseases. It can perform the power spectrum diagnosis on great vessel positions such as liver, gall bladder, spleen, kidney, pancreas, and carotid artery.

Display mode
B&W mode: B, 2B, 4B, M. B/M, B/C, B/D, B/C/D, BC+B
Color Doppler mode: CFM, PDI, PW, HPRF
Duplex: Real-time simultaneous 2D, Doppler
Gray scale: 256
Display: 15’’ LCD high resolution monitor
Transducer frequency: 2.5-10Mhz
Digital technology: Dynamic Receiving Focusing (DRF)
                                  Dynamic Frequency Scanning (DFS)

Scanning depth: 300mm

Imaging Processing
Pre-processing:   8-segment TGC
               Gain (B&W, Color, Doppler)
               Dynamic Range
               Image enhancement
               Acoustic Power
Post-processing:  Gray map
               Black/white reverse
               Left/right reverse
               Up/down reverse
Cine-loop:      1000 frame cine loop memory
Storage media:   64G massive image-storage capacity
Zoom:          Pan zoom
USB ports:      2
THI(tissue harmonic imaging): Suppress speckle noise, brighten image and improve the image quality
iTouch: One key for optimization
iClear Imaging: One key for clearer
Measurement & Calculations
B mode:  distance, circumference, area, volume, angle, fetal growth, curve
M mode:  distance, time, velocity, heart rate
Software package: abdomen, gynecology, obstetrics, cardiology, small parts, urology
Transducer connectors: 1 active transducer connector ports
Peripheral ports: video, S-video, VGA, DIOCM, 2 USB ports
Power supply: 100~240VAC±10%, 50Hz/60Hz
3.5Mhz 128 elements Electronic convex array transducer
7.5Mhz 128 elements Electronic linear array transducer
5.0Mhz 128 elements Electronic micro-convex transducer
6.0Mhz 128 elements Electronic trans-vaginal array transducer
