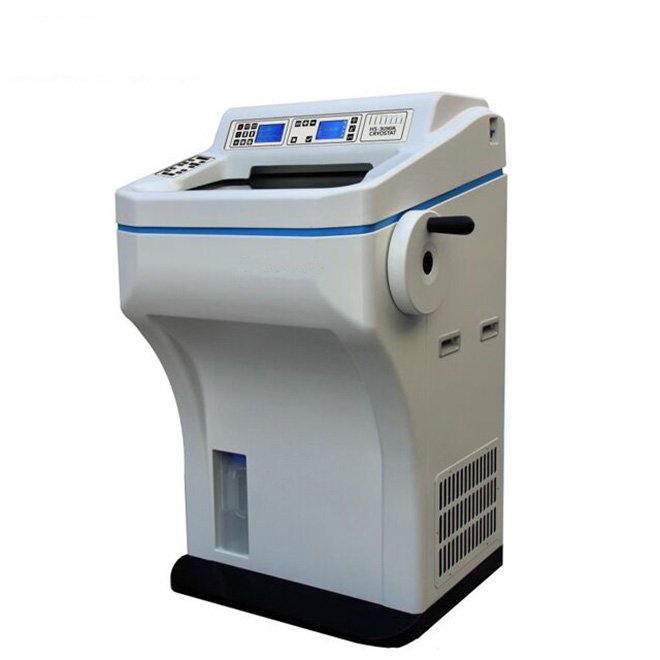

Freezing Semi Automatic Microtome Machine NEUK228
$18,990.00$19,990.00 (-5%)
– Freezing Semi Automatic Microtome Machine NEUK228
– Temperature range in freezing chamber: -40℃ to -10℃
– Minimum freezing shelf temperature: -45℃
– Adjustable chuck holder minimum temperature: -50℃
– Specimen size capacity: 50mm x 80mm
– Section thickness adjustable from 1μm to 100μm
– Trimming thickness adjustable from 10μm to 400μm
– Robust design with a net weight of 125kg
– Dimensions: 660mm x 640mm x 1130mm
– Power requirement: AC220V±10%, 50Hz or AC110V±10%, 60Hz
| Freezing chamber temperature range | -40℃~-10℃ |
| Freezing shelf minimum temperature | -45℃ |
| Chuck holder minimum temperature | -50℃ |
| Minimum temperature of Peltier element on freezing shelf | -60℃ |
| Number of Peltier element cooling spot | 2 |
| Maximum specimen size | 50mm×80mm |
| Chuck hold maximum adjustable angle | 12° |
| Specimen vertical stroke | 70mm |
Specifications
1. Freezing chamber temperature range：-40℃～-10℃
2. Freezing shelf minimum temperature：-45℃
3. Chuck holder minimum temperature：-50℃
4. Minimum temperature of Peltier element on freezing shelf：-60℃
Number of Peltier element cooling spot: 2
5. Maximum specimen size：50mm×80mm
6. Chuck hold maximum adjustable angle: 12°
7. Specimen vertical stroke: 70mm
8. Specimen horizontal stroke：20mm
9. Rough feeding speed: （0.9mm/s; 0.3mm/s）
10. Section thickness range: 1μm～100μm adjustable;
i. 1μm～20μm, in 1μm increments;
ii. 20μm～50μm, in 2μm increments;
iii. 50μm～100μm, in 5μm increments.
11. Trimming thickness range: 10μm～400μm adjustable;
i. 10μm～50μm, in 5μm increments;
ii. 50μm～100μm, in 10μm increments;
iii. 100μm～400μm, in 50μm increments.
12. Retraction range: 0μm～80μm adjustable, in 5μm increment
13. Voltage and frequency: AC220V±10%, 50Hz(Standard),
a) or AC110V±10%, 60Hz
14. Power: 800W
15. Net weight 125kg
16. Dimensions(W×D×H): 660×640×1130mm
