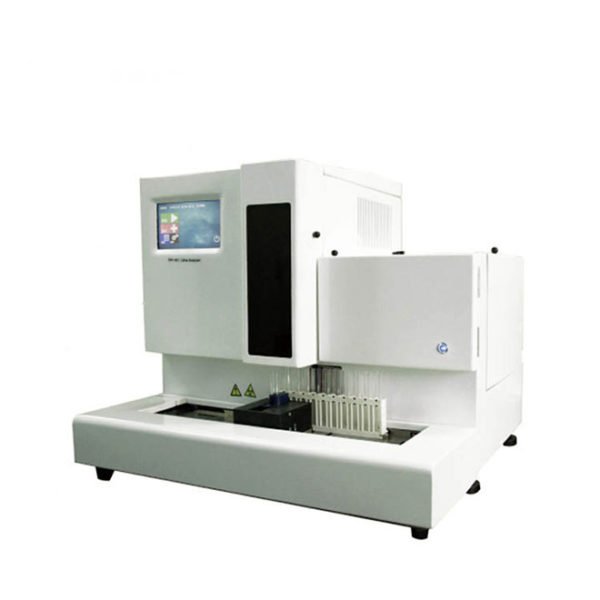

Full Automatic Hospital Urine Analyzer Machine NEUBW04
- Full automatic urine analyzer for hospitals and clinics
- Tests multiple parameters including Urobilinogen, Bilirubin, Ketone, Blood, Protein, Nitrite, Leukocyte, and Glucose
- High test speed of 240 samples per hour (15 seconds per sample)
- Holds up to 50 samples with 5 test tube racks
- Data storage for up to 20,000 records, with emergency and quality control logs
- User-friendly with multilingual support (Chinese, English, etc.)
- Connects easily via RS-232 and parallel printing interfaces
- Compact design with dimensions of 660mm x 625mm x 581mm and weighs 65Kg
- Operates effectively within ambient temperatures of 15°C to 35°C
- Power requirements: AC220V, 50Hz, with a power consumption of 300VA
- SKU
- NEUBW04
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Full Automatic Hospital Urine Analyzer Machine NEUBW04
High-throughput automated urine analysis system designed for hospitals and clinical laboratories. Processes up to 240 samples per hour with comprehensive multi-parameter testing, data management for 20,000 records, and intuitive multilingual interface for seamless workflow integration.
Clinical overview
The NEUBW04 is a fully automated urine analyzer engineered for high-volume laboratory environments. It delivers rapid, accurate results across 12 key urinalysis parameters—including urobilinogen, bilirubin, ketone, blood, protein, nitrite, leukocyte, glucose, specific gravity, pH, ascorbic acid, and microalbumin—using proven reflectance detection methodology. With a processing speed of 240 samples per hour (15 seconds per sample), the system significantly reduces turnaround time and labour costs while maintaining clinical accuracy.
The analyzer accommodates up to 50 samples simultaneously via 5 integrated test tube racks, with robust data management storing up to 20,000 patient records plus 10,000 emergency logs and 1,000 quality control entries. Multilingual support (Chinese, English, and others) ensures accessibility across diverse clinical settings, while RS-232 and parallel printing interfaces enable seamless integration with existing laboratory information systems.
Key features & surgeon benefits
High-Speed Processing
- 240 samples per hour (15 seconds per sample)
- Capacity for 50 samples in 5 test tube racks
- Reduces patient wait times and improves lab efficiency
Intuitive Operation & Integration
- Multilingual interface (Chinese, English, etc.)
- RS-232 and parallel printing connectivity
- Seamless LIS integration for automated reporting
Comprehensive Record Keeping
- 20,000 patient records storage capacity
- 10,000 emergency logs and 1,000 QC records
- Full audit trail and traceability for compliance
Robust & Compact Design
- Compact footprint: 660 × 625 × 581 mm, 65 kg
- Operates reliably in ambient temperatures 15–35°C
- Low power consumption (300 VA, AC110V/220V 50/60Hz)
Technical specifications
| Test Parameters | Urobilinogen (UBG), Bilirubin (BIL), Ketone (KET), Blood (BLD), Protein (PRO), Nitrite (NIT), Leukocyte (LEU), Glucose (GLU), Specific Gravity (SG), pH, Ascorbic Acid (VC), Microalbumin (MAL) |
|---|---|
| Wavelength | 525 nm, 610 nm, 660 nm (monochromatic light) |
| Test Principle | Reflectance detection method (test strip) |
| Test Speed | 240 samples/hour (15 seconds per sample) |
| Sample Capacity | 5 test tube racks (50 samples); sample volume <1.0 mL |
| Data Storage | 20,000 patient records; 10,000 emergency logs; 1,000 QC records |
| Connectivity | RS-232 interface, parallel printing interface |
| Language Support | Chinese, English, and others |
| Power Supply | AC110V/220V, 50/60Hz; 300 VA; Fuse: 250V 2A |
| Operating Environment | Temperature: 15–35°C (optimal 20–25°C); Humidity: ≤75%; Pressure: 76–106 kPa |
| Dimensions | 660 mm (L) × 625 mm (W) × 581 mm (H) |
| Weight | 65 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Analyzer Unit | Full Automatic Urine Analyzer Machine NEUBW04 | 1 |
| Test Tube Racks | Integrated test tube racks (capacity 50 samples) | 5 |
| Power Cable | AC110V/220V, 50/60Hz power supply cable with fuse protection | 1 |
| Interface Cables | RS-232 serial cable and parallel printer cable | 1 set |
| User Manual | Multilingual operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the NEUBW04 urine analyzer. We offer comprehensive support and training to ensure seamless integration into your laboratory workflow.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
