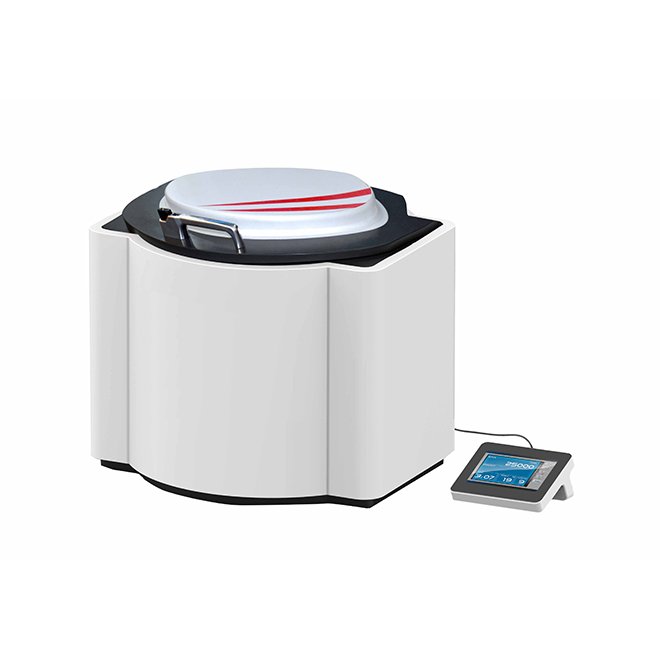

Intelligent Microwave Digestion System Extractor NEUEX06
- Intelligent Microwave Digestion System Extractor NEUEX06
- Specially designed sample digestion vessel with automatic vent and self-resealing structure
- Real-time contactless temperature and pressure monitoring system
- Large storage capacity for 25 customizable digestion programs
- High-strength double locked security system for enhanced safety
- Adjustable microwave power settings from 0-3000W
- 7-inch touch screen display for easy operation
- Maximum working pressure of 6MPA and temperature range of 50-400℃
- Compact dimensions: 640*630*590mm and weight of 70KG
- Accurate temperature and pressure control with minimal deviation
- SKU
- NEUEX06
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Intelligent Microwave Digestion System Extractor NEUEX06
Advanced microwave digestion platform with real-time contactless temperature and pressure monitoring. Delivers precise sample preparation with 25 customizable programs, dual-vessel capacity, and intelligent safety systems for consistent, reproducible results in analytical laboratories.
Clinical overview
The NEUEX06 is an intelligent microwave digestion system engineered for high-throughput sample preparation in analytical and research laboratories. The system combines advanced microwave technology with real-time contactless monitoring to deliver precise, reproducible digestion across multiple samples simultaneously. Its patent-protected automatic vent and self-resealing vessel structure prevents sample loss and vessel damage during over-pressure events, ensuring batch integrity and operational continuity.
With a 7-inch touch screen interface, 25 programmable digestion protocols, and independent temperature and pressure control for each vessel, the NEUEX06 streamlines complex sample preparation workflows. The contactless IR temperature sensor and pressure monitoring system eliminate cross-contamination risk while providing real-time visibility into digestion conditions, making it ideal for environmental analysis, food testing, materials characterization, and pharmaceutical research.
Key features & surgeon benefits
Dual-Lock Security System
- High-strength double-locked security door prevents accidental opening
- Automatic over-pressure and over-temperature adjustment with real-time monitoring
- Abnormal sound monitoring for early fault detection
Contactless Real-Time Sensing
- Advanced IR sensor measures sample temperature in each vessel independently
- Contactless pressure sensor monitors real-time pressure without cross-contamination
- Scanning control of each vessel ensures uniform digestion across the batch

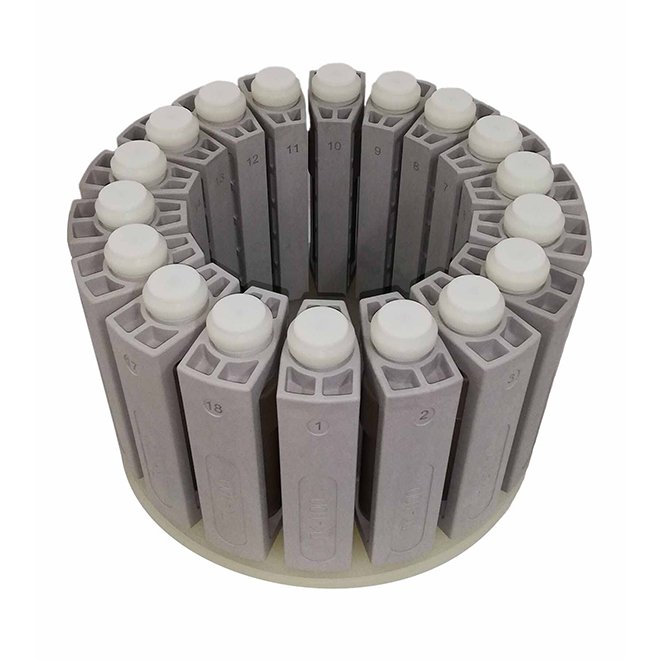

Patent-Protected Digestion Vessels
- Automatic vent and self-resealing structure prevents sample waste and vessel damage
- 100 mL capacity with imported TFM inner and PEEK + glass fiber outer materials
- Rated for 6 MPA maximum working pressure and up to 400°C temperature range
Programmable Flexibility
- Store up to 25 custom digestion programs with independent parameter settings
- Adjustable microwave power from 0–3000W for optimized energy delivery
- 360° continuous rotation mode ensures even microwave distribution
Technical specifications
| Indications | Sample digestion for analytical chemistry, environmental testing, food analysis, materials characterization, pharmaceutical research |
|---|---|
| Vessel Configuration | 12 or 18 vessels |
| Vessel Volume | 100 mL |
| Temperature Control Range | 50–400°C |
| Temperature Control Accuracy | ±0.3°C |
| Maximum Working Pressure | 6 MPA |
| Pressure Control Range | 0–10 MPA |
| Pressure Control Accuracy | 0.01 MPA |
| Temperature Monitoring | Contactless IR sensor |
| Pressure Monitoring | Contactless pressure sensor |
| Microwave Power | 0–3000W adjustable |
| Microwave Frequency | 2450 Hz |
| Microwave Leak | <5 mW/cm² |
| Rotation Mode | 360° continuous rotation |
| Display | 7-inch touch screen |
| Programmable Methods | Up to 25 custom digestion programs |
| Vessel Material | Inner: imported TFM; Outer: imported PEEK + glass fiber |
| Dimensions | 640 × 630 × 590 mm |
| Weight | 70 kg |
| Power Supply | AC 110V/220V, 16A, 50/60 Hz |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Microwave Digestion Unit | Main NEUEX06 system with 12 or 18 vessel capacity, touch screen control, and integrated monitoring sensors | 1 |
| Digestion Vessels | 100 mL TFM/PEEK vessels with automatic vent and self-resealing structure | 12 or 18 |
| Vessel Caps | Sealed caps with pressure relief mechanism | 12 or 18 |
| Rotor Assembly | 360° continuous rotation carousel for uniform microwave distribution | 1 |
| Power Cable | AC 110V/220V, 16A rated connection cable | 1 |
| User Manual | Comprehensive operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our laboratory equipment specialists to discuss your sample digestion requirements, obtain detailed pricing, and arrange a system demonstration. We provide comprehensive support, training, and customization options to optimize your analytical workflow.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
