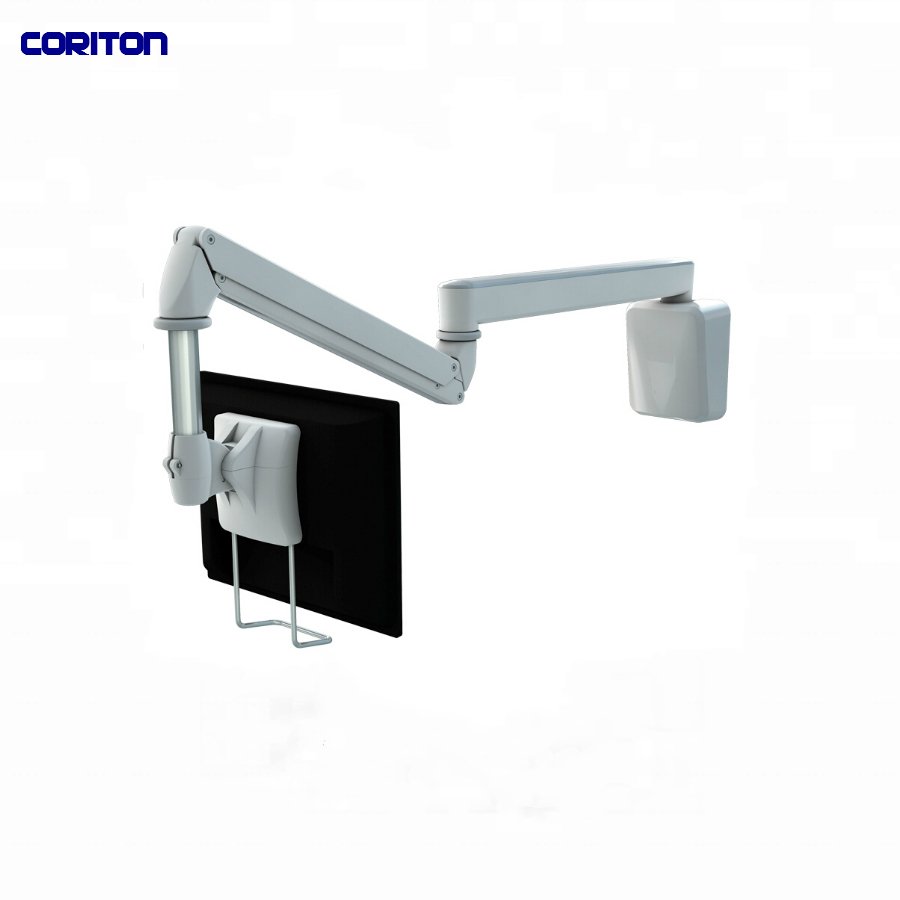

Long arm / Hospital monitor LCD / TV Wall mount
- Compatible with single monitors sized between 15" and 24"
- Supports weight range of 2.5 to 6.5 kg (5.5 to 14.3 lbs)
- Swivel and tilt hinges allow for flexible viewing angles (+/-185° swivel, -60° to +20° tilt)
- 360° pivot support for enhanced display positioning
- Height adjustment range of 671 mm (26.42") for optimal viewing comfort
- Durable construction using steel, aluminum alloy, and plastic materials
- Integrated cable management system for a tidy setup
- Extended arm provided for additional reach (2 arms included)
- Net weight of 11.4 kg (25.08 lbs) ensures stability
- Easy adjustment of user torque and tension for personalized use
- SKU
- WM900-1
- Brand
- CRT
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Long Arm Hospital Monitor LCD/TV Wall Mount
Professional-grade articulating wall mount designed for single LCD/TV displays in clinical and hospital environments. Features dual extended arms with 671 mm height adjustment range, 360° pivot support, and flexible swivel/tilt hinges for optimal viewing angles in any care setting.
Clinical overview
The Long Arm Hospital Monitor Wall Mount is engineered for demanding clinical environments where flexible display positioning and reliable stability are essential. With dual extended arms providing 671 mm of height adjustment and comprehensive articulation (±185° swivel, −60° to +20° tilt, 360° pivot), this mount accommodates diverse viewing angles and ergonomic requirements across patient care, diagnostic imaging, and monitoring stations.
Constructed from durable steel, aluminum alloy, and high-grade plastic, the mount supports single LCD/TV displays from 15″ to 24″ with a weight capacity of 2.5–6.5 kg. User-adjustable torque and tension controls enable personalized positioning and secure hold, while integrated cable management maintains a clean, professional installation. The robust 11.4 kg frame ensures stability even in high-traffic clinical areas.
Key features & surgeon benefits
Comprehensive Positioning
- ±185° swivel hinge for side-to-side adjustment
- −60° to +20° tilt for optimal viewing angle
- 360° pivot support for portrait/landscape orientation
- Dual arm swivel: ±90° (primary) and ±185° (secondary)
Flexible Height Adjustment
- 671 mm (26.42″) vertical reach for ergonomic positioning
- User-adjustable torque and tension controls
- Arm tilt range −55° (down) to +25° (up)
- Dual extended arms (2 included) for extended reach
Robust Construction
- Steel, aluminum alloy, and plastic materials for long-term reliability
- Net weight 11.4 kg (25.08 lbs) ensures stability
- Supports 2.5–6.5 kg display weight range
- M4 screw fastening for secure assembly
Professional Integration
- VESA mounting patterns: 100×100 mm and 75×75 mm
- Integrated cable management system for clean setup
- Compatible with 15″ to 24″ single monitors
- Wall-mounted installation for space efficiency
Technical specifications
| Indications | Hospital workstations, clinical monitoring stations, diagnostic imaging displays, patient bedside monitoring |
|---|---|
| Display Compatibility | Single LCD/TV monitors, 15″ to 24″ |
| Weight Capacity | 2.5–6.5 kg (5.5–14.3 lbs) |
| Material | Steel, Aluminum Alloy, Plastic |
| Mount Weight | 11.4 kg (25.08 lbs) |
| Dimensions (W×H×D) | 200 × 1295 × 1407 mm (7.87″ × 50.98″ × 55.39″) |
| VESA Mounting Patterns | 100×100 mm, 75×75 mm |
| Height Adjustment Range | 671 mm (26.42″) |
| Swivel Range (Hinge) | ±185° |
| Tilt Range (Hinge) | −60° to +20° |
| Pivot Support | 360° |
| Arm Swivel (Primary) | ±90° |
| Arm Swivel (Secondary) | ±185° |
| Arm Tilt Range | −55° (down) to +25° (up) |
| Extended Arms Included | 2 |
| Cable Management | Yes — Integrated system |
| User Torque Adjustment | Available |
| Tension Torque Adjustment | Yes |
| Fastening | M4 screws |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Wall Mount Bracket Assembly | Main mounting frame with integrated hinge module | 1 |
| Extended Arm (Primary) | First articulating arm with ±90° swivel | 1 |
| Extended Arm (Secondary) | Second articulating arm with ±185° swivel | 1 |
| Display Support Plate | VESA-compatible mounting plate (100×100 mm / 75×75 mm) | 1 |
| Cable Management Clips | Integrated cable routing system | As applicable |
| Hardware Kit | M4 fasteners, wall anchors, and assembly screws | 1 set |
Get in touch for pricing & availability
Contact our clinical solutions team to discuss your hospital or workstation mounting requirements, request a detailed quote, or arrange a product demonstration. We offer flexible configurations and OEM customization options.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
