Wall bracket/monitor bracket
- Versatile wall bracket for monitor mounting
- Lightweight design with a net weight of 2.3 kg
- Dimensions: 400mm x 270mm x 160mm (package)
- Durable construction using steel, aluminum alloy, and plastic
- Supports panel sizes up to 255mm x 126mm (customizable)
- Maximum load capacity of 25 kg
- Adjustable tilt feature (+/-15°) for optimal viewing angles
- Includes essential accessories: screws and handles
- Sleek surface treatment with a painting coat for enhanced aesthetics
- Efficient wall channel design measuring 100mm in length and 31mm in width
- SKU
- WM001E
- Brand
- CRT
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

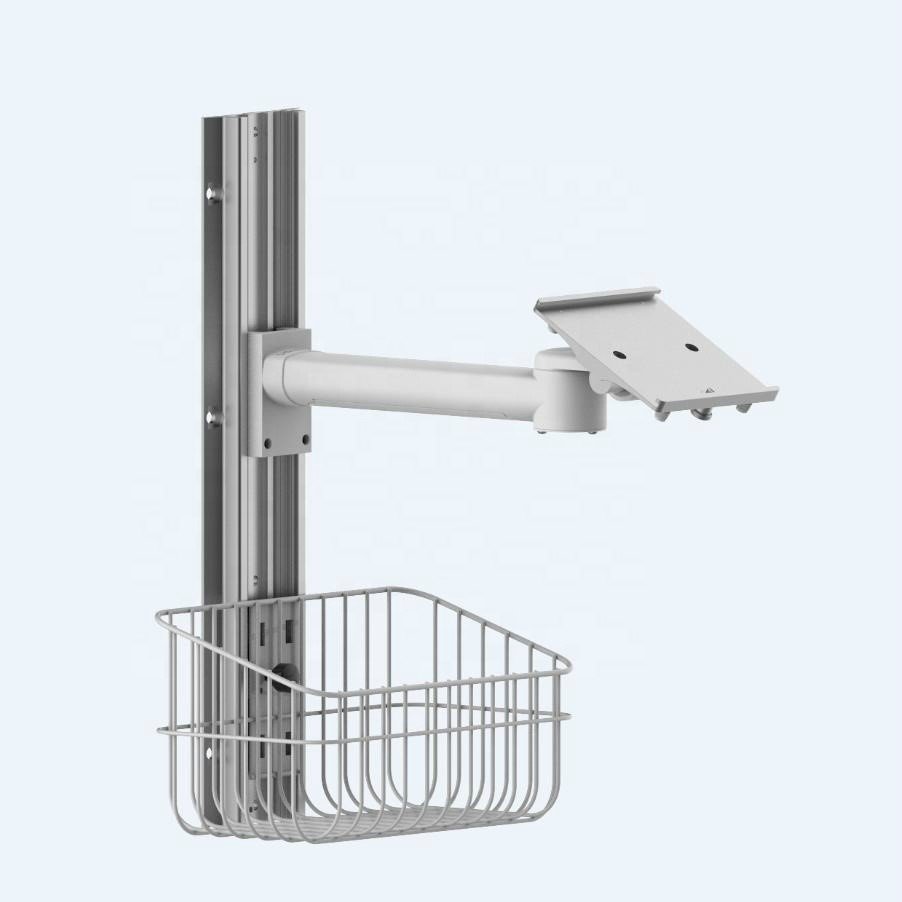

Wall Bracket / Monitor Bracket
Versatile wall-mounted bracket system designed for secure monitor and display installation in clinical environments. Lightweight yet robust construction with adjustable tilt and maximum load capacity of 25 kg, supporting panel sizes up to 255mm × 126mm with full customization available.
Clinical overview
The Wall Bracket / Monitor Bracket system provides a robust, space-efficient solution for mounting displays and monitors in clinical and medical workstation environments. With a maximum load capacity of 25 kg and support for panel sizes up to 255mm × 126mm, this bracket accommodates a wide range of medical displays and monitoring equipment. The adjustable tilt feature (±15°) enables optimal viewing angles for clinicians, reducing neck strain and improving ergonomic positioning during extended use.
Constructed from durable steel, aluminum alloy, and plastic components, the bracket features a sleek painted surface treatment for aesthetic integration into modern clinical spaces. The lightweight design (2.3 kg net weight) simplifies installation while maintaining structural integrity. The aluminum alloy wall channel (100mm × 160mm) provides secure wall mounting, and the system includes essential accessories such as mounting screws and handles for straightforward setup and adjustment.
Key features & surgeon benefits
Secure Wall Installation
- Maximum load capacity of 25 kg ensures stable display mounting
- Aluminum alloy wall channel (100mm × 31mm) provides robust anchoring
- Supports panel sizes up to 255mm × 126mm with customization available
Adjustable Viewing Position
- Tilt adjustment range of ±15° for optimal viewing angles
- Reduces clinician neck and eye strain during prolonged monitoring
- Arm kit dimensions (260mm length × 50mm width × 130mm depth) accommodate various display sizes
Durable & Lightweight Design
- Steel, aluminum alloy, and plastic construction for long-term reliability
- Net weight of 2.3 kg simplifies installation and repositioning
- Painted surface treatment provides aesthetic appeal and corrosion resistance
Flexible Configuration
- Panel size support customizable beyond standard 255mm × 126mm specification
- OEM solutions available for specialized clinical applications
- Integrated basket (315mm × 190mm × 130mm deep) for cable and accessory management
Technical specifications
| Indications | Medical display mounting, clinical workstations, monitoring systems |
|---|---|
| Panel size support | Up to 255mm × 126mm (customizable) |
| Maximum load capacity | 25 kg |
| Tilt adjustment | ±15° |
| Material | Steel, Aluminum Alloy, Plastic |
| Wall channel dimensions | 100mm length × 31mm width (Aluminum Alloy) |
| Arm kit dimensions | 260mm length × 50mm width × 130mm depth |
| Basket dimensions | 315mm × 190mm × 130mm deep |
| Net weight | 2.3 kg |
| Package dimensions | 400mm × 270mm × 160mm |
| Accessories included | Mounting screws, handles |
| Surface treatment | Painted coating |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Wall bracket assembly | Complete wall-mounted bracket with aluminum alloy channel and steel arm kit | 1 |
| Mounting screws | Hardware for wall installation and panel attachment | As required |
| Handles | Adjustment handles for tilt positioning | 2 |
| Basket | Cable management and accessory storage basket (315mm × 190mm × 130mm deep) | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your specific mounting requirements, obtain detailed pricing, and arrange delivery. We offer full customization and OEM solutions for specialized clinical applications.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
