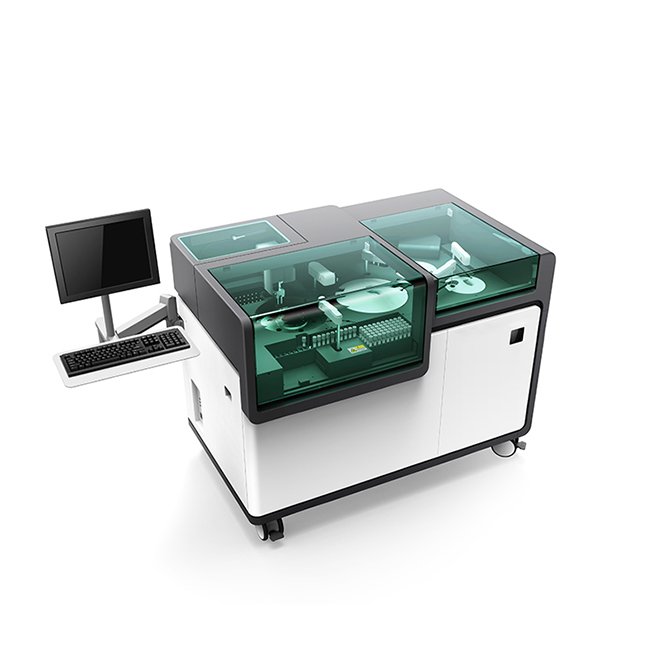

Microarray Chemiluminescence Biochip Detection System NEUCM05
- Product Name: Microarray Chemiluminescence Biochip Detection System NEUCM05
- 2nd Generation Microarray Chemiluminescent Immunoassay System
- High throughput with a capability of 720 tests/hour
- Fully automatic operation with 60 sample positions and 18 reagent positions
- Requires only 180ul of blood for comprehensive testing
- High accuracy with CV ≤5% and mainstream chemiluminescence technology
- Integrated 'lab on chip' design for cost-effective routine inspections
- Features liquid level detection and CCD system with 2 million 800 thousand pixels
- Compatible with hospital LIS system for seamless networking
- Compact dimensions: 1510 mm x 910 mm x 1150 mm; Weight: 310 kg
- SKU
- NEUCM05
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Microarray Chemiluminescence Biochip Detection System NEUCM05
2nd generation fully automatic microarray chemiluminescent immunoassay system delivering 720 tests per hour with integrated lab-on-chip design. Requires only 180 µL of blood for comprehensive multi-parameter testing with CV ≤5% and seamless LIS integration.
Clinical overview
The NEUCM05 is a 2nd generation microarray chemiluminescent immunoassay system engineered for high-throughput clinical laboratory environments. With integrated lab-on-chip technology, the system consolidates multiple routine inspection parameters into a single biochip, reducing material costs while maintaining diagnostic accuracy. The platform requires only 180 µL of whole blood to perform comprehensive multi-parameter testing, making it ideal for paediatric and geriatric populations where sample volume is critical.
Fully automatic operation eliminates manual handling errors and enables continuous sample loading during testing cycles. The system's 720 tests-per-hour throughput, combined with random access and emergency priority modes, supports both routine batch processing and urgent clinical requests. Mainstream chemiluminescence detection technology ensures high sensitivity, wide linearity, and excellent repeatability with coefficient of variation ≤5%, meeting stringent clinical laboratory standards.
Key features & surgeon benefits
High-Speed Automation
- 720 tests per hour processing capacity
- 60 sample positions with continuous loading capability
- Random access, batch, and emergency priority modes
Fully Automatic Operation
- Teflon-coated sample and reagent probe with liquid level detection
- Integrated biochip loading system eliminates manual steps
- Windows 7 operating system with LIS integration via COM or network
Cost-Effective Testing
- Lab-on-chip design consolidates multiple parameters on single biochip
- Minimal sample volume requirement (180 µL) reduces waste
- Reduced reagent consumption and material costs per test
Clinical-Grade Precision
- Coefficient of variation ≤5% across all parameters
- CCD detection system with 2.8 million pixel resolution
- 5-point calibration methodology for linearity assurance
Technical specifications
| System Type | 2nd Generation Microarray Chemiluminescent Immunoassay |
|---|---|
| Throughput | 720 tests per hour |
| Sample Positions | 60 positions with continuous loading |
| Reagent Positions | 18 positions |
| Sample Volume | 180 µL whole blood per test |
| Detection System | CCD with 2.8 million pixels |
| Precision (CV) | ≤5% |
| Calibration | 5-point calibration method |
| Operating Temperature | 30 ± 0.1°C |
| Microarray Configuration | 56 lattices per biochip |
| Material | Microarray biochip with Teflon-coated probes |
| Dimensions | 1510 mm (L) × 910 mm (W) × 1150 mm (H) |
| Weight | 310 kg |
| Power Supply | 110V/220V ± 22V, 50/60Hz ± 1Hz, 1500VA |
| Operating Environment | 20–26°C, 85–106 kPa |
| Networking | LIS integration via COM port or network card |
| Operating System | Windows 7 |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | NEUCM05 Microarray Chemiluminescence Detection System with integrated CCD detection module | 1 |
| Sample Probe | Teflon-coated sample probe with liquid level detection | 1 |
| Reagent Probe | Teflon-coated reagent probe with liquid level detection | 1 |
| Biochip Loader | Automatic microarray biochip loading mechanism | 1 |
| Temperature Control Module | Precision temperature maintenance system (30 ± 0.1°C) | 1 |
| CCD Detection Module | 2.8 million pixel CCD camera system | 1 |
| Control Software | Windows 7 operating system with LIS integration interface | 1 |
Get in touch for pricing & availability
Contact our laboratory equipment specialists to discuss system configuration, reagent compatibility, and installation timelines. We provide comprehensive support for LIS integration and operator training.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
