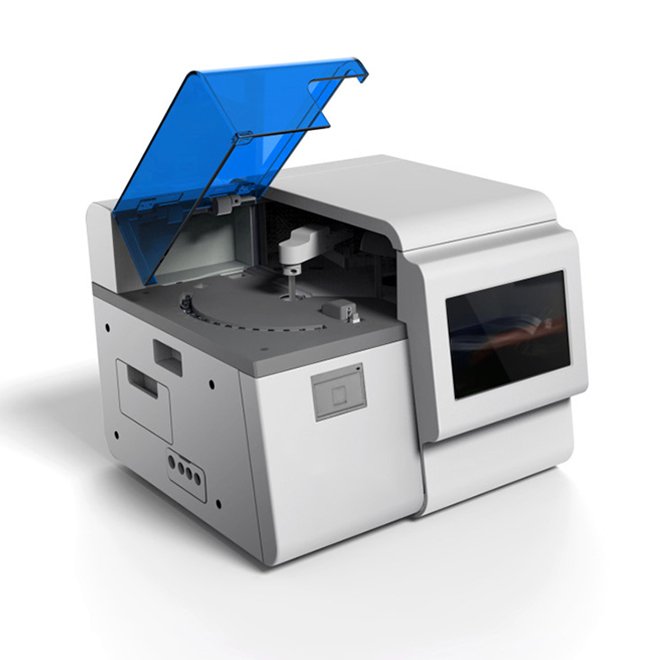

Microarray Chemiluminescence Biochip Detection System NEUCM06
- Advanced Microarray Chemiluminescent Immunoassay System
- Capable of performing 420 tests per hour
- Supports random, batch, and emergency priority operation modes
- Features 15 sample positions with continuous loading capability
- Includes two reagent positions for optimized testing
- Utilizes a high-resolution CCD detection system with 2.8 million pixels
- Easy calibration with a 5-point method
- Compact design with dimensions of 400 mm x 500 mm x 400 mm
- Weighs 30 kg and operates on a Windows 7 platform
- Networking capabilities to connect with hospital LIS systems
- SKU
- NEUCM06
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Microarray Chemiluminescence Biochip Detection System NEUCM06
Advanced microarray chemiluminescent immunoassay system delivering 420 tests per hour with continuous sample loading and high-resolution CCD detection. Supports random, batch, and emergency priority operation modes for flexible laboratory workflows.
Clinical overview
The NEUCM06 is a fully automated microarray chemiluminescent immunoassay system engineered for high-throughput clinical laboratory diagnostics. With a throughput of 420 tests per hour, the system accommodates cardiopulmonary markers, infection markers, and tumor markers using both one-step and two-step assay protocols. The continuous sample loading capability and flexible operation modes—random, batch, and emergency priority—ensure seamless integration into busy clinical environments.
Equipped with a high-resolution CCD detection system featuring 2.8 million pixels, the NEUCM06 delivers precise, reproducible results with a coefficient of variation ≤5%. The compact footprint (400 × 500 × 400 mm) and straightforward 5-point calibration method minimize training requirements, while networking capabilities enable direct integration with hospital laboratory information systems (LIS) for streamlined data management and traceability.
Key features & surgeon benefits
High-Speed Testing
- 420 tests per hour capacity
- 15 sample positions with continuous loading
- Reduces turnaround time for critical results
Flexible Operation Modes
- Random, batch, and emergency priority modes
- Liquid level detection on Teflon-coated probes
- Seamless LIS integration via COM or network card
Advanced Detection
- 2.8 million pixel CCD detection system
- CV ≤5% for reproducible results
- 5-point calibration for accuracy
Compact & Efficient
- Compact design: 400 × 500 × 400 mm, 30 kg
- Windows 7 platform for easy operation
- Two reagent positions for optimized testing
Technical specifications
| System Type | NEUCM06 Microarray Chemiluminescent Immunoassay |
|---|---|
| Throughput | 420 tests per hour |
| Sample Positions | 15 positions with continuous loading capability |
| Reagent Positions | 2 positions |
| Operation Modes | Random, batch, and emergency priority |
| Detection System | CCD with 2.8 million pixels |
| Calibration | 5-point calibration method |
| Precision (CV) | ≤5% |
| Temperature Control | 30 ± 0.1°C |
| Operating System | Windows 7 |
| Dimensions | 400 mm × 500 mm × 400 mm |
| Weight | 30 kg |
| Power Supply | 110V/220V ± 22V, 50/60Hz ± 1Hz, 1000VA |
| Operating Environment | 20–26°C, 85–106 kPa |
| Networking | LIS integration via COM or network card |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | NEUCM06 Microarray Chemiluminescence Biochip Detection System | 1 |
| Sample Carousel | 15-position continuous loading sample holder | 1 |
| Reagent Module | 2-position reagent dispenser with liquid level detection | 1 |
| CCD Detector | 2.8 million pixel high-resolution detection module | 1 |
| Control Software | Windows 7-based operation and data management system | 1 |
| LIS Interface | COM and network connectivity module | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system specifications, assay menu, and integration requirements. We provide comprehensive support for installation, training, and ongoing technical assistance.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
