Mini Portable Veterinary Black and White Ultrasound Machine NEUVU42
$2,950.00$3,950.00 (-25%)
– Mini Portable Veterinary Black and White Ultrasound Machine NEUVU42
– Suitable for equine, bovine, sheep, swine, dogs, and cats
– 5.8-inch TFT-LCD monitor with 256 grayscale levels
– Multiple display modes: B, B+B, 4B, B+M, M
– Scanning depth of up to 220mm with 8 adjustable levels
– Lightweight design, weighing ≤650g for easy portability
– Supports measurements for distance, circumference, volume, and heart rate
– Operates in both Chinese and English
– Reports and image processing features available
– Optional probes for various scanning needs including convex and linear arrays
Mini Portable Veterinary Black and White Ultrasound Machine NEUVU42

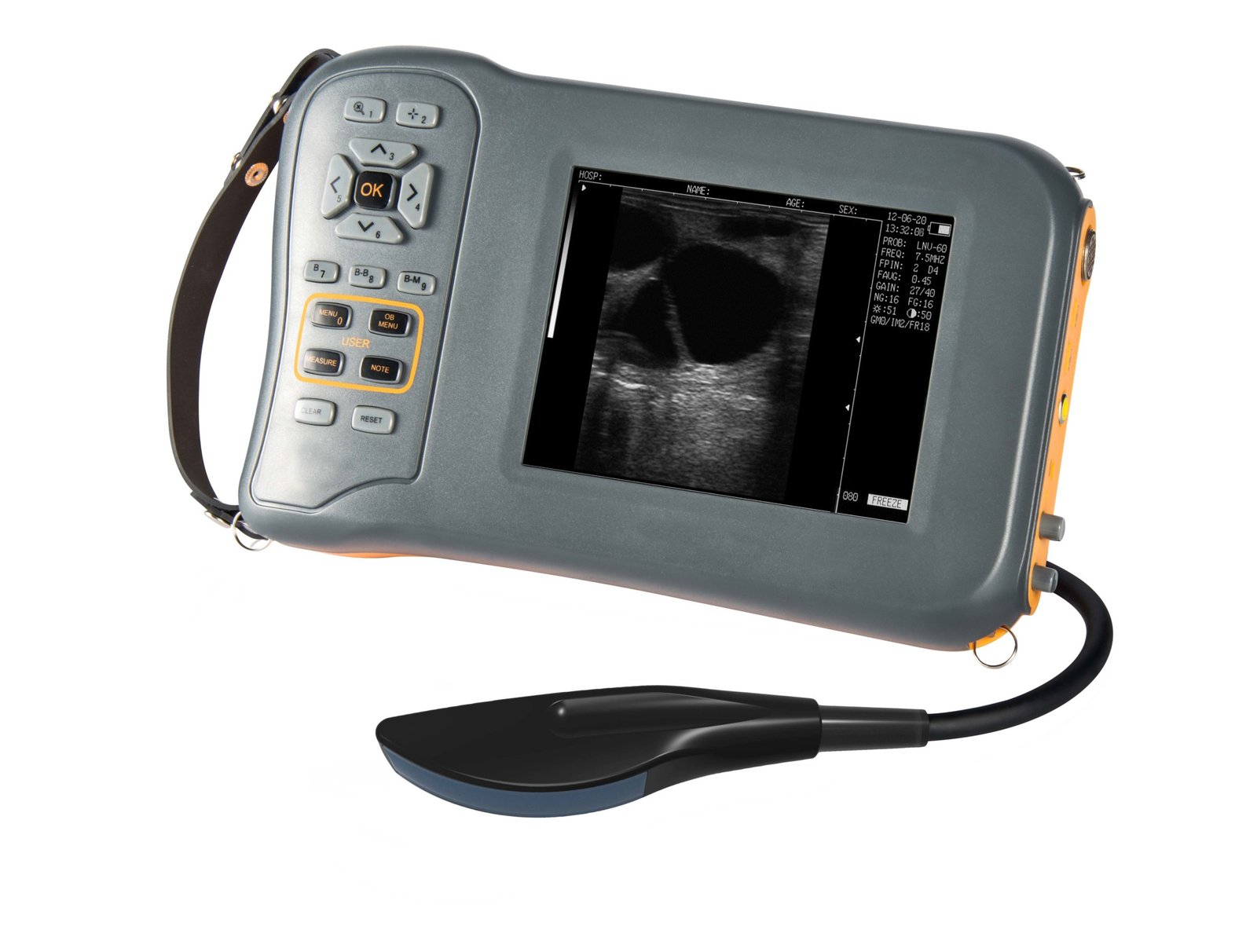

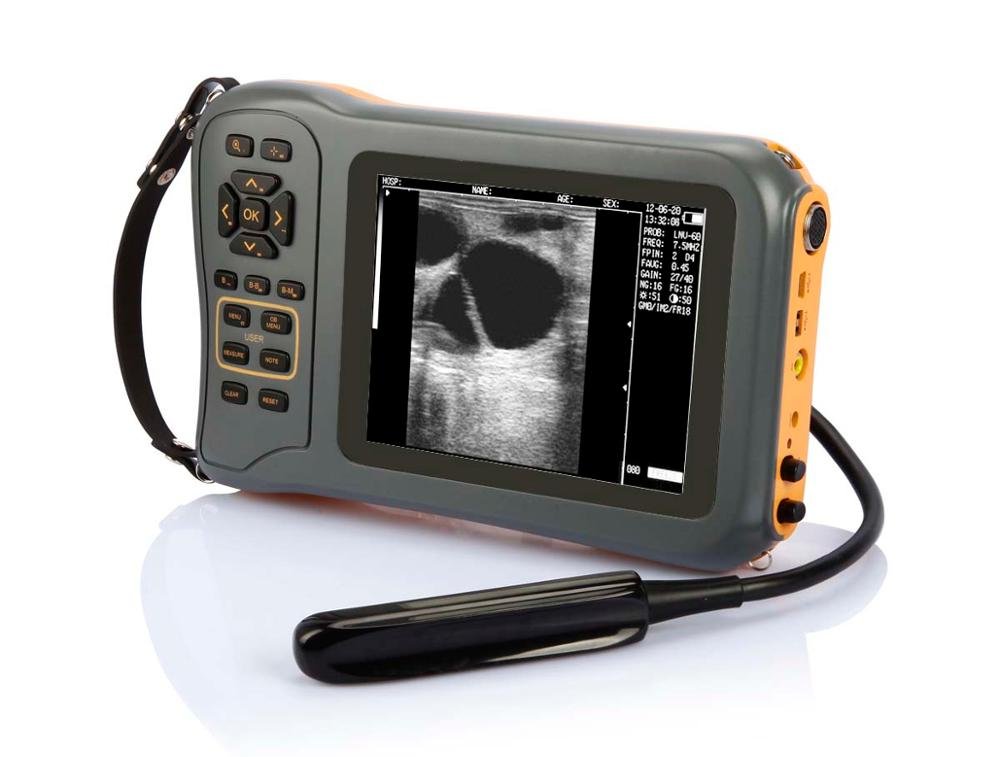

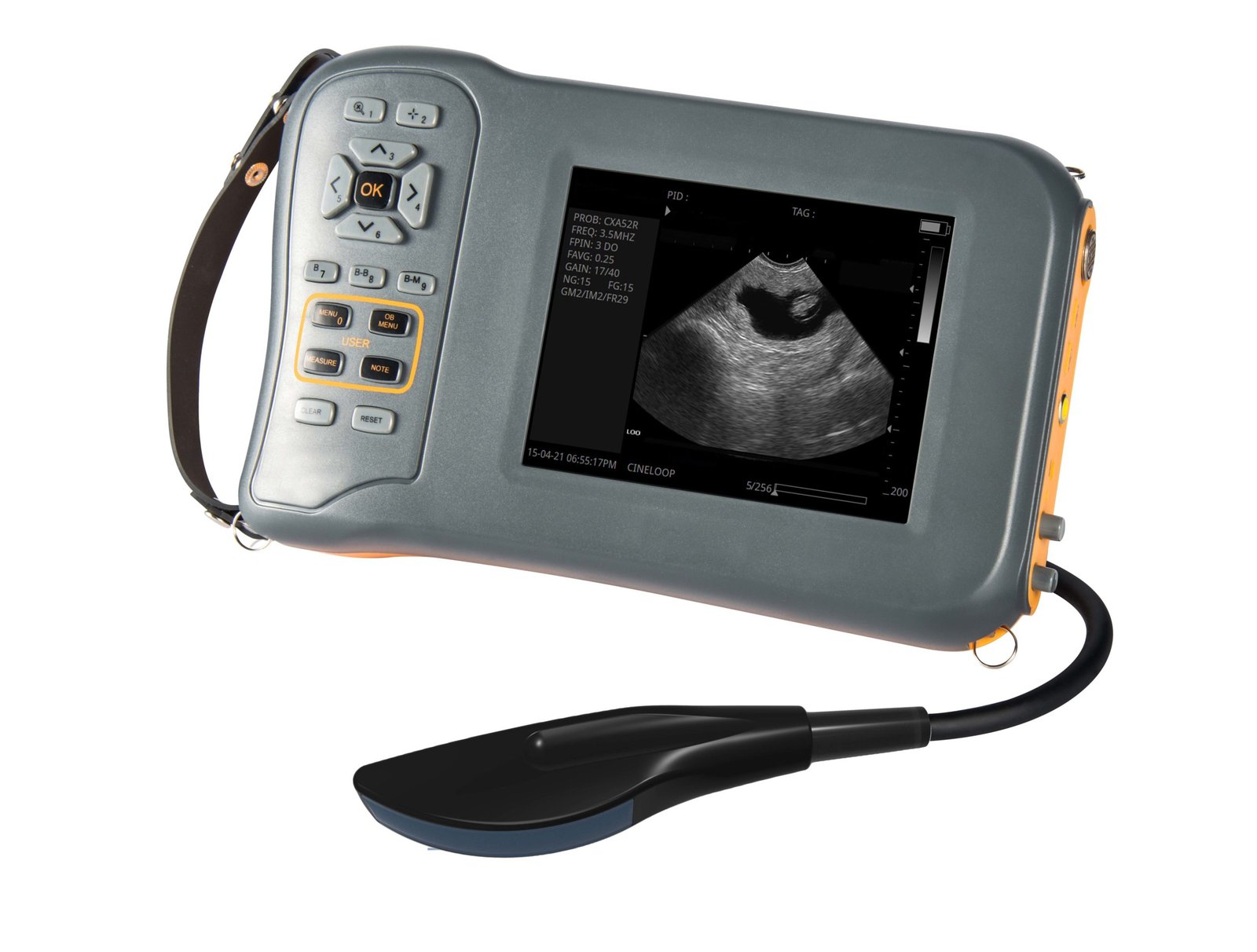

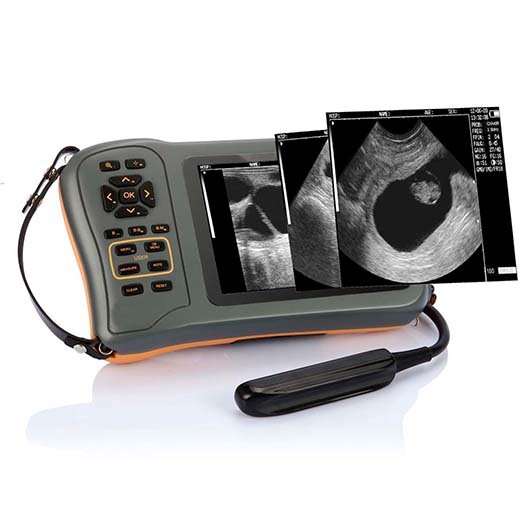

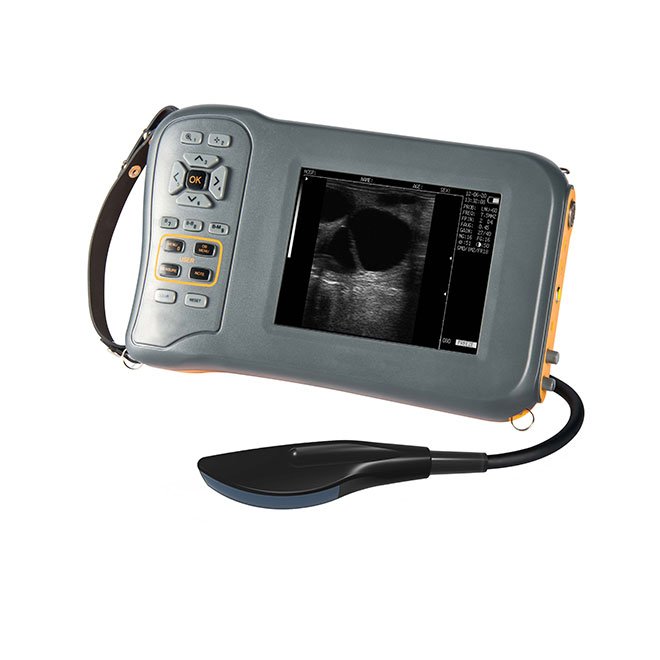

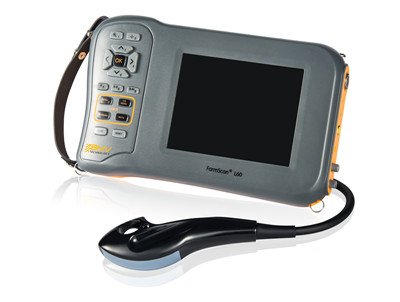

Compact, lightweight, and clinically versatile ultrasound system designed for equine, bovine, ovine, porcine, canine, and feline applications. The NEUVU42 delivers real-time B-mode imaging with advanced measurement capabilities in a portable form factor weighing under 650g, making it ideal for field and clinic-based veterinary practice.
Clinical overview
The NEUVU42 is a purpose-built portable ultrasound system engineered for veterinary practitioners requiring real-time diagnostic imaging across multiple species. With a 5.8-inch TFT-LCD display offering 256 grayscale levels and multiple imaging modes (B, B+B, 4B, B+M, M), the device delivers clinically relevant resolution for soft tissue, cardiac, and reproductive assessments in equine, bovine, ovine, porcine, canine, and feline patients.
The system’s lightweight construction (≤650g) and compact footprint enable seamless integration into field-based veterinary practice, mobile clinics, and traditional clinic environments. Advanced measurement capabilities—including distance, circumference, volume, ejection fraction, and heart rate calculations—support both routine screening and detailed diagnostic protocols. Bilingual operation (Chinese/English), integrated reporting, and image processing features enhance workflow efficiency and clinical documentation.
Key features & surgeon benefits
Versatile Imaging Platform
- Validated for equine, bovine, ovine, porcine, canine, and feline applications
- Scanning depth up to 220mm with 8 adjustable magnification levels
- Frequency range 2.0–10.0 MHz supports superficial and deep tissue assessment
Streamlined Clinical Operation
- 5.8″ high-resolution TFT-LCD with 256 grayscale levels for clear image detail
- Multiple display modes (B, B+B, 4B, B+M, M) for flexible diagnostic approaches
- Cine-loop ≥400 frames enables real-time review and retrospective analysis
Field-Ready Design
- Ultra-lightweight at ≤650g—ideal for mobile and field-based veterinary work
- Integrated measurement suite (distance, circumference, volume, EF, heart rate) reduces need for external tools
- Cost-effective entry point for multi-species veterinary ultrasound imaging
Flexible Configuration
- Multiple probe options: convex, micro-convex, linear, and endo-rectal arrays
- Bilingual interface (Chinese/English) and integrated reporting/image processing
- OEM customisation available; 2-year manufacturer warranty and lifetime technical support
Technical specifications
| Indications | Equine, bovine, sheep, swine, dogs, cats, and other veterinary species |
|---|---|
| Display | 5.8-inch TFT-LCD, 256 grayscale levels |
| Display modes | B, B+B, 4B, B+M, M |
| Scanning depth | Up to 220mm with 8 adjustable levels |
| Frequency range | 2.0–10.0 MHz |
| Scanning type | Electronic linear and electronic convex array |
| Scanning angle | 30–145 degrees |
| Detection depth (convex probe) | 24cm |
| Slice thickness | Less than 8.0mm |
| Cine-loop | ≥400 frames; automatic and manual playback |
| Edge enhancement | Adjustable 0–3 grades |
| Dynamic range | 30–150dB, 5dB stepping |
| Measurements | Distance, circumference, volume, EF rate, heart rate, time; OB measurements (GS, BL, HL, SL, USD, HD, BD, CRL, EDD, GA) |
| Image processing | Available; histogram, image smooth (≥4 grades), gamma correction, pseudo color (3 options) |
| Conversion | Up/down, left/right |
| Ports | One mouse port, one video (PAL/NTSC), one USB 2.0 |
| Interface language | Chinese and English |
| Weight | ≤650g |
| Reporting | Available with date, time, hospital, patient name, age, sex, and comments |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main unit | NEUVU42 portable ultrasound machine with 5.8″ TFT-LCD display | 1 |
| Standard probe | 65L50S convex array probe (6.5MHz, R=50mm) | 1 |
| Optional probe 1 | 75L50S linear array probe (7.5MHz, L=50mm) | As ordered |
| Optional probe 2 | 35C60H linear array probe (3.5MHz, L=50mm) | As ordered |
| Optional probe 3 | 50C20H convex array probe (5.0MHz, R=20mm) | As ordered |
| Optional probe 4 | 35C60L curve probe (3.5MHz, R=50mm) | As ordered |
| Accessories | USB 2.0 cable, video cable (PAL/NTSC), mouse, power adapter, gel bottle, protective carrying case | 1 set |
Get in touch for pricing & availability
Contact our sales team to discuss probe configurations, OEM customisation options, and delivery timelines for the NEUVU42. We provide comprehensive technical support and training to ensure seamless integration into your veterinary practice.
Email: info@neuvar.com
