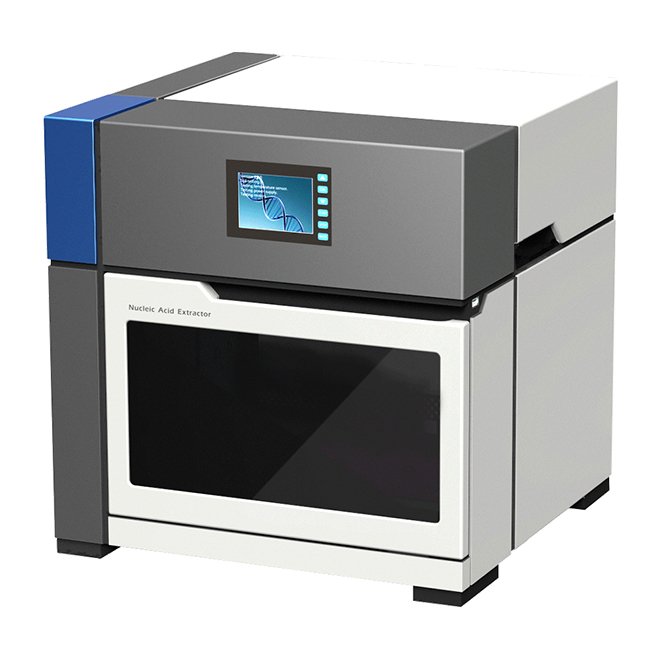

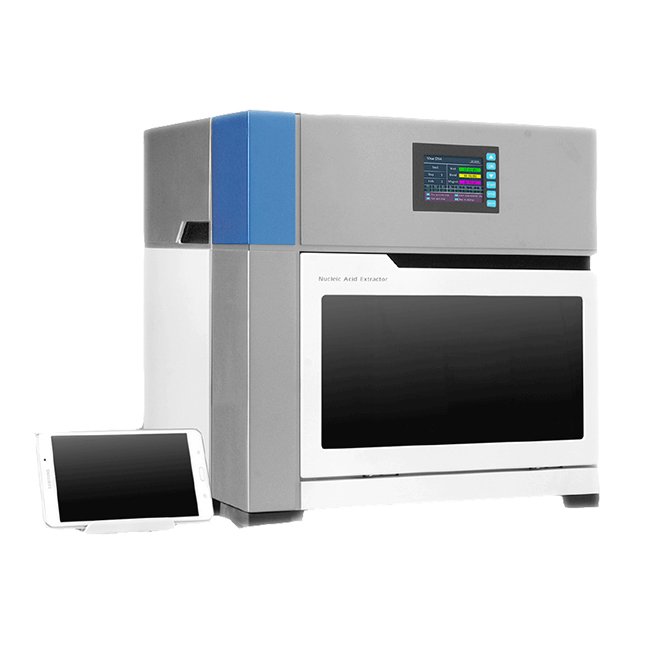

Nucleic Acid Extractor NEUNAE01
- High-capacity nucleic acid extractor with a processing volume of 30-1500μl.
- Accommodates 15, 32, or 48 samples per run, customizable based on requirements.
- Achieves a magnetic particle collection efficiency of ≥95%.
- Offers multi-mode and multi-speed processing for varied application needs.
- Compatible with reagents suitable for Magnetic Particle Method.
- User-friendly interface featuring a Chinese/English touch-control operating system.
- Stores up to 15 preinstalled protocols with unlimited capacity on pad for protocol management.
- Equipped with UV light for effective pollution control.
- Supports USB computer interface and optional Ethernet network communication.
- Dimensions: 440mm(W) x 435mm(L) x 445mm(H); Weight: 31.5kg; Power: 600W.
- SKU
- NEUNAE01
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Nucleic Acid Extractor NEUNAE01
High-capacity automated nucleic acid extraction system with magnetic particle collection efficiency ≥95%. Processes 30–1500 μl volumes with 15, 32, or 48 samples per run. Multi-mode, multi-speed operation with integrated UV contamination control and dual-language touch interface for seamless laboratory workflow.
Clinical overview
The Nucleic Acid Extractor NEUNAE01 is a fully automated platform designed for high-throughput nucleic acid isolation from diverse biological matrices. Employing magnetic particle collection technology with ≥95% efficiency, the system delivers consistent, high-purity nucleic acid yields suitable for downstream molecular applications including PCR, qPCR, sequencing, and diagnostic assays.
With flexible sample capacity (15, 32, or 48 samples per run), multi-mode processing, and integrated UV contamination control, the NEUNAE01 streamlines laboratory workflows while maintaining stringent quality standards. The intuitive Chinese/English touch interface and extensive protocol library (15 preinstalled, unlimited custom) enable rapid assay deployment and operator training across diverse clinical and research settings.
Key features & surgeon benefits
Flexible Sample Capacity
- Process 15, 32, or 48 samples per run
- Customizable configurations for batch or continuous workflows
- Reduces turnaround time for high-volume laboratories
Superior Collection Efficiency
- Magnetic particle collection efficiency ≥95%
- Multi-mode, multi-speed processing for optimized extraction
- Consistent, reproducible nucleic acid yields
Intuitive Operation
- Bilingual (Chinese/English) touch-control interface
- 15 preinstalled protocols with unlimited custom capacity
- Create, edit, and delete protocols on-device or via pad
Contamination Prevention
- Integrated UV light for effective pollution control
- USB and optional Ethernet connectivity for data management
- Maintains sample integrity throughout extraction cycle
Technical specifications
| Processing Volume | 30–1500 μl (30–1000 μl standard capacity) |
|---|---|
| Sample Capacity | 15, 32, or 48 samples per run (customizable) |
| Magnetic Particle Collection Efficiency | ≥95% |
| Processing Mode | Multi-mode, multi-speed available |
| Heating Temperature | Room temperature to 120°C (cell lysis and nucleic acid elution) |
| Reagent Compatibility | Reagents suitable for Magnetic Particle Method |
| Operation Interface | Chinese/English-Language Operating System, Touch-control |
| Protocol Storage | 15 preinstalled protocols in main unit; unlimited on pad |
| Protocol Management | Create, edit, delete, protocol mode |
| Contamination Control | UV light |
| Computer Interface | USB |
| Network Communication | Ethernet (optional) |
| Dimensions | 440 mm (W) × 435 mm (L) × 445 mm (H) |
| Weight | 31.5 kg |
| Power Requirements | AC 110±10% / 110V/230V±10%, 50/60Hz / 60 Hz±1 Hz, 600 W |
| Operating Temperature | 10–40°C |
| Operating Humidity | <80% relative humidity |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Nucleic Acid Extractor NEUNAE01 with integrated magnetic particle separation module | 1 |
| Touch Control Pad | Bilingual (Chinese/English) interface for protocol management and operation | 1 |
| UV Light Module | Integrated contamination control system | 1 |
| Power Cable | AC power supply (110–110V/230V, 50/60 Hz) | 1 |
| USB Interface Cable | For computer connectivity and data transfer | 1 |
| Sample Carrier | Configurable for 15, 32, or 48 sample capacity | 1 |
| User Manual | Bilingual operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your nucleic acid extraction requirements, request a detailed quote, or schedule a product demonstration. We offer flexible configurations and comprehensive support for laboratory integration.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
