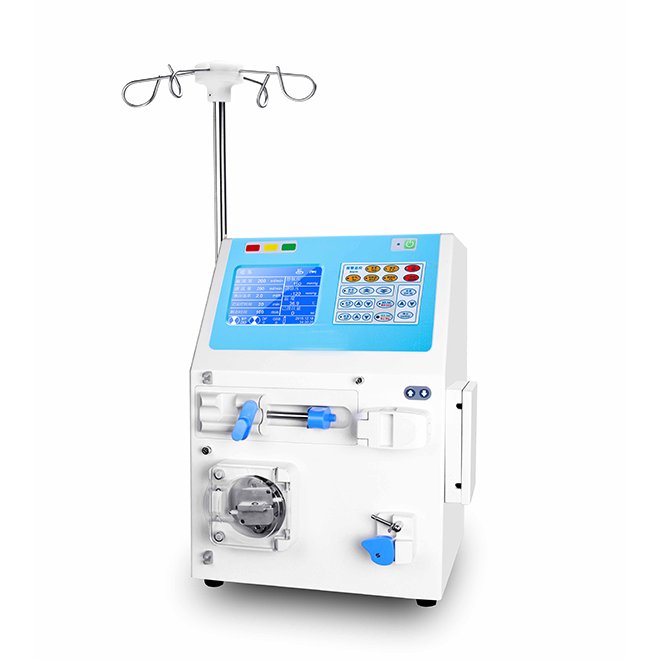

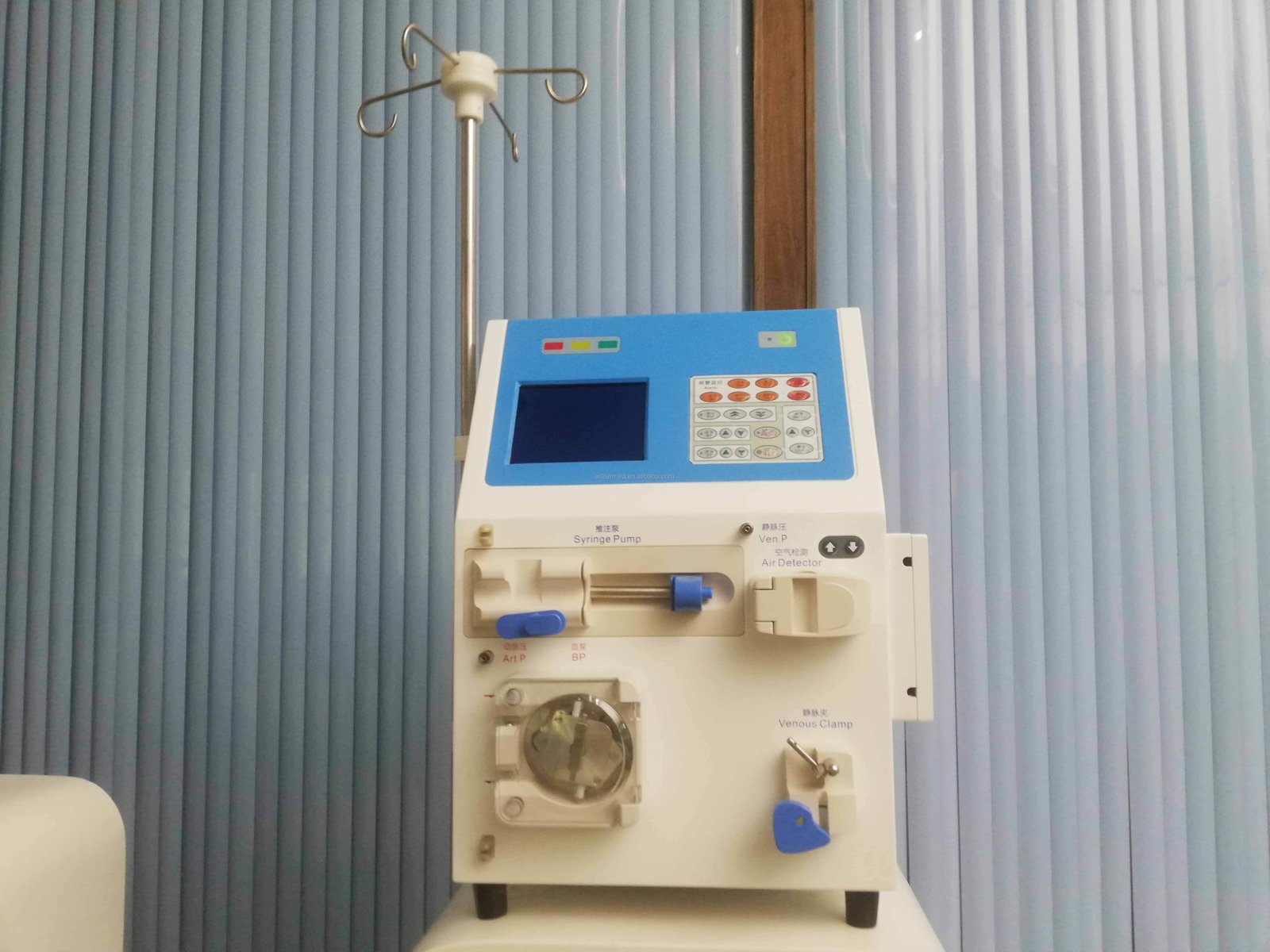

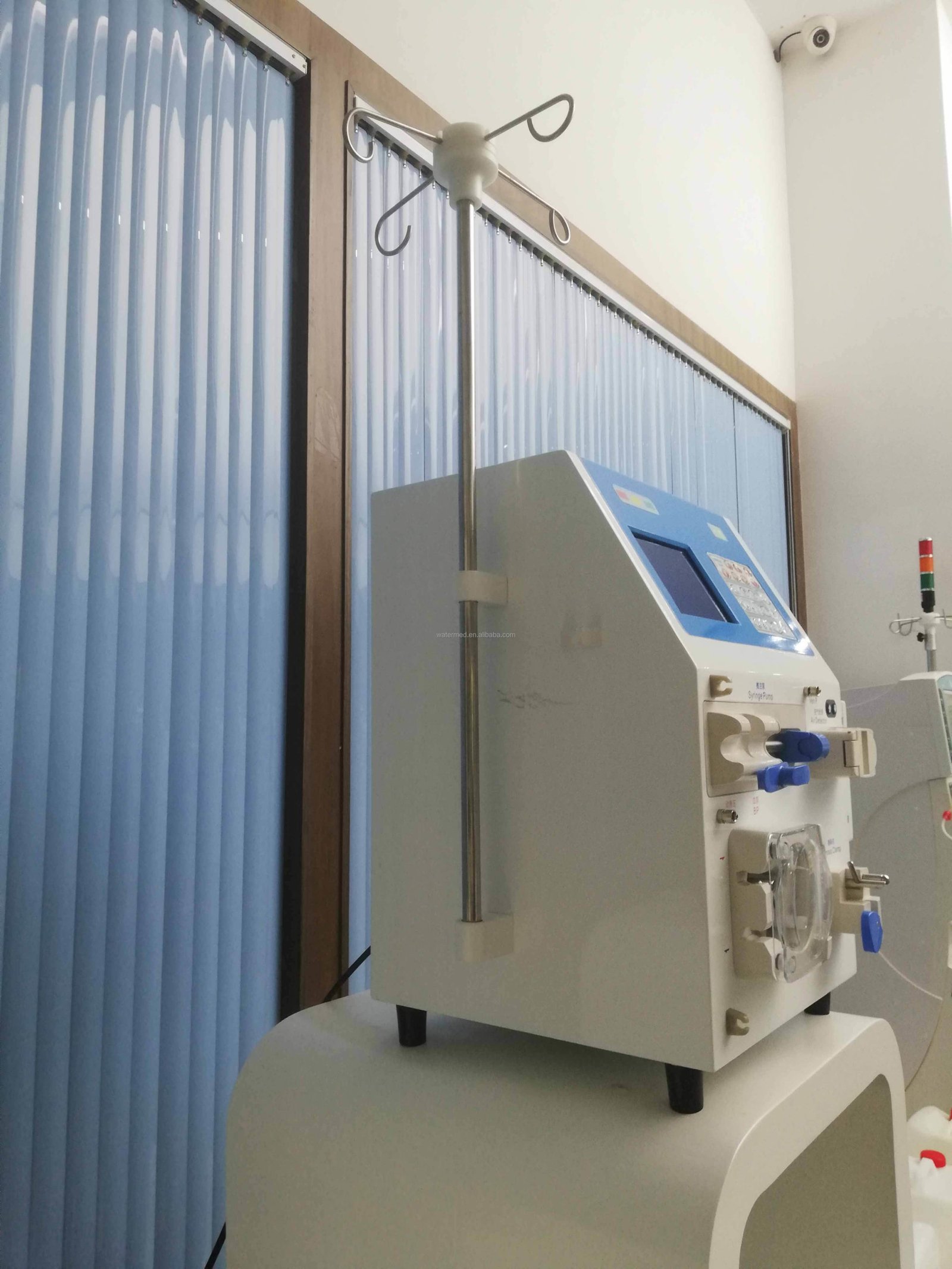

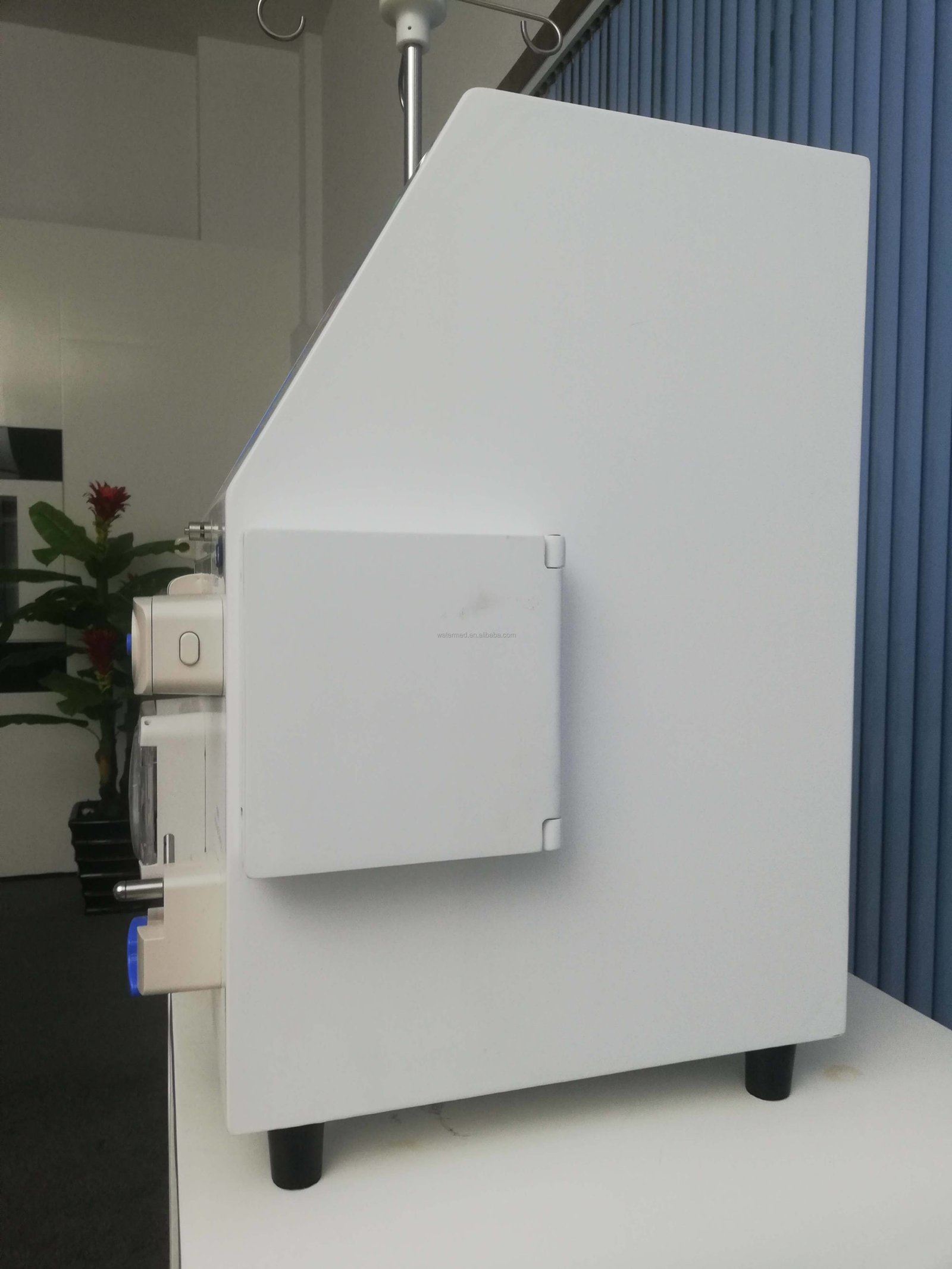

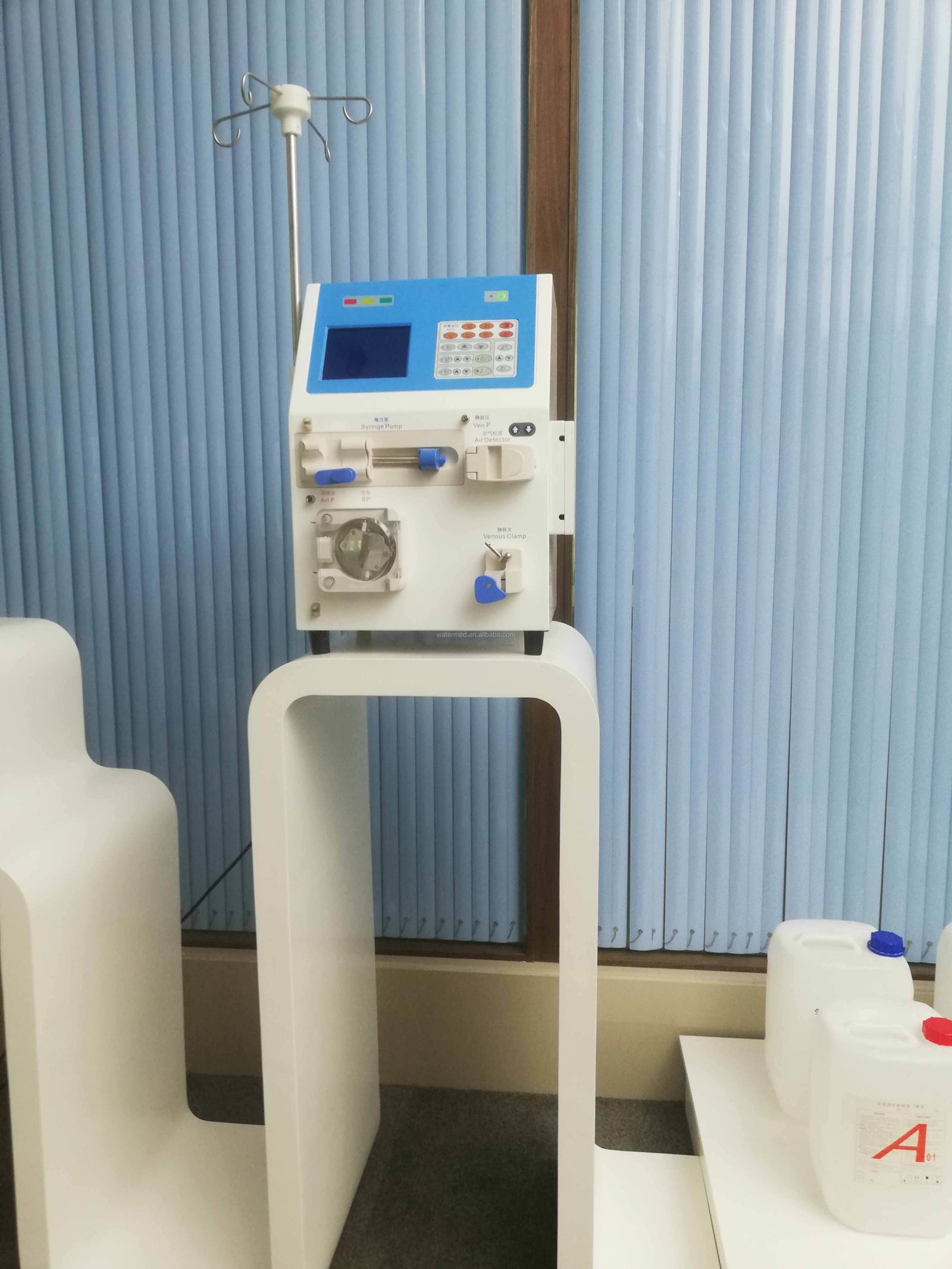

One Pump Hemoperfusion Machine NEUHM21
$9,390.00$9,770.00 (-4%)
– Advanced One Pump Hemoperfusion Machine NEUHM21
– Ideal for hemoperfusion and pure ultrafiltration procedures
– LCD screen for real-time monitoring of treatment parameters
– Compact and portable design for emergency and field applications
– Multiple acoustic-optic alarms for enhanced safety and alerts
– Automatic heparin injection system for patient convenience
– In-built battery backup providing at least 30 minutes of operation
– Blood temperature control during extracorporeal circulation
– Dual ultrasound and infrared monitoring for accurate assessments
– Lightweight at approximately 20 kg and compatible with AC/DC power sources
One Pump Hemoperfusion Machine NEUHM21
Advanced Portable Hemoperfusion System for Emergency and Critical Care Applications
The NEUHM21 is a state-of-the-art single pump hemoperfusion machine designed for hemoperfusion, pure ultrafiltration, and emergency toxin removal. Featuring real-time LCD monitoring, automatic heparin injection, and dual ultrasound-infrared monitoring, this compact 20kg system delivers professional-grade blood purification with AC/DC compatibility and 30-minute battery backup for ambulance and field treatment scenarios.
Medical Grade Certified
Clinical Tested
24/7 Support
Safety Guaranteed
Introduction to the NEUHM21 Hemoperfusion Machine
The One Pump Hemoperfusion Machine NEUHM21 represents the pinnacle of portable blood purification technology, specifically engineered for emergency departments, ambulance services, and field treatment environments. This advanced system combines sophisticated hemoperfusion capabilities with pure ultrafiltration functionality, enabling healthcare professionals to rapidly address drug overdoses, toxic poisoning, and fluid overload situations with precision and reliability.
Weighing only 20 kilograms and featuring intelligent AC/DC power switching with battery backup, the NEUHM21 delivers hospital-grade blood purification wherever it’s needed most. Its intuitive LCD interface provides real-time visualization of all treatment parameters, while comprehensive safety monitoring systems including dual ultrasound and infrared sensors ensure maximum patient protection. The automatic heparin injection system and constant blood temperature control during extracorporeal circulation demonstrate Neuvar’s commitment to combining clinical effectiveness with operational convenience in critical care settings.
Clinical Applications

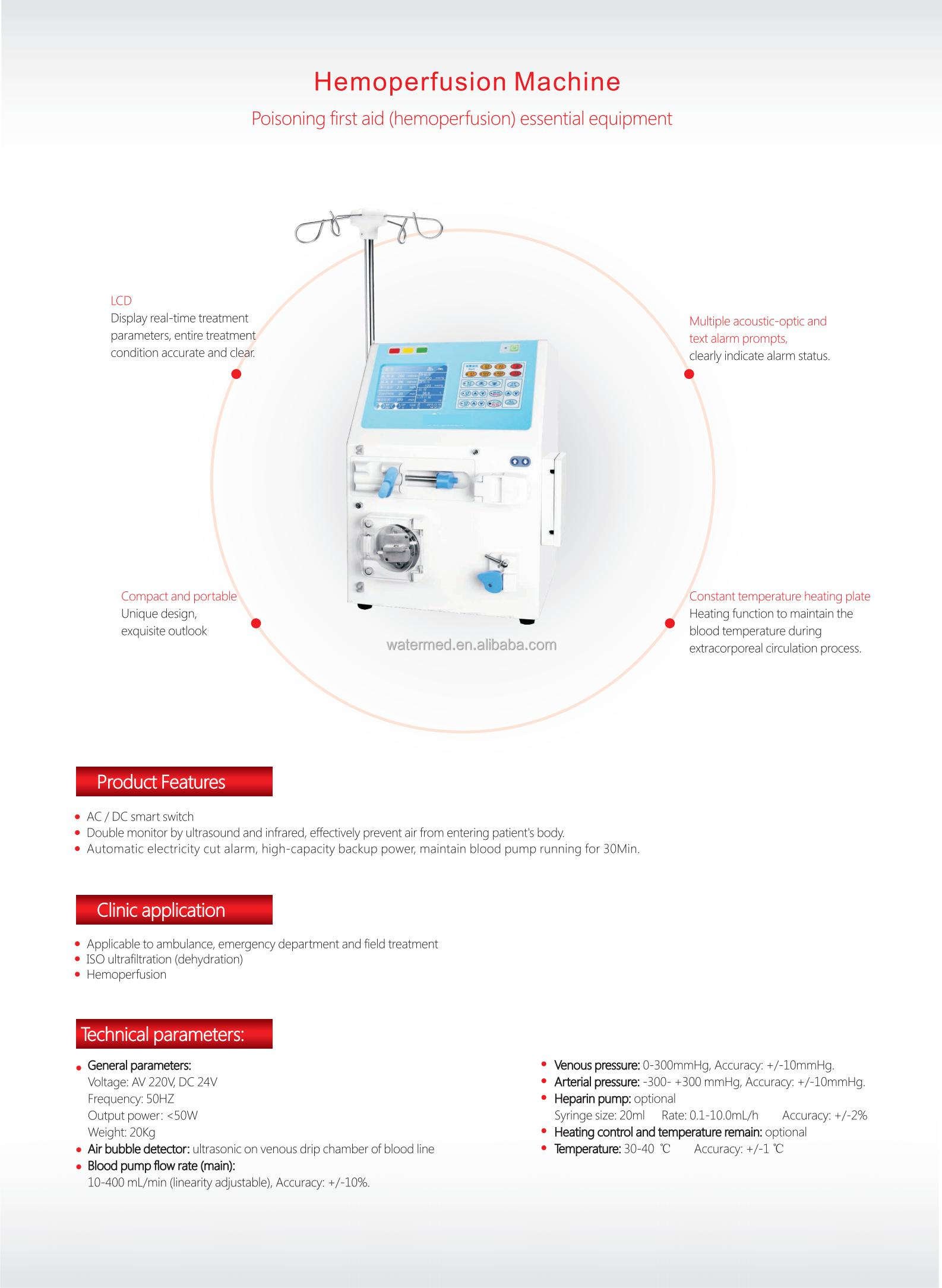

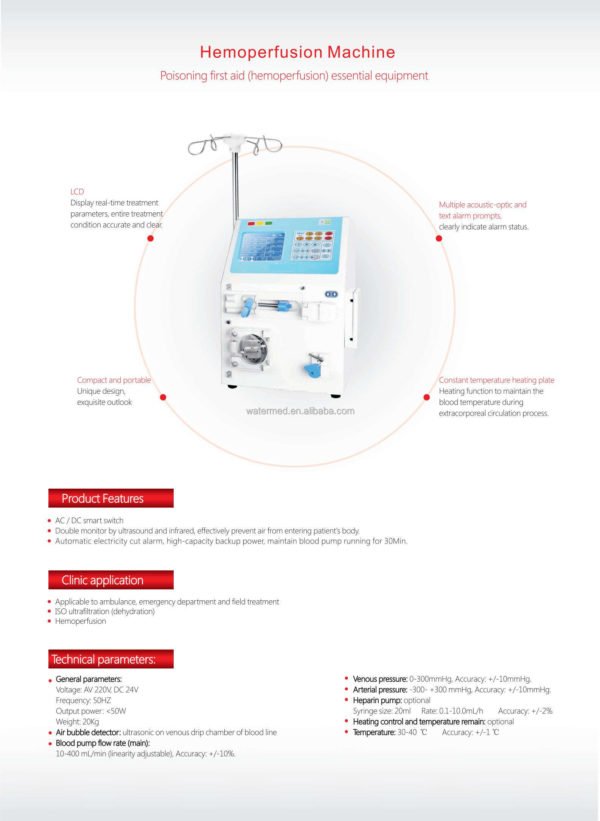

Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | NEUHM21 |
| Dimensions (L×W×H) | 440mm × 420mm × 520mm |
| Weight | Approximately 20 kg |
| Power Supply | AC 220V / DC 24V |
| Frequency | 50 Hz |
| Output Power | <50W |
| Battery Backup | Minimum 30 minutes |
| Blood Pump Flow Range | 10-400 mL/min (linearity adjustable) |
| Blood Pump Accuracy | ±10% |
| Arterial Pressure Monitoring | Display range: -300 to +300 mmHg, Accuracy: ±10 mmHg |
| Venous Pressure Monitoring | Display range: 0-300 mmHg, Accuracy: ±10 mmHg |
| Temperature Range | 30-40°C, Accuracy: ±1°C |
| Heparin Pump Syringe Size | 20 mL |
| Heparin Delivery Range | 0.1-10.0 mL/h, Accuracy: ±2% |
| Air Detection | Ultrasonic sensor on venous drip chamber |
| Display Type | LCD screen with real-time parameter display |
Key Features
Real-Time LCD Display
High-resolution LCD screen provides instant visualization of all critical treatment parameters, enabling healthcare professionals to monitor blood flow rates, pressures, temperature, and treatment time at a glance for optimal patient management.
Single Pump Design
Streamlined single pump architecture simplifies operation while maintaining precise blood flow control from 10-400 mL/min with linearity adjustable settings and ±10% accuracy for reliable treatment delivery.
AC/DC Smart Switch
Intelligent power management system automatically switches between AC 220V mains power and DC 24V battery operation, ensuring uninterrupted treatment during power fluctuations or patient transport scenarios.
Multiple Acoustic-Optic Alarms
Comprehensive alarm system combines audible tones with visual indicators and clear text messages to immediately alert clinicians to any deviations from normal operating parameters or potential safety concerns.
Compact Portable Design
Unique ergonomic design with exquisite outlook weighs only 20kg and measures 440×420×520mm, making it ideal for ambulance deployment, emergency department use, and field treatment in challenging environments.
Whole Process Monitoring
Continuous surveillance of arterial pressure (-300 to +300 mmHg), venous pressure (0-300 mmHg), blood flow, temperature, and air detection ensures complete safety throughout the entire treatment session.
Automatic Heparin Injection
Integrated heparin pump with 20mL syringe capacity delivers precise anticoagulation from 0.1-10.0 mL/h with ±2% accuracy, eliminating manual injection requirements and ensuring consistent anticoagulation protocols.
Constant Blood Temperature Control
Advanced heating control system maintains blood temperature between 30-40°C with ±1°C accuracy during extracorporeal circulation, preventing hypothermia and ensuring patient comfort throughout treatment.
Dual Monitoring Technology
Combines ultrasonic blood level detection with infrared air bubble sensing on the venous drip chamber, providing redundant safety monitoring to prevent air embolism and ensure continuous treatment integrity.
Built-In Battery Backup
Integrated rechargeable battery system provides minimum 30 minutes of continuous operation during AC power loss, enabling safe treatment completion or controlled shutdown during emergency transport situations.
Precision Pressure Monitoring
Dual pressure monitoring systems track both arterial and venous pressures with ±10 mmHg accuracy, enabling early detection of line occlusions, filter clotting, or access complications before they become critical.
Venous Clamp Safety
Automatic venous clamp activation system responds instantly to air detection or critical alarm conditions, preventing air embolism by immediately stopping blood return to the patient until the issue is resolved.
Why Choose the NEUHM21 Hemoperfusion Machine
Unmatched Portability for Critical Care: The NEUHM21’s compact 20kg design with dimensions of 440×420×520mm makes it the ideal solution for mobile critical care applications. Unlike bulky traditional hemoperfusion systems, this machine easily fits in ambulances and emergency response vehicles while the integrated 30-minute battery backup ensures continuous treatment during patient transport. The AC/DC smart switching capability means healthcare providers never need to interrupt therapy during power transitions, making it perfect for field hospitals, disaster response situations, and inter-facility transfers where continuous blood purification is essential.
Comprehensive Safety Architecture: Patient safety is paramount in extracorporeal blood purification, and the NEUHM21 delivers multiple redundant safety systems that work seamlessly together. The dual ultrasound and infrared monitoring continuously surveys for air bubbles and blood levels, while arterial and venous pressure monitoring with ±10mmHg accuracy detects circuit problems before they become dangerous. The automatic venous clamp responds instantly to safety alarms, and the multiple acoustic-optic alarm system with clear text messages ensures that clinicians are immediately aware of any deviation from normal parameters. This defense-in-depth approach to safety provides peace of mind during critical poisoning and toxin removal procedures.
Clinical Versatility and Precision: Whether treating drug overdoses, managing toxic poisoning emergencies, or performing pure ultrafiltration for fluid overload, the NEUHM21 adapts to diverse clinical scenarios with precision and reliability. The blood pump’s 10-400 mL/min adjustable range accommodates pediatric through adult patients, while the automatic heparin injection system with 0.1-10.0 mL/h delivery range ensures consistent anticoagulation without manual intervention. Temperature control maintaining 30-40°C prevents hypothermia during extended treatments, and the real-time LCD display provides instant feedback on all critical parameters enabling evidence-based treatment adjustments.
Operational Excellence and Support: Neuvar Inc. stands behind the NEUHM21 with comprehensive technical support and training programs that ensure your clinical team can maximize the system’s capabilities from day one. The intuitive LCD interface minimizes training time while the robust construction ensures reliable performance in demanding emergency environments. With 24/7 technical support, readily available consumables, and a proven track record in emergency departments and ambulance services worldwide, the NEUHM21 represents not just a purchase but a partnership with a company committed to advancing critical care through innovative medical technology.
Frequently Asked Questions
What clinical conditions can the NEUHM21 treat?
The NEUHM21 is designed for hemoperfusion treatment of drug overdoses and toxic poisoning, as well as pure ultrafiltration (ISO UF) for fluid removal. It effectively removes a wide range of toxins, pharmaceuticals, and poisons from the bloodstream through extracorporeal circulation, making it ideal for emergency departments treating acute poisoning cases, substance abuse emergencies, and fluid overload situations.
How long does the battery backup last during transport?
The NEUHM21 features a built-in battery that provides a minimum of 30 minutes of continuous operation during AC power loss. This backup duration is specifically designed to cover typical ambulance transport times and temporary power interruptions, ensuring uninterrupted treatment when transitioning between power sources or during patient transfer scenarios.
What training is required to operate the NEUHM21?
Healthcare professionals familiar with extracorporeal blood purification therapies can quickly learn to operate the NEUHM21 due to its intuitive LCD interface and clear parameter displays. Neuvar Inc. provides comprehensive training programs covering system setup, treatment protocols, alarm management, and troubleshooting. Most clinical teams become proficient within 1-2 training sessions, with ongoing technical support available 24/7.
How accurate is the blood pump flow control?
The NEUHM21’s single pump design delivers blood flow rates ranging from 10 to 400 mL/min with linearity adjustable control and ±10% accuracy. This precision ensures consistent treatment delivery across pediatric and adult patient populations while maintaining safe extracorporeal circulation parameters throughout the hemoperfusion session.
What safety alarms does the system provide?
The NEUHM21 features comprehensive acoustic-optic alarm systems that monitor arterial pressure, venous pressure, air detection, blood flow, temperature, and system status. Alarms combine audible tones with visual indicators and clear text messages on the LCD screen. The automatic venous clamp activates during critical alarms to prevent air embolism, while the multi-layered alarm architecture ensures clinicians are immediately aware of any parameter deviations.
Can the NEUHM21 be used in ambulances?
Yes, the NEUHM21 is specifically designed for ambulance applications. Its compact dimensions (440×420×520mm), lightweight 20kg construction, AC/DC smart switching capability, and 30-minute battery backup make it ideal for mobile emergency medical services. The system can operate continuously during patient transport while providing the same safety monitoring and treatment quality as stationary installations.
How does the automatic heparin injection system work?
The integrated heparin pump uses a standard 20mL syringe and delivers precise anticoagulation at rates from 0.1 to 10.0 mL/h with ±2% accuracy. Clinicians program the desired delivery rate based on patient weight and protocol requirements, and the system automatically administers heparin throughout the treatment session, eliminating the need for manual bolus injections and ensuring consistent anticoagulation.
What maintenance is required for the NEUHM21?
The NEUHM21 requires routine maintenance including cleaning after each use, periodic calibration of pressure sensors and temperature probes, and annual preventive maintenance inspections. The system includes self-diagnostic functions that alert operators to maintenance needs. Neuvar Inc. provides detailed maintenance protocols, and technical support is available to assist with any service requirements. All consumables including blood lines, filters, and cartridges are readily available through authorized distributors.
