Optical Method Automatic Coagulation Analyzer NEUFBA05
- Full-auto Coagulation Analyzer NEUFBA05
- Test Speed: 260 tests per hour
- Supports optical and magnetic beads test methods
- 48 sample positions with 10 test channels
- Drawer-style loading systems for cuvettes, reagents, and samples
- Automatic and manual dual-mode testing capability
- Refrigeration function for reagent preservation
- Bar code recognition functionality (optional)
- Abnormal result alarms and automatic retest features
- Integrated sampling pump system for efficiency
- SKU
- NEUFBA05
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Optical Method Automatic Coagulation Analyzer NEUFBA05
High-throughput full-automation coagulation analyzer delivering 260 tests per hour with dual optical and magnetic beads methodology. Supports comprehensive coagulation testing including PT, APTT, FIB, TT, factors, D-dimer, FDP, and ATIII with 10 independent test channels and integrated refrigeration for reagent preservation.
Clinical overview
The NEUFBA05 is a fully automated coagulation analyzer engineered for high-volume laboratory environments requiring rapid, reliable hemostasis assessment. With a throughput of 260 tests per hour and support for both optical and magnetic beads methodologies, the system accommodates diverse coagulation protocols including PT, APTT, fibrinogen, thrombin time, factor assays, D-dimer, FDP, and antithrombin III testing. The analyzer integrates dual sampling arms, 10 independent test channels, and intelligent pre-heating zones to minimize turnaround time while maintaining analytical precision.

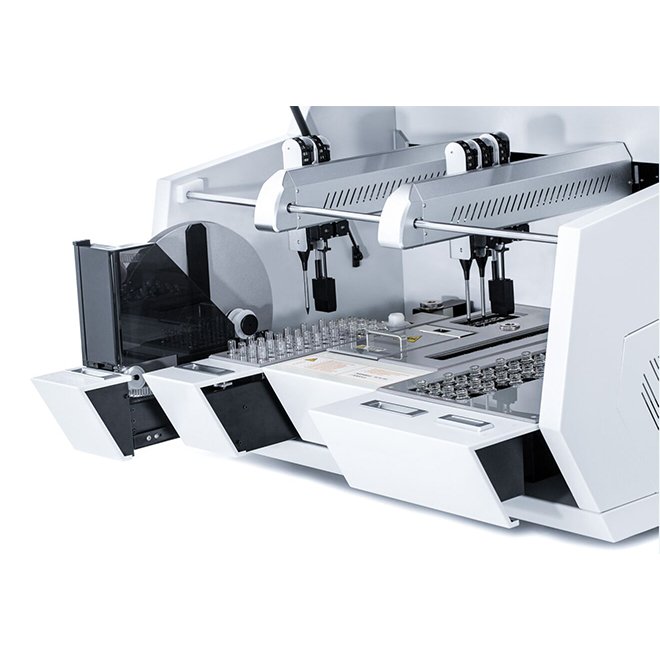

Designed for seamless laboratory workflow integration, the NEUFBA05 features drawer-style loading systems for samples, reagents, and cuvettes, reducing operator fatigue and improving ergonomics. Integrated refrigeration preserves reagent stability, while automatic quality control functions, abnormal result alarms, and emergency priority insertion capabilities ensure both efficiency and safety. LIS system compatibility and optional barcode recognition enable full laboratory information system integration for enhanced traceability and compliance.
Key features & surgeon benefits
High-Speed Testing
- 260 tests per hour capacity
- 10 independent test channels for parallel processing
- Dual sampling arms minimize idle time
Dual Test Methods
- Optical method and magnetic beads coagulation testing
- Immunoturbidimetry and chromogenic substrate support
- Comprehensive factor and special marker assays
Operator-Centric Design
- Drawer-style loading for samples, reagents, and cuvettes
- Automatic and manual dual-mode testing capability
- Emergency priority insertion for stat samples
Intelligent Monitoring
- Abnormal result alarms and automatic retest function
- Insufficient cuvette, reagent, and detergent alerts
- Dynamic coagulation curve display and PT-derived FIB calculation
Technical specifications
| Test Speed | 260 tests per hour |
|---|---|
| Test Methods | Coagulation (magnetic beads, optical), Immunoturbidimetry, chromogenic substrate |
| Test Items | PT, APTT, FIB, TT, Factors, D-dimer, FDP, ATIII |
| Test Channels | 10 |
| Sample Positions | 48 |
| Reagent Positions | 55 (with refrigeration) |
| Pre-heating Channels | 20 |
| Cuvette Capacity | 1000 cups |
| Sampling Arms | 2 |
| Washing Positions | 2 |
| Sheathed Manipulators | 1 |
| Loading Systems | Drawer-style (samples, reagents, cuvettes) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Component | Description | Qty |
|---|---|---|
| Main Analyzer Unit | Full-auto coagulation analyzer with integrated refrigeration | 1 |
| Sampling Probe Assembly | Dual-arm sampling system with liquid surface induction and constant heating | 2 |
| Test Channel Module | Independent coagulation test channels with optical and magnetic beads capability | 10 |
| Pre-heating Zone | Temperature-controlled pre-heating channels for sample and reagent conditioning | 20 |
| Reagent Carousel | Refrigerated drawer-style reagent loading system with tilt function | 1 |
| Sample Carousel | Drawer-style sample loading system with 48 positions | 1 |
| Cuvette Loader | Drawer-style cuvette loading system with 1000-cup capacity | 1 |
| Waste Container | Integrated waste management system | 1 |
| Display and Control Panel | LED-illuminated interface with barcode recognition (optional) | 1 |
| LIS Interface Module | Laboratory information system connectivity | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, pricing, and delivery timelines for the NEUFBA05 coagulation analyzer. We provide comprehensive support for laboratory integration and operator training.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
