- Maximum oxygen flow rate: 5 L/min
- Oxygen concentration: 93% ± 3% at 1 L/min
- Quiet operation with noise level < 60dB(A)
- Input power: 400VA, AC220V/50Hz
- Compact dimensions: 305*308*680 mm
- Net weight: approximately 19 kg
- Reliable performance at altitudes up to 1828 meters
- Back pressure adjustment limit: <0.5 L/min
- Safety valve release pressure: 250 kPa ± 50 kPa
- Optimal flow range: 0.5-5 L/min at nominal pressure of 7 kPa

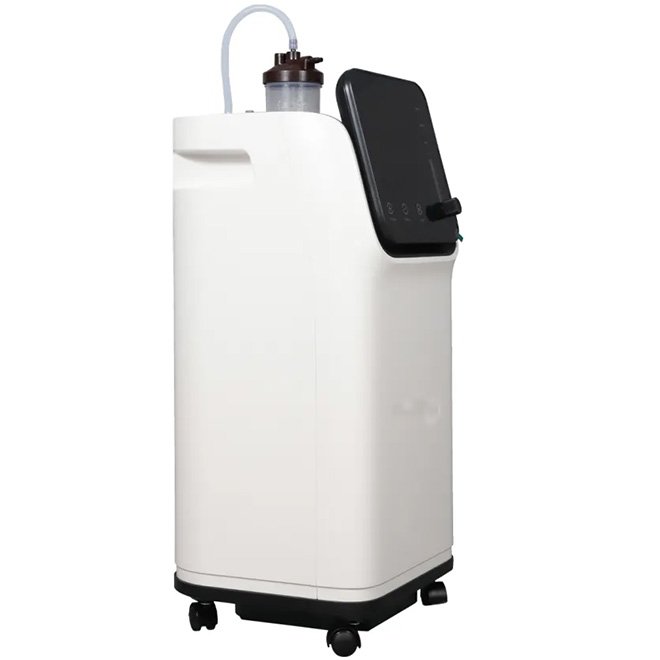

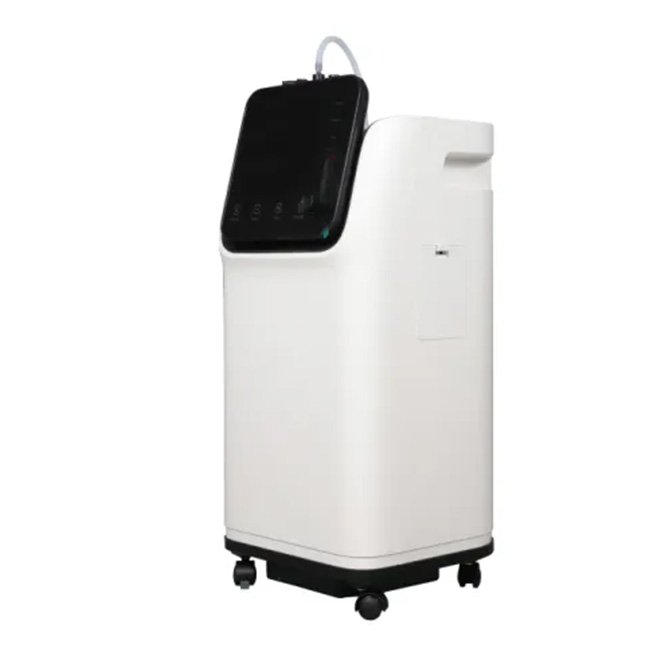

A reliable, compact oxygen concentrator delivering up to 5 L/min of 93% ± 3% oxygen concentration. Engineered for quiet operation and consistent performance at altitude, the NEUBB204 is ideal for clinical and home-care respiratory support applications.
The NEUBB204 oxygen concentrator is a stationary medical device designed to extract and concentrate oxygen from ambient air, delivering therapeutic oxygen at controlled flow rates for patients requiring supplemental oxygen therapy. With a maximum output of 5 L/min and oxygen concentration of 93% ± 3% at 1 L/min, the device meets clinical standards for both acute and chronic respiratory support applications.
Engineered for reliability and ease of use, the NEUBB204 operates at noise levels below 60 dB(A), making it suitable for clinical wards, patient rooms, and home-care environments. Its compact footprint (305 × 308 × 680 mm) and moderate weight (approximately 19 kg) facilitate placement in diverse clinical settings. The device maintains consistent oxygen delivery at altitudes up to 1828 meters, with documented performance specifications for higher elevations.
| Maximum Flow Rate | 5 L/min |
|---|---|
| Oxygen Concentration | 93% ± 3% at 1 L/min outlet pressure (nominal) |
| Flow Range (Nominal Pressure 7 kPa) | 0.5–5 L/min |
| Flow Rate Stability | < 0.5 L/min variance under back pressure |
| Output Pressure Range | 30–70 kPa |
| Safety Valve Release Pressure | 250 kPa ± 50 kPa |
| Noise Level | < 60 dB(A) |
| Power Supply | AC110V/220V / 50/60Hz |
| Input Power | 400VA |
| Dimensions | 305 × 308 × 680 mm (W × D × H) |
| Net Weight | Approximately 19 kg |
| Altitude Performance | Full concentration at ≤ 1828 m; < 90% efficiency 1828–4000 m |
| Stabilisation Time | Specified concentration reached within 30 minutes of initial start-up |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Oxygen Concentrator Unit | NEUBB204 stationary concentrator with integrated compressor, molecular sieve, and oxygen outlet | 1 |
| Power Cord | AC110V/220V/50/60Hz mains cable with safety connector | 1 |
| Oxygen Outlet Tubing | Standard medical-grade tubing for patient connection | 1 |
| User Manual | Multilingual operation and maintenance guide | 1 |
| Warranty Card | 2-year manufacturer warranty documentation | 1 |
Contact our sales team to discuss your oxygen therapy requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery options and comprehensive post-sale support.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
